ATTACH THE ELEMENTS TO THE EHU’s
PREPARE THE CPVC INNER-GUIDE TUBE & DIVERTER CONE

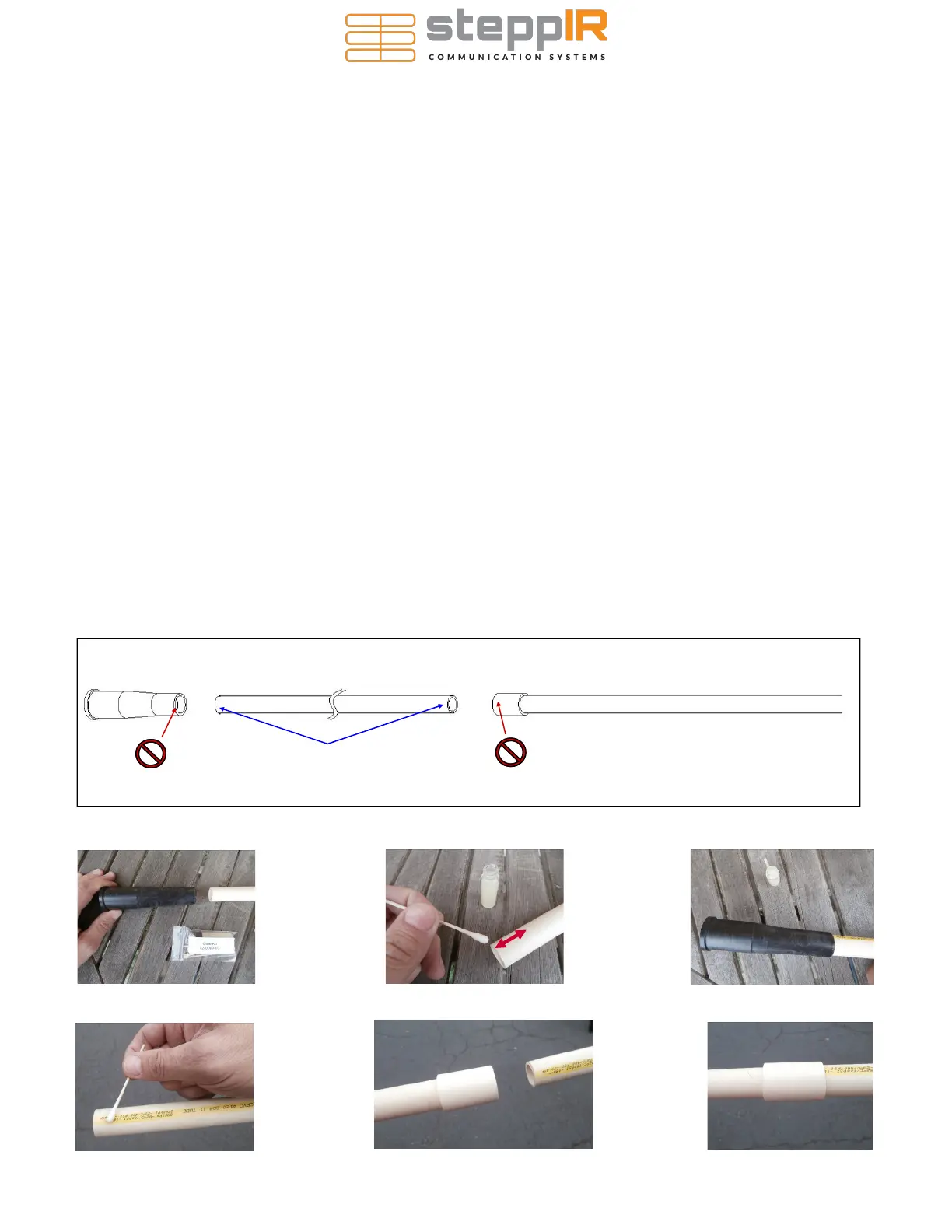

The 40/30 loops on the DB18E Yagi use a plastic tube and a diverter cone located inside the telescoping
pole, to guide the copper strip out of the EHU. Note that the straight elements do not use this inner tube,
only the 40/30 loops. The plastic tube is off-white and is made of CPVC. There are 3 pieces that make up
the guide tube assembly: The diverter cone (PN 10-1509-02), the 39-7/8” section of 3/4” CPVC with no cou-
pler (PN 70-2025-23) and the 49” section of 3/4” CPVC with a coupler attached to one end (PN 70-2025-13).
The guide tube is not needed on the return side of the loop. Figure 7.01 shows the three pieces in the as-
sembly.
The smaller diameter end of the diverter cone is glued to one end of the 39-7/8” CPVC tube as shown in fig-
ure 7.02 . Use the supplied glue and applicator as shown in figure 7.03. Apply the glue evenly around the
outside diameter of the tube. Be sure you get even coverage all the way around the tube. Cover about 3/4”
of an inch deep as shown in figure 7.03. Firmly push the 39-7/8” CPVC tube into the diverter cone end as
shown in figure 7.04. Let the glue dry at least 20 minutes before moving it.
Apply glue evenly around the outside diameter of the 39-7/8” CPVC tube as shown in figure 7.05. Apply ap-
proximately 3/4” deep as per prior step. Locate the 49” CPVC tube (PN 70-2025-13) with coupler, as
shown in figure 7.06. Push the 39-7/8” tube firmly into the coupler as shown in figure 7.07.
Repeat above instructions for remaining guide tube assembly’s (two per EHU, six total).
WARNING: Do not apply glue to the inner “female” portion of either the diverter cone or coupler. The glue
applied to the outside of the tube is sufficient to bond the two pieces, and will prevent potential for damag-
ing obstructions being formed by dried glue.
Diverter Cone
PN 10-1509-02
39-7/8” CPVC
PN 70-2025-23
49” CPVC
PN 70-2025-13
Apply glue ONLY on the
outside diameter of the
ends of the 39-7/8” pipe
NO
GLUE
NO
GLUE
NEVER use glue on the inside “female”
portion of the diverter cone or coupler
FIG. 7.01
FIG. 7.02
FIG. 7.04
FIG. 7.05
FIG. 7.03
FIG. 7.06
FIG. 7.07
3/4”
