41
HIGH WIND KIT
• Remove the vertical 1/4-20 bolt from the #2 splice.
• Drill out the hole with the included “N” (.320”) drill bit.

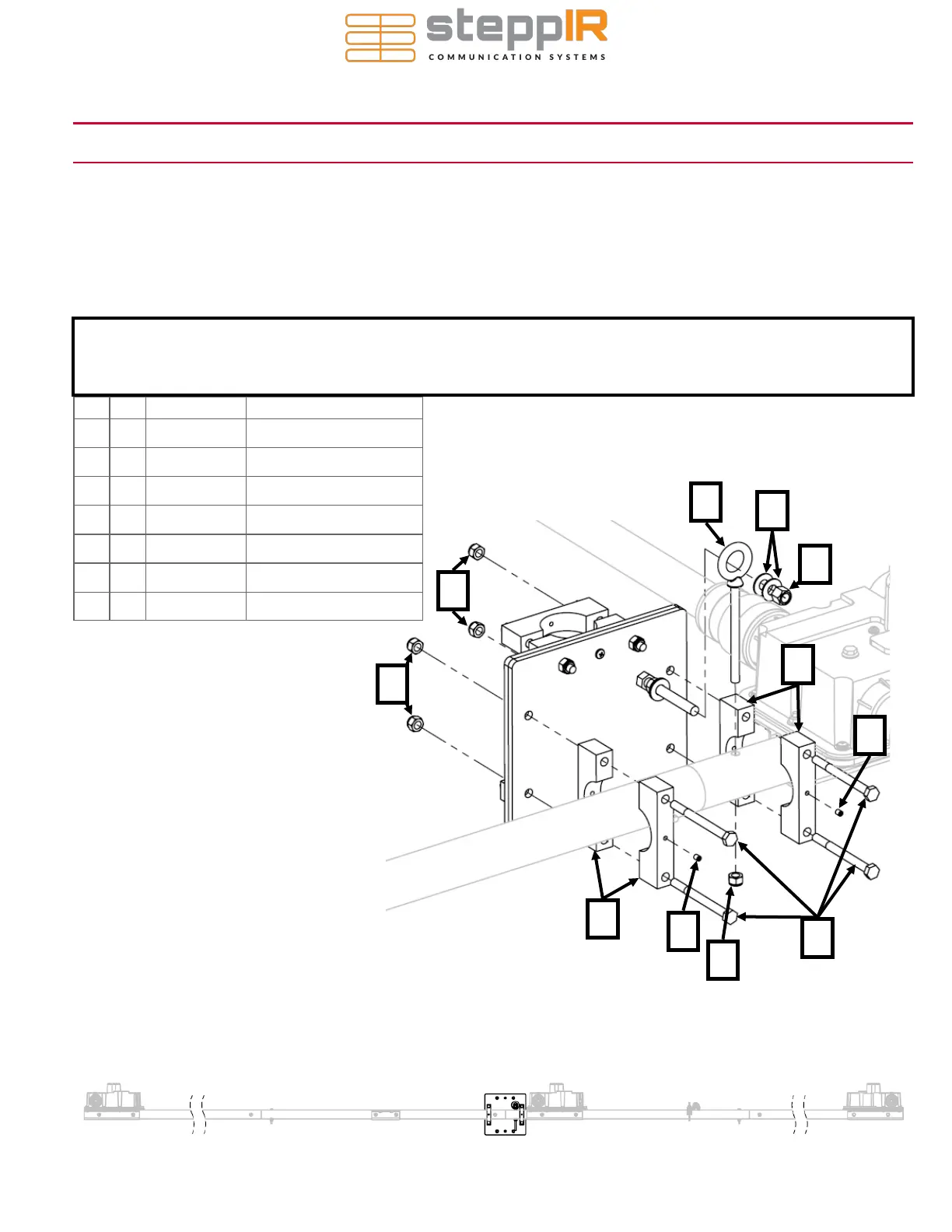

• Use the exploded view drawing below to install the mast plate.
• Adjust the two Nylock nuts on the EZ-Eye stud to make sure the boom is level.
• Tighten the Nylock nuts on the boom saddle clamps and EZ-Eye.
NOTE: The boom can be re-leveled if necessary by loosening the bolts on the boom saddle clamps
and then adjusting the two Nylock nuts that position the EZ-Eye. Be sure to tighten all nuts when fin-
ished.
1 2
3
4
A
A
E
B
C
C
D
D
G
C
F
KEY QTY Part Number Description
A 4 10-1601-03 Saddle, 1-3/4” x 3/4”
B 4 60-0065 Hex Bolt, 5/16” x 3-1/2”
C 5 60-0046 Nylock Nut, 5/16”
D 2 60-0112 Set Screw, 10-32 x 1/4”
E 1 60-0037-21 Eyebolt, 5/16" x 4"
F 2 60-0034 Washer, 3/8”
G 1 60-0046 Nylock Nut, 3/8”
