PRECAUCIONES
Bill counter with counterfeit detector
BILL-100
V0.3
0519N
Before using the product, please read the following instructions.
• To ensure proper operation it is advisable to clean the equipment once
a month.
• This appliance is NOT intended for use by persons
Different, unless they are adequately prepared and supervised.
This machine detects counterfeit banknotes by magnetic stripe.
Because Mexican banknotes lack this security element,
The machine will make an error, however, you can count the tickets if you deactivate
Detection by magnetic stripe.
Check the security measures of your country's tickets to avoid
Detection errors.
1. Feed Tray
2. Handle
3. Cover
4. Control Panel
5. Screen
6. Stacker lever
7. Stacker
8. Adjusting screw
9. External display port
10. Power socket
11. Fuse
12. Ignition switch
13. External display
14. Power cord
1. Working Mode Indicator
2. Counting screen
3. Batch View / Add
4. Type change button
detection
5. Button to select
6. Add button
7. Clear button
1. Select the type of detection: UV-MG or UV
2. Place the bills in the feed tray.
If a false ticket is detected, the count will stop, the
Will cause an error on the screen. Remove the ticket or press the RST button to resume
the count.
1. Connect the external display to the port.
2. Connect the power cable to the input
And a power outlet.
Turning on and selecting mode
1. Press the switch to turn on the meter. The UV and MG indicators will light on the screen;
Means that the equipment is in detection mode by ultraviolet light (UV) and magnetic stripe (MG)
2. If the tickets have no magnetic stripe, press the FNT button to select only UV detection.
3. Press FNT again to turn off counterfeit detection and use counting mode only.
The UV and MG indicators should be off.
CAUTIONS
IMPORTANT NOTE

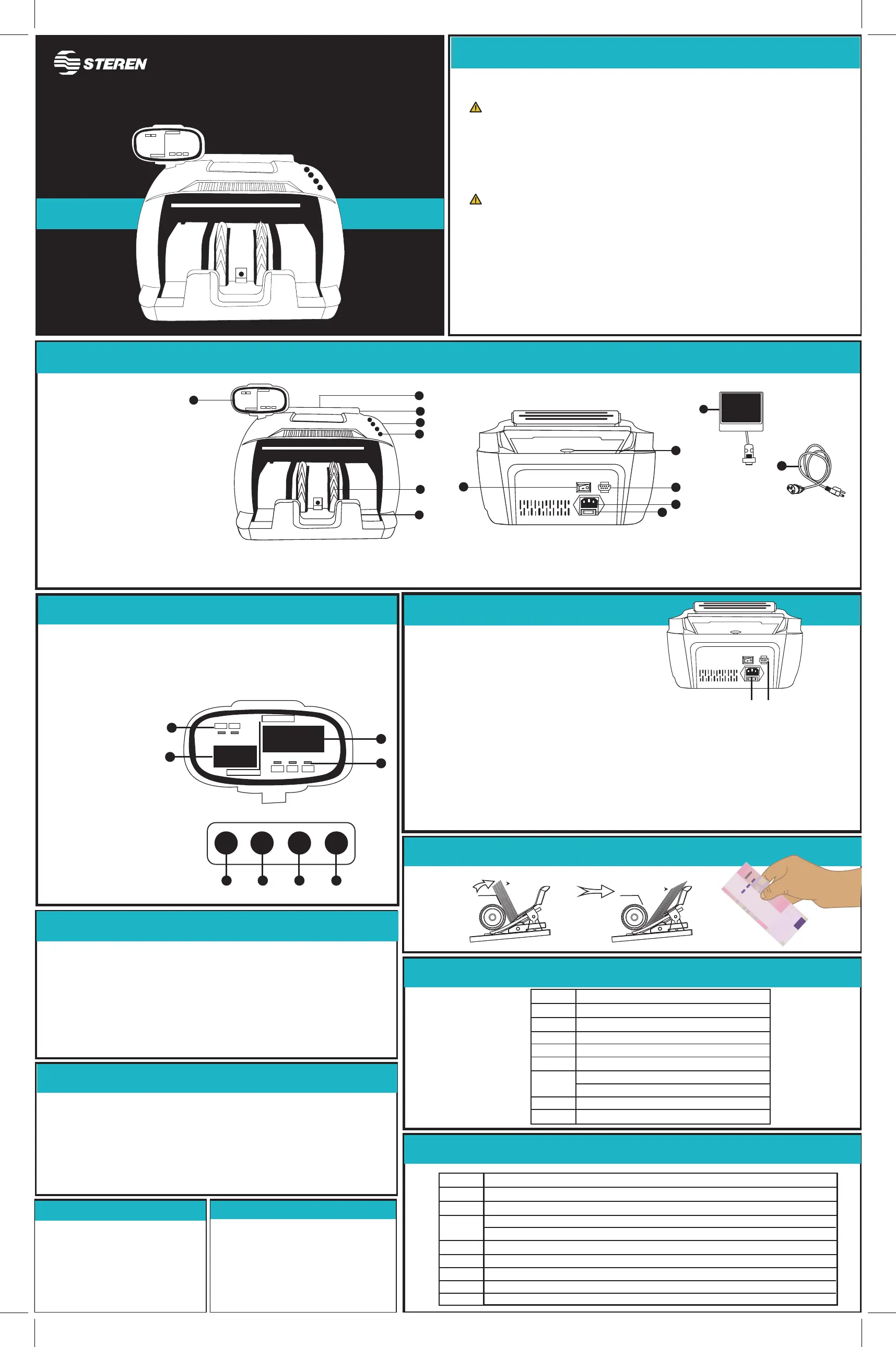

MACHINE STRUCTURE
SCREEN AND CONTROL PANEL
ERROR CODES
COUNTING AND DETECTION OF FALSE TICKETS
Proper way to place tickets
1. Select the mode of use: Counting and detection or just counting.
2. Press the PST button, then press ADD to select the number of tickets
Which will contain each group (1, 5, 10, 20, 50 or 100).
3. Place the bills in the feed tray.
4. Remove the bills from the receiving tray to continue with the next grouping.
COUNTING AND BONDING
Input: 110 V~ 60 Hz 40 W
Consumption: < 90 W/h
Stand by power consumption: < 3 W/h
Operating temperature: 0 - 40 °C
RH: < 90 % non condensed
BEFORE STARTING
..................
......................
UV MG
TOTAL QUANTITY
PRESET MEMORY
ADD
PRESET ALARM
8
9
10
11
12
..................
......................
UV MG
TOTAL QUANTITY
PRESET MEMORY
ADD
PRESET ALARM
1
2
5
6
7
3
4
13
14
FNT ADDPST RST
4 5 6 7
2
..................
......................
UV MG
TOTAL QUANTITY
PRESET MEMORY
ADD
PRESET ALARM
000
000
1
3
1
Banco de México
A
4
0
0
8
8
6
1
A
4
0
0
8
8
6
1
1
0
0
0
1000
M
ilP
es
o
s
12
Bills
Bills
E01
E02
E03
E04
E05
E10
E11
BF
CauseCode
The left sensor does not work or is dirty.
The right sensor does not work or is dirty.
The code sensor is dirty or loose.
The jump sensor is broken or dirty.
The output sensor is not working or dirty.
Ambient light is too strong
The sensitivity of UV light is too high.
The plastic button does not work.
Wheels that work without bills
ALARM CODES
SPECIFICATIONS
EE1
EE2
EE4
EE5
EE6
EE8
EE9
EEA
CauseCode
A false ticket was detected by UV.
A false ticket was detected by the magnetic stripe.
A broken note was detected.
Counter sensors are not working or dirty.
Two bills are being counted as one.
A ticket with the magnetic stripe was detected at a different location.
The ticket is smaller than 30 mm.
The bill is longer than 75 mm.
Folded notes were detected.
IMPORTED BY
ELECTRÓNICA STEREN S.A. DE C.V. Biólogo Maximino Martínez No. 3408,
San Salvador Xochimanca, Ciudad de México. 02870 RFC: EST850628-K51
STEREN PRODUCTO EMPACADO S.A. DE C.V. Autopista México-
Querétaro. Km 26.5 Sin número, Nave Industrial 3-A, Col. Lomas de
Boulevares, Tlalnepantla de Baz, Estado de México, C.P. 54020, RFC:
SPE-941215-H43
In the event that your product has a fault, go to the distribution center closest
to your home and if you have any questions or questions please call our
Customer Service Center, where we will gladly assist you in everything related
with your product Steren.
Customer Care Center
01 800 500 9000
