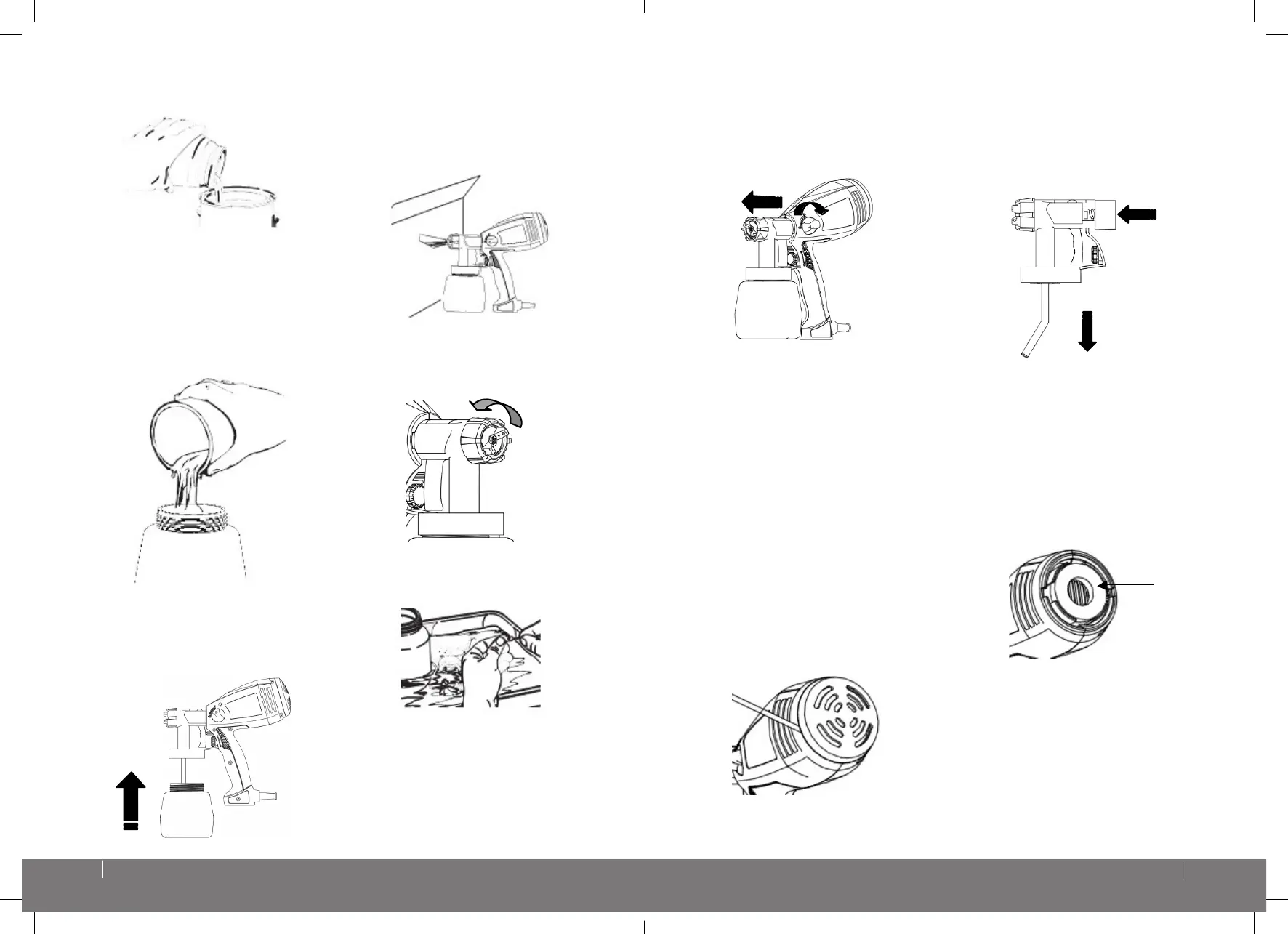

2. Unscrew the container.Empty any remaining
material back into the material container.
3. Pour a small amount of the appropriate clea-
ning solution into the cup (warm, soapy water
for latex materials; mineral spirits for oil-based
materials). Clean cup and properly dispose of
cleaning solution.
4. Refill the cup with NEW cleaning solution.
5. Attach the cup to the gun and plug in the
sprayer.
6. Spray the solution through the gun for two
seconds in a safe area. Spray again for two
seconds. Unplug the spray gun, and trigger the
spray gun so that the material inside the spray
gun flows back into the container.
7. Wipe the exterior of the cup and gun until clean.
8. Unscrew the nut and remove the air cap and
nozzle.
9. Clean the container, suction tube, air cap and
nozzle with a cleaning brush and the appropriate
cleaning solution.
Never clean nozzle or air holes in the spray
gun with sharp metal objects. Do not use sol-
vents or lubricants containing silicone.
10. Turn both knobs on both sides of the Air
Compressor Assembly to the “Unlock” position,
pull and separate the spray gun from the Air
Compressor Assembly.
11. (a) Clean the rear of the spray gun with the
appropriate cleaning solution.
(b) Turn the suction tube anti-clockwise and pull
the suction tube downward to disassemble it from
the spray gun. Then clean the suction tube with
the appropriate cleaning solution.
Attention! The Seal Ring (4) between Suction
Tube 1(3) and Suction Tube 2 (5) must be put
back into place after cleaning. Otherwise, some
paint in the container will be sucked into the air
duct and interfere with the function of the unit.
Maintenance
You should inspect the air filter in the Air
Compressor Assembly to see if it is exces-
sively dirty. If it is dirty, follow the steps below
to replace it.
1. Unplug the spray gun. Remove the filter cover
with a tool (such as a flat screw driver)
