– Introduction:
SX4 was designed to remotely control audio and video equipment. Its radio fre-
quency (RF) technology allows you to congure your equipment from up to 200m
away in open air (line-of-sight).
It transmits in FSK to reduce external interference. Its code is encrypted and pro-
tected by rolling code technology to prevent cloning.

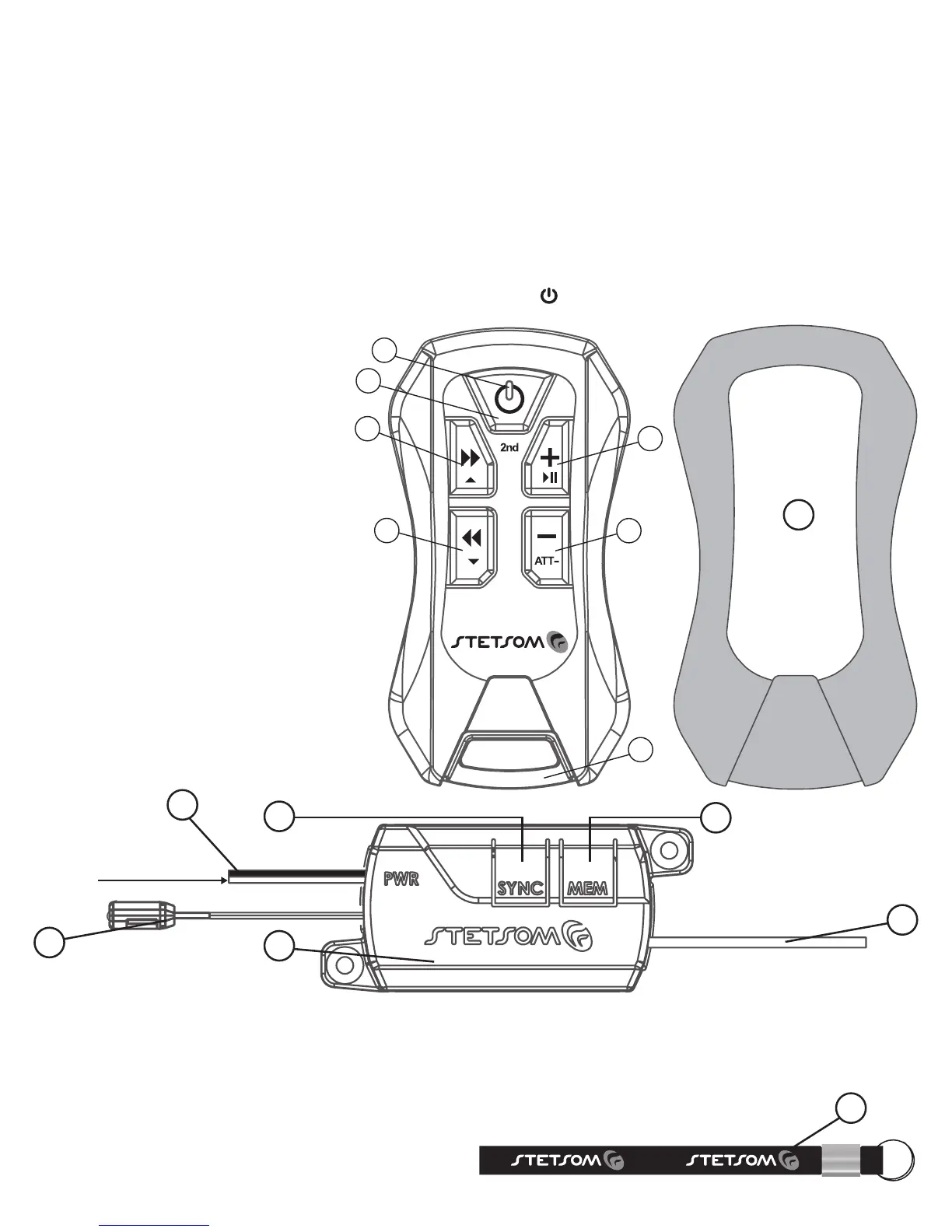

Description:
01 – Transmission indicator LED
02 – 2nd (Enables 2nd Function - Click) / Power ( – Press and Hold)
03 – Fast Forward ()
04 – Rewind ()
05 – Volume (+)
06 – Volume (–)
With the 2nd Function Enabled:
03 – Up Folder ()
04 – Down Folder ()
05 – Play/Pause( )
06 – Attenuation (ATT–)
07 – Ring for neck lanyard
08 – Protective Holster
09 – LED indicator
10 – Synchronization key (SYNC/RESET)
11 – Memory Key (MEM)
12 – Antenna
13 – Power cable (50cm)
14 – Infrared transmitter (3m)
15 – Neck lanyard
GND (PRETO / BLACK)+12V (PRETO e BRANCO
BLACK / WHITE)
01
02
03
04
05
06
07
08
15
09
14
13
12
10
11
