INSTALL 1
CAPACITOR
10nF capacitor (8)
#7331
WIMA
0,01
100-

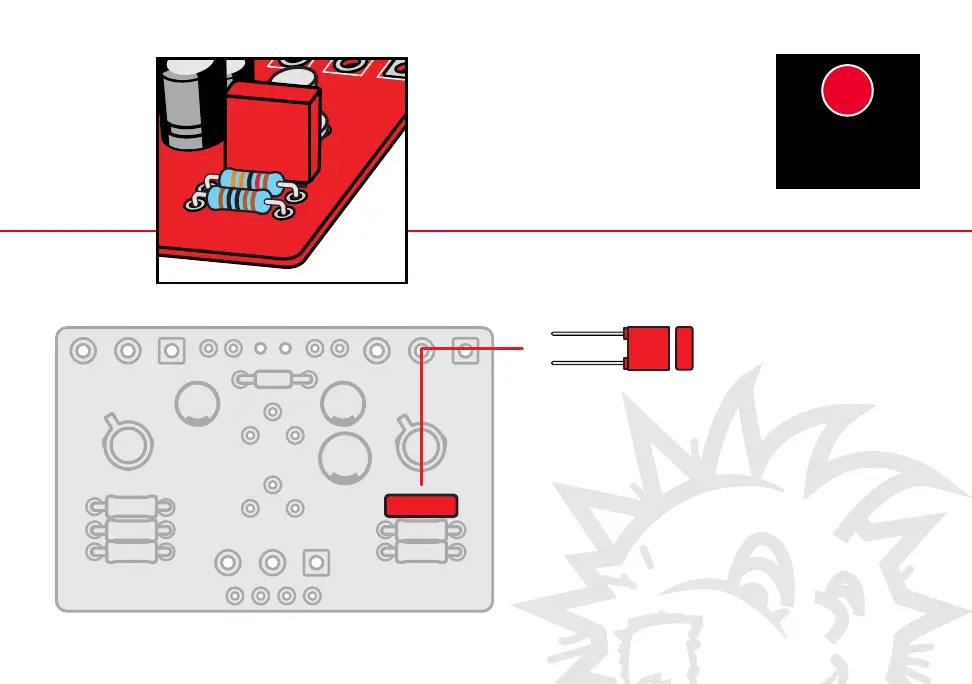

The remaining capacitor below is not
polarized. However, best practice is to
solder this cap in place with text facing
the bottom of the PCB.
C3
R3
R2R1
R10
R4
D1
CLEAN
BIAS
C3
Q2
C1 C2
C6
Q1
503
502
R1
R10
R4
D1
CLEAN
BIAS
Q2
C1
C2
C6
Q1
50 3
50 2
1K resistor (1) #7357
Brown Black Black Brown Brown
100K resistor (1) #7365
Orange Orange Black Red Brown
33K resistor (1) #7409
Yellow Violet Black Brown Brown
4.7K resistor (1) #7359
Yellow Violet Black Black Brown
470Ω resistor (1) #7355
1N5817 rectier diode (1)
#7522
22µF capacitor (1)
#7311
22uF
1µF capacitor (1)
#7337
1uF
47µF capacitor (1)
#7478
47uF
10nF capacitor (8)
#7331
