StewMac SUN FUZZ - Page 18

18
R3
R2R1
R10
R4
D1
CLEAN
BIAS
C3
Q2
C1
C2
C6
Q1
503
502
WD 07
503
502
5K trim pot (1)
#100738
502
50K trim pot (1)
#100739
503
About the trim pots: When you are nished with the build, the two BC108 transistors will need to be
dialed in using these internal adjustable trim pots. One of them is labeled “clean” and the other “bias”.
INSTALL 2
TRIM POTS
66
The internal trim pots featured on the Sun Fuzz allow the user the ne tune the overall
“feel” the pedal will have when engaged. The Clean trim pot adjusts the amount of fuzz
in the signal. The Bias trim pot adjusts the amount of voltage being routed to the transistors.
Both controls have a signicant impact on the sound.

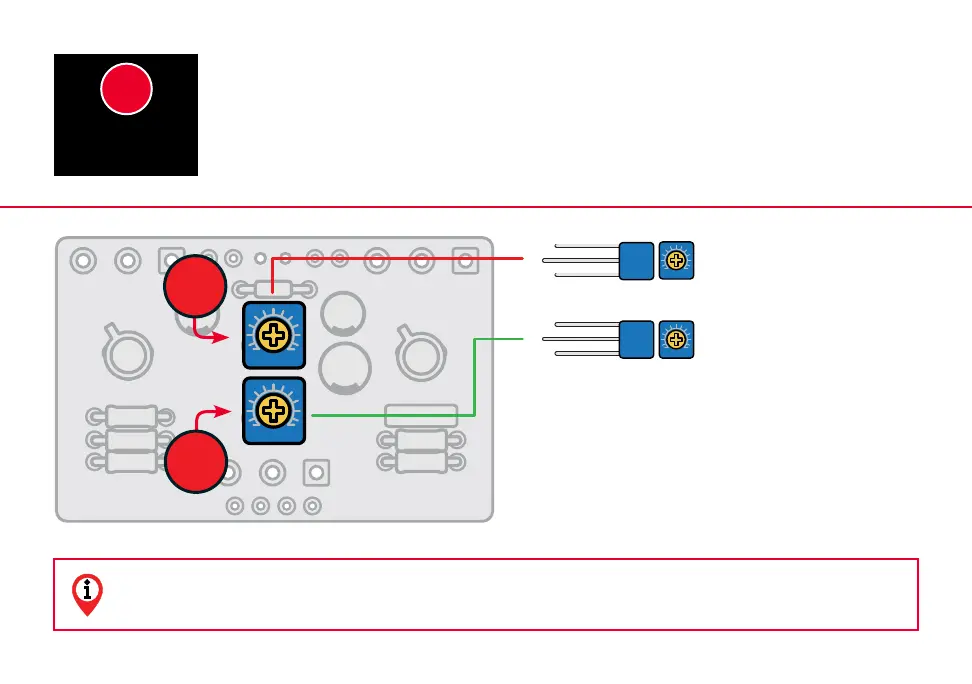

Carefully insert the legs of the trim pots into the
PCB and solder in place on the back of the PCB.
Use a phillips head screwdriver to adjust the high
end frequency. Turn it to the right for more high
end, to the left to remove high end.
CLEAN
BIAS
