StewMac’s PCB Holder (#0500) is perfect for soldering tiny
parts and wires. With two free hands and the ability to
rotate the board, you’ll easily nd the perfect angle to work.
R3
R2R1
R10
R4
D1
CLEAN
BIAS
C3
Q2
C1
C2
C6
Q1
503
502
WD 07

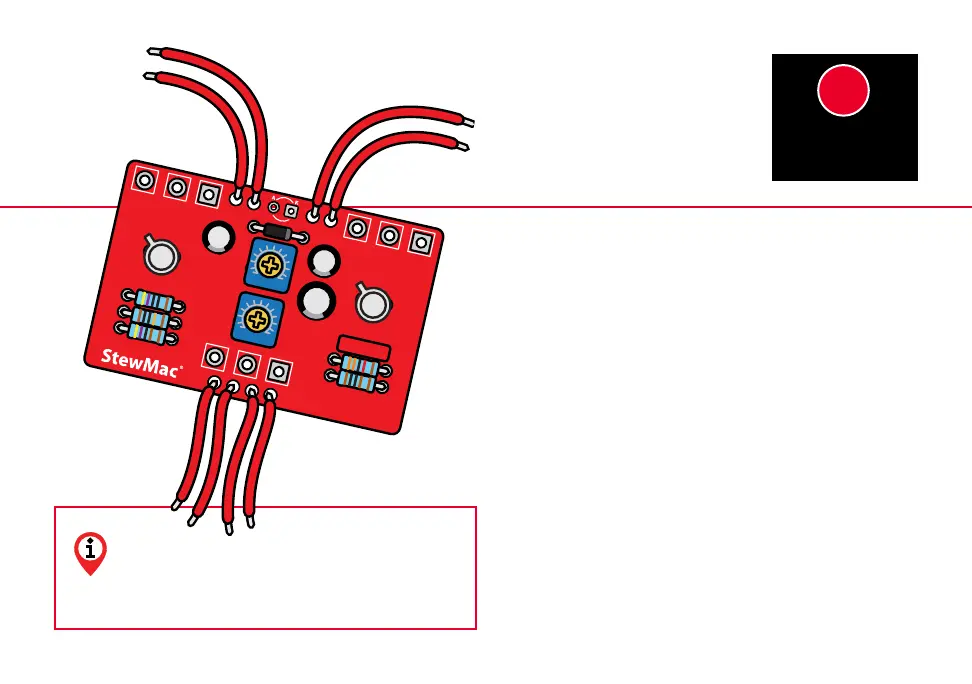

This kit comes with 30" of 22 guage lead wire. Using
the correct 22AWG slot on your wire stripper cut the
wire into eight,
2.5" sections. Strip around 3/32" o
both ends of all wires.
The rst four
2.5” sections will attach the in, out and
DC jacks at the top of the PCB and the other four
2.5”
sections will attach the breakout board to the bottom
center of the PCB.
Insert the stripped ends of the wires into the holes
on the component side of the PCB and solder them
on the back.
77
INSTALL 8
LEAD WIRES
