22
R3
R2R1
R10
R4
D1
CLEAN
BIAS
C3
Q2
C1
C2
C6
503
502
WD 10-2

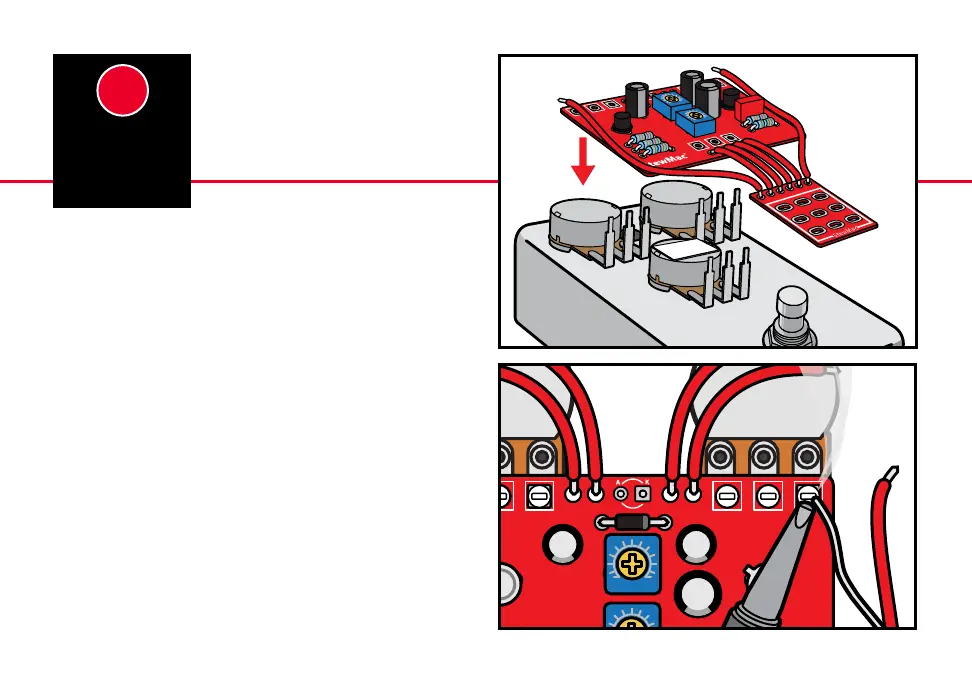

Temporarily attaching the pots and footswitch to
the pedal housing will help to keep things steady for
soldering them to the PCB.
Lay the PCB/breakout board component side up over
the pots. The shaft of the foot switch will help to
support the PCB. Manuever the lugs of the pots and the
PCB until the lugs of the pots slip into their appropriate
holes in the PCB. Once all the lugs have popped
through the board, solder them in place.
Remove the nuts and washers on the pots to free the
PCB group of parts from the housing. Reattach the nuts
and washers to pots and switch.
SOLDER
POTS
TO PCB
1010
To Next Page
