21
TONE
(B5K)
FUZZ
(B1K)
VOLUME
(A250K)

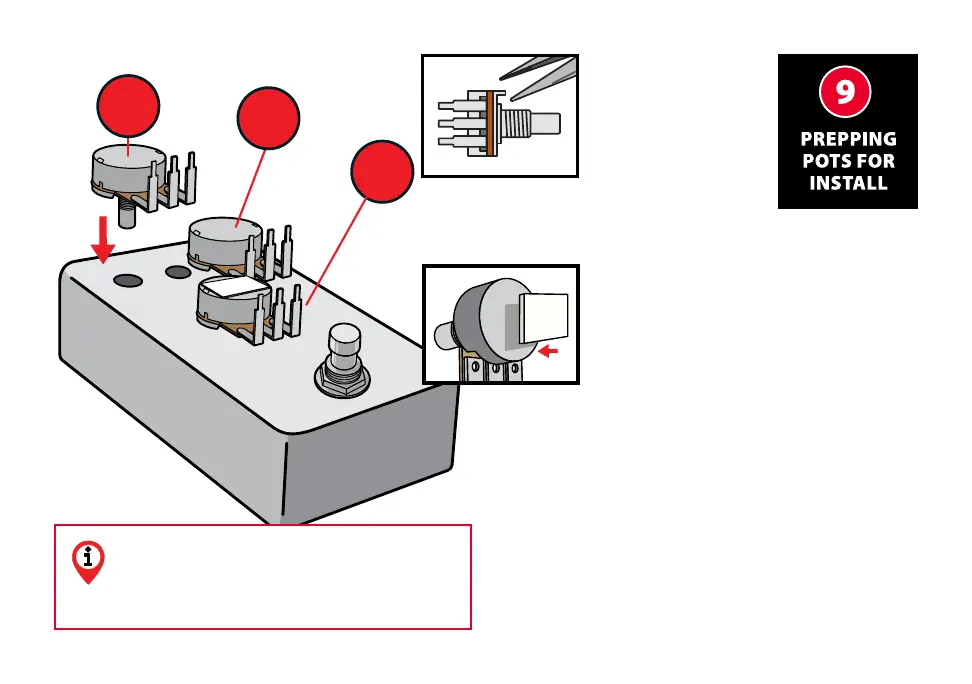

Locate the three pots.
If any pot has an index
pin protruding from it,
break it o with a pair
of needle nose pliers.
This will allow the pot to mount
ush in the housing.
Before mounting the tone pot to the circuit
board, place one section of the included
double foam adhesive tape squares on the
back of the tone pot to insulate it from the
mounted electronic components.
Remove the nuts and washers from the three pots and
insert their threaded shafts into their coordinating
holes on the OUTSIDE of the pedal housing. Reattach
nuts and washers inside housing and lightly tighten.
Remove the nut and washer from the footswitch and
insert threaded shaft into the footswitch hole from
INSIDE the housing. Add nut and washer to footswitch
and thread only a few threads .
Protect your painted housing by laying a piece of paper or
light cardboard with holes in it for the pots and footswitch
on the housing before temporarily attaching the components.
