28
SLEEVE
TIP
LUG
SLEEVE
LUG
TIP
rotate freely. You may need to rotate the jack to provide
easier access to setting the solder joints.
Solder the left wire at the top of the board to the output
jack lug that corresponds with the sleeve. The sleeve lug
should be the one closest to the DC jack.
Solder the 4" wire from the right side of the breakout
board to the lug of the output jack that corresponds
with the tip. The tip lug should be the one closest to the
outside wall of the enclosure.

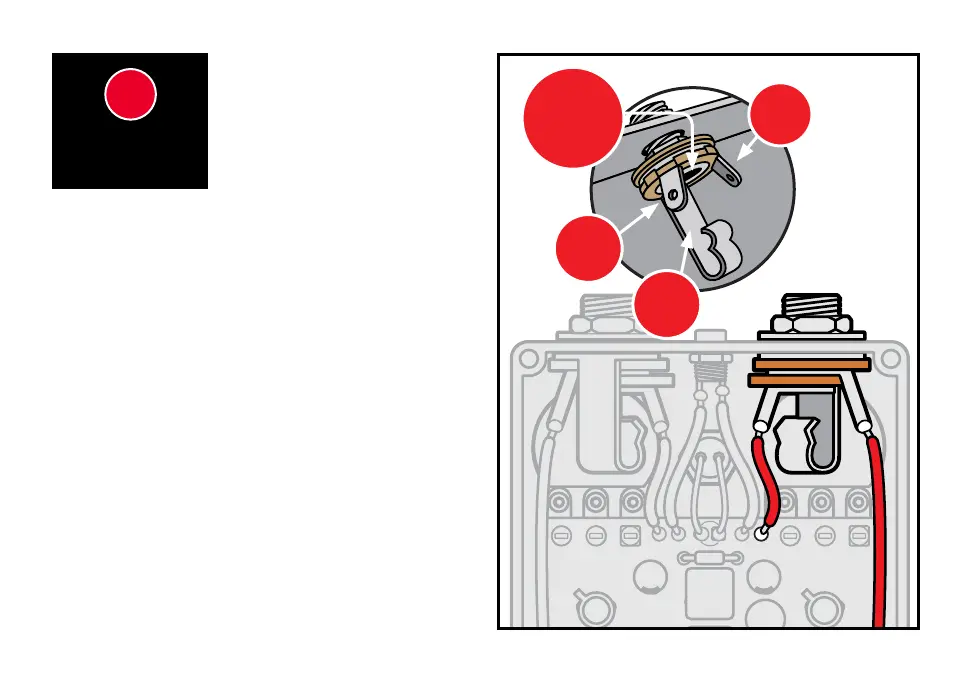

Once the solder has cooled, orient the jack as shown in
the diagram, make sure none of the connections on the
jack are shorting to any other components, and tighten
the nut on the jack.
INSTALL THE
OUTPUT JACK
1616
Insert the output jack into the
right side of the housing with
the tip facing down, as shown
in the diagram. Add the washer
and thread the nut on to the
shaft enough so that the pot can
To Next Page
