stex S25U - 3-13 Display Console Assembly (#12-2)

< 16 >

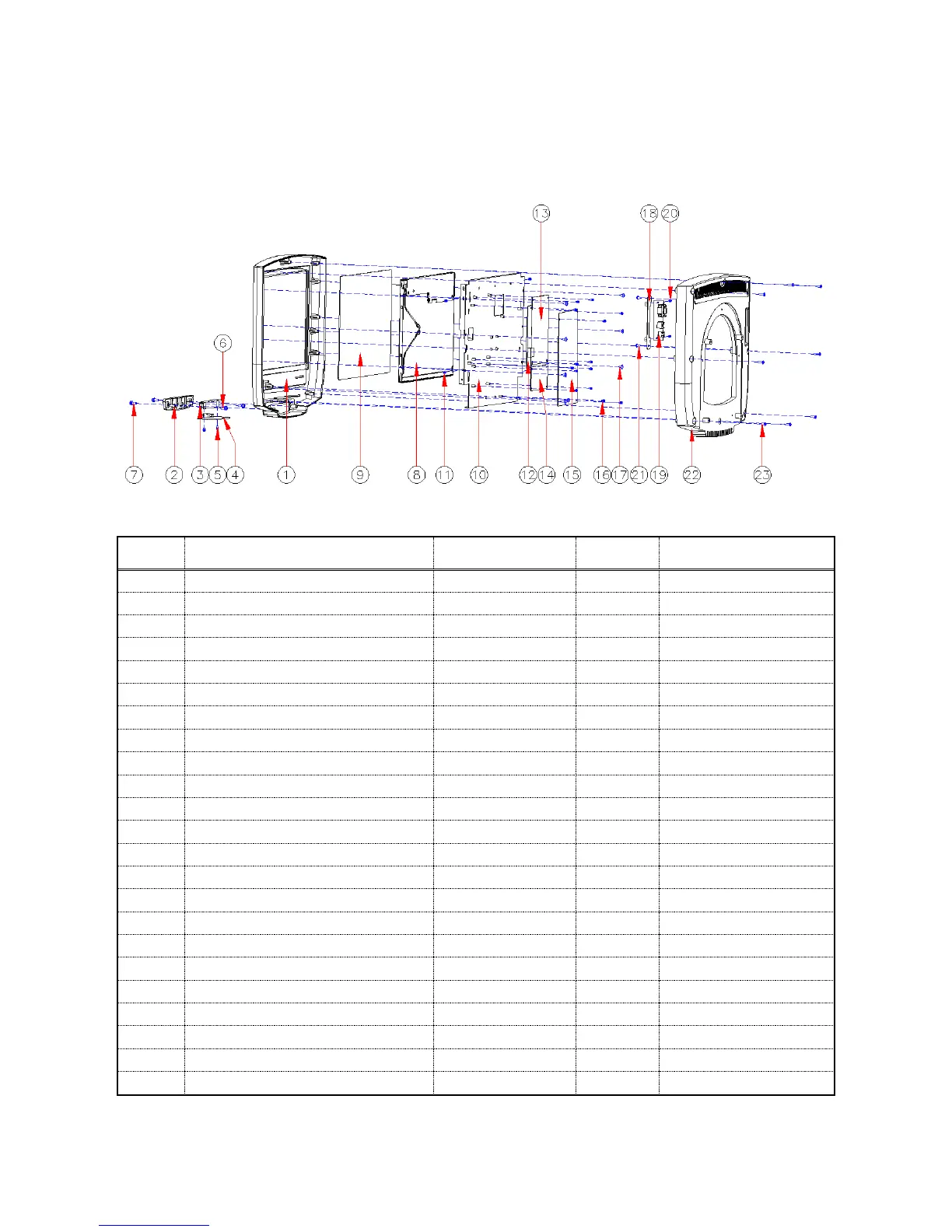

3-13 Display console assembly (#12-2) – S25UX
3-13 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Console front cover 03
301085
1 ea
2
Mold_ Front board cover 0002
201066
1 ea
3
BRK Front board
301103
1 ea
4
Multi board
201126
1 ea
5
Machine pan head
300057
2 ea
M4 x8L (SEMS)
6
Machine pan head
300040
2 ea
M5 x 12L (SEMS)
7
Tapping pan head
300071
2 ea
M5 x 10L
8
15” LCD Panel
301629
1 ea
9
15” LCD Guide panel
300328
1 ea
Acryl
10
Ass’y LCD Panel BRK
300487
1 ea
11
Machine pan head
300042
4 ea
M3 x 6L(SEMS)
12
LCD Inverter board
300335
1 ea
13
Interface board
201040
1 ea
14
Joint board
201041
1 ea
15
Scaler board
300333
1 ea
16
Machine pan head
300042
14 ea
M3 x 6L(SEMS)
17
Tapping truss head
300080
8 ea
M4 x 8L
18
BRK Comm board
301105
1 ea
19
Communication board
201047
1 ea
20
Machine pan head
300051
2 ea
M4 x 8L (SEMS)
21
Tapping truss head
300080
2 ea
M4 x 8L
22
Mold_ Console middle cover
301104
1 ea
23
Machine pan head
300040
8 ea
M5 x 12L (SEMS)
