ARC1 Mini Mullion reader
MA1 OEM Module
Installation instructions
Lecteur Etroit ARC1
Module OEM MA1
Notice d’installation
Lector Estrecho ARC1
Módulo OEM MA1
Procedimiento de instalación
conforme con
NOM-024 -SCFI-2013

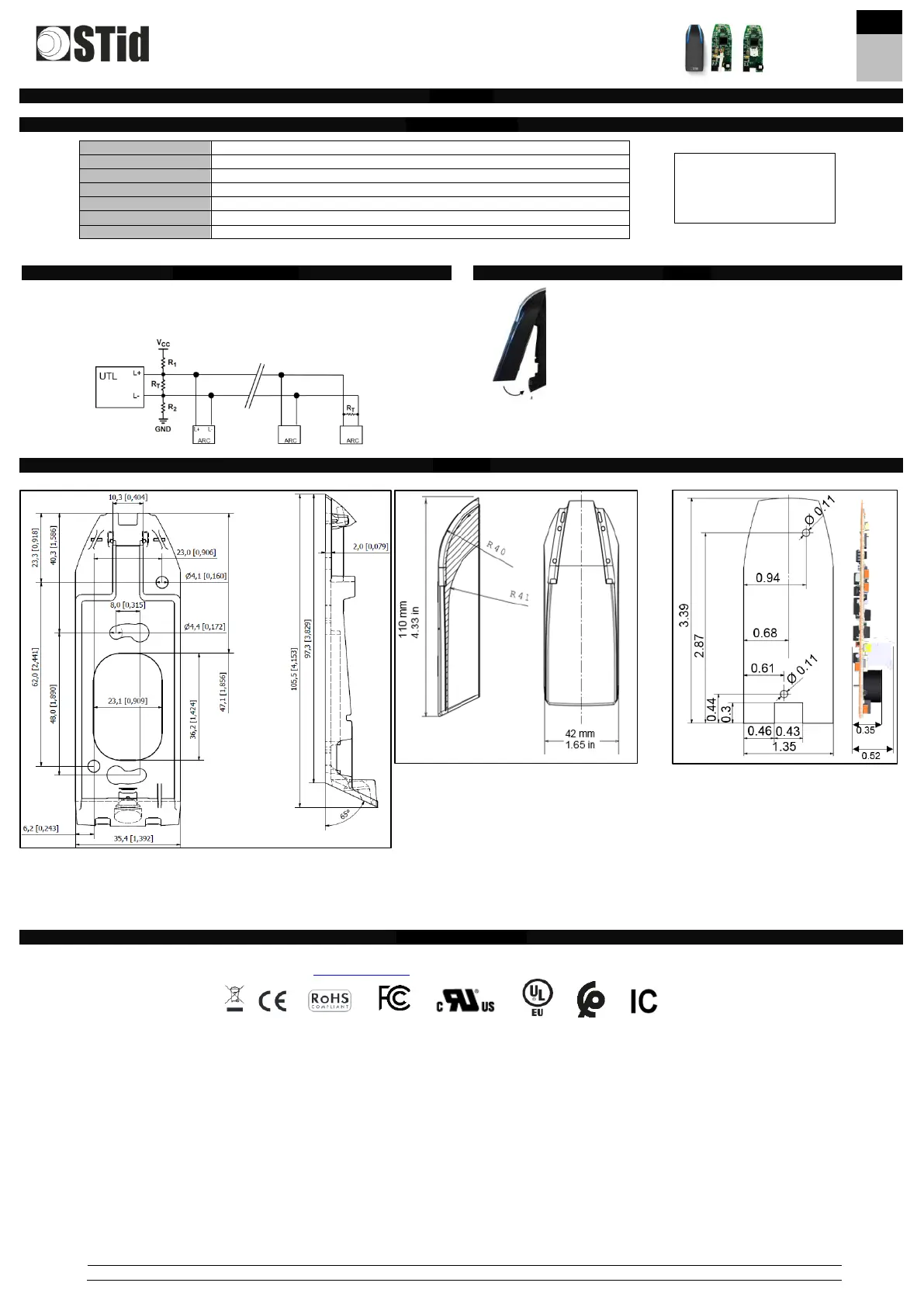

© STid - 20 PA des Pradeaux FR13850 Gréasque - NI1110A10- Page 2 sur 6 - Ed. 06/04/2022
STid reserves the right to make change without notice, for the purpose of product improvement.
TTL pull-ups
For data signals, 10k pull-up resistors are connected internally to V
in
(power supply voltage) for optimal wiring distances.
RS485 communication
Wiring resistors R1 and R2 use extended features of the RS485 bus: FAIL-
SAFE (see RS485-AN-960).
R1 & R2: 1.5 kΩ resistor not supplied.
R
T
: 120 Ω end-of-line resistor supplied
- Pass the cables through the hole in the base.
- Screw the base in its final location.
- Connect the reader.
- Test the readings and communication.
- Place the reader on the base (clip the top part and then
pivot it down).
- Lock the reader with the provided screw using the
specific tool.
Dimensions
Smart mounting plate ARC1/ARC1S MA1/MA1S
General tolerance following ISO NFT 58-000 standard.
Declaration of compliance
STid declares that the ARC1-XY reader is compliant to the essential requirements of the Directives RED 2014/53/EU, RoHS 2011/65/EU and Delegated directive.
A copy of our declaration is available on request from qualite@stid.com.
This device complies with part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation
NOTE: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such
modifications could void the user’s authority to operate the equipment.
This device complies with the safety requirements for RF exposure in accordance with RSS-102 issue 5 for conditions of use and with §1.1307(b),
2.1091 and 2.1093 of the FCC rules Title 47 CFR Ch. I.
The maximum magnetic field level of the device is:
▪ 7.5 dBµA/m (at 10 meters) for 13.56 MHz frequency.
▪ 4 dBm for 2.4 GHz frequency.
9600, 19200, 38400, 57600, 115200 bauds
ARC R & S: 9600; ARC W: 38400(SSCP
®
), 9600(OSDP
TM
)
Default broadcast address 00h
More details about
reader communication
are available in the
protocol specification
