INSTALLATION
Installation
30 | DHB-E LCD www.stiebel-eltron.com

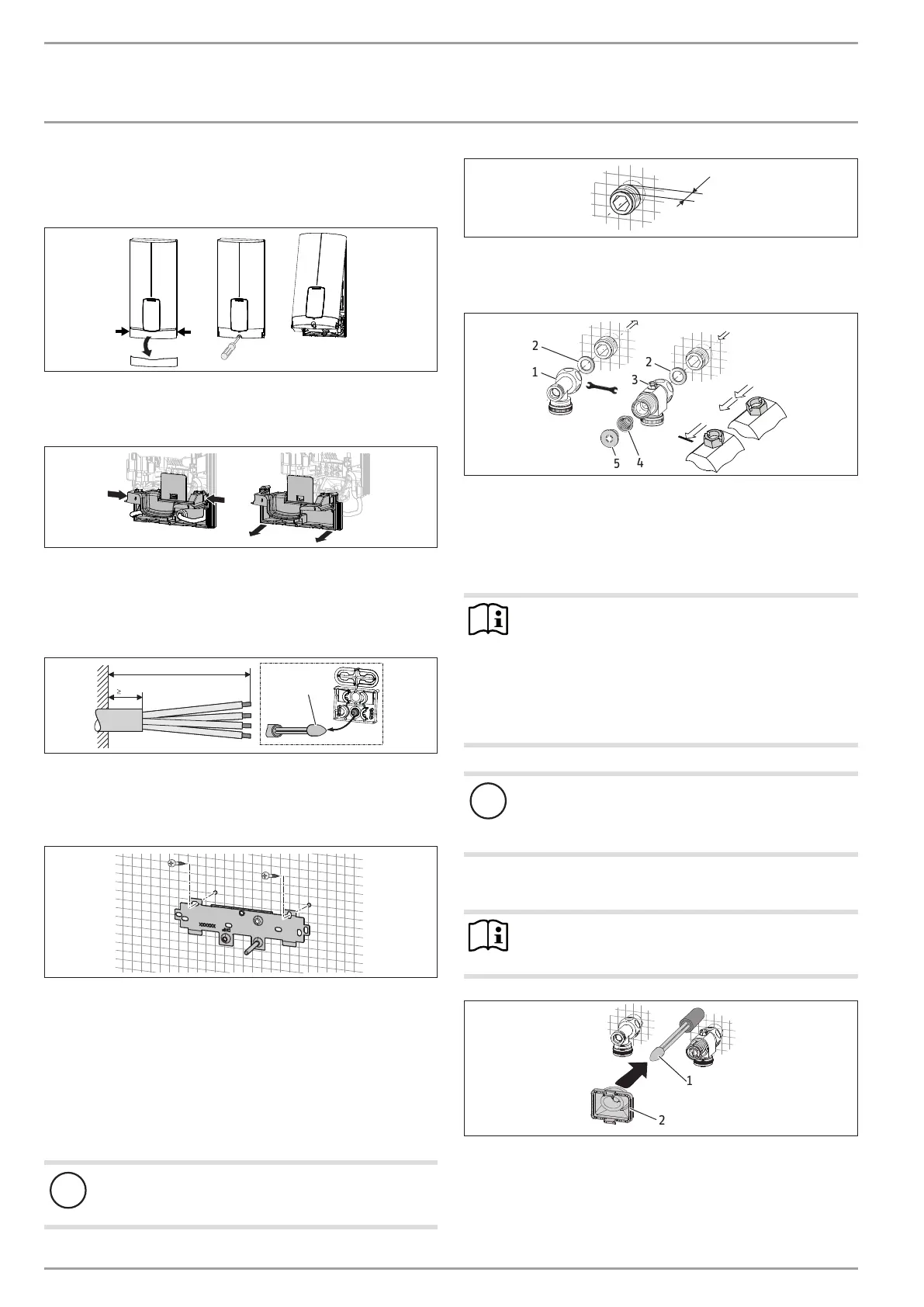

10.1 Standard installation
Opening the appliance
D0000053271
 Open the appliance by holding the fascia at the side and pull-
ing forwards away from the appliance cover. Undo the screw.
Pivot open the appliance cover.
D0000053272
 Remove the back panel by pressing the two locking tabs and
pulling the lower section of the back panel forwards.
Preparing the power cable on unfinished walls, for connection
from below
160
30
D0000053273
1
1 Cable entry installation aid
 Prepare the power cable.
Fitting the wall mounting bracket
D0000059694
 Mark out the holes for drilling using the installation tem-
plate. If the appliance is to be installed on finished walls, also
mark out the fixing hole in the lower section of the template.
 Drill the holes and secure the wall mounting bracket at 2
points using suitable fixing materials (screws and rawl plugs
are not part of the standard delivery).
 Fit the wall mounting bracket.
Installing the twin connectors
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
12
D0000053319
 Seal and insert the twin connectors.
Making the water connection
5 Nm
24
D0000050947
1
4
5
2
3
2
1 DHW with tee
2 Gasket
3 Cold water with 3-way ball shut-off valve
4 Strainer
5 Flow limiter or plastic profile washer (see chapter "Installa-
tion/ Water installation/ Flow rate")
Note
A second flow limiter is provided with the DHB-E 18/21/24
LCD. Install the appropriate flow limiter for output of the
appliance (see "Flow rate regulator" in chapter "Installa-
tion/ Specification/ Data table"):
4.0l/min = pink
7.5l/min = blue
8.5l/min = green
!
Material losses
The strainer must be fitted for the appliance to function.
 When replacing an appliance, check whether the
strainer is installed.
Installing the appliance
Note
If you are installing the appliance with flexible pipe con-
nections, also secure the back panel with a screw.
D0000053291
1
2
1 Cable entry installation aid
2 Cable grommet
Use the installation aid for easier wiring access through the cable
grommet (see plastic parts set supplied).
 Remove the cable grommet from the back panel.
