INSTALLATION
Installation
ENGLISH
www.stiebel-eltron.com
DHB-E LCD | 10

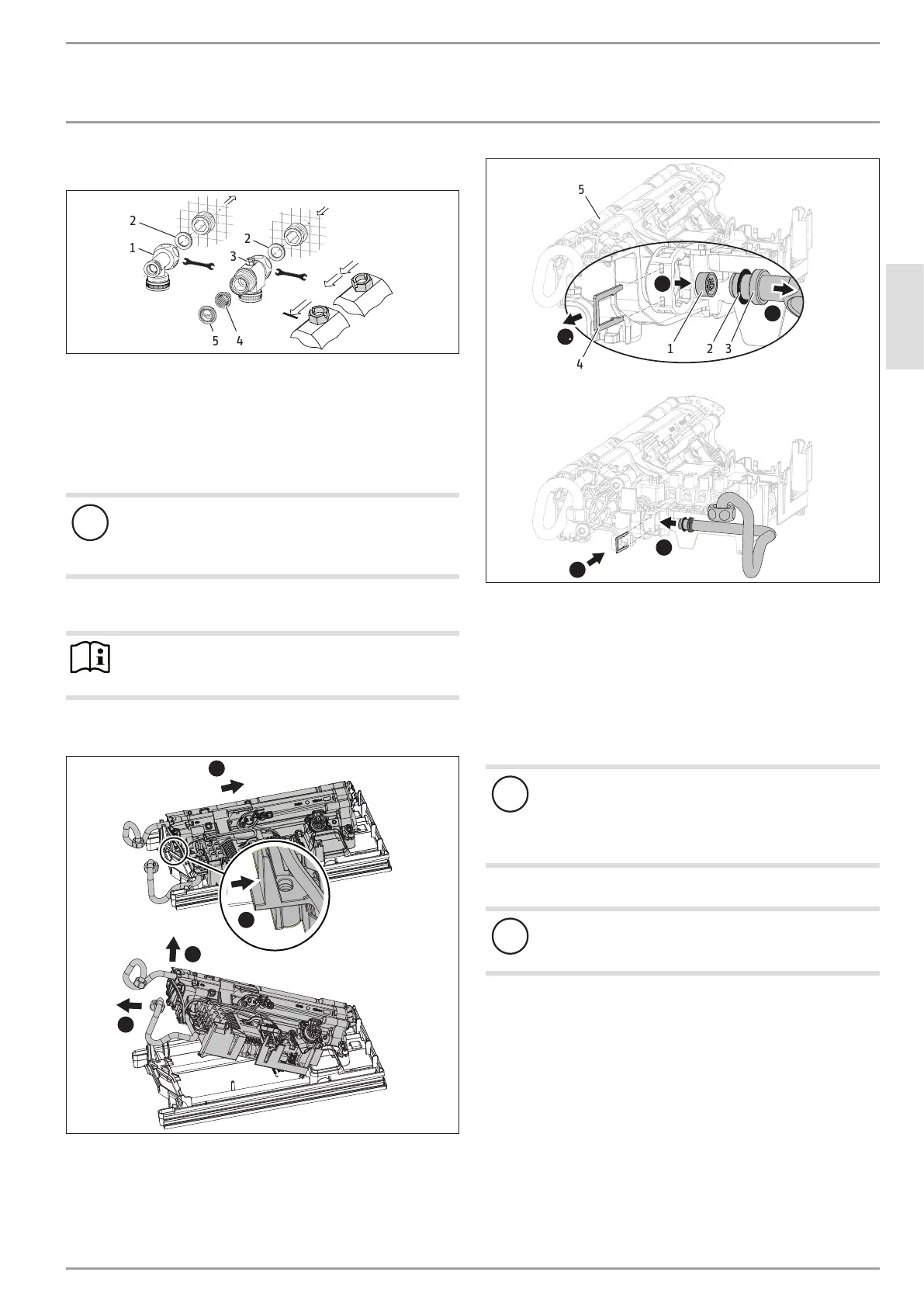

Making the water connection
5 Nm
24
5 Nm
24
D0000085349
4
1
5
2
3
2
1 DHW with tee
2 Gasket
3 Cold water with 3-way ball shut-off valve
4 Strainer
5 Plastic profile washer
f Secure the tee and 3-way ball shut-off valve, each with a flat
gasket, to the twin nipples.
!
Material losses
The strainer must be fitted for the appliance to function.
f When replacing an appliance, check whether the
strainer is installed.
Removing the flow limiter
Note
If you are using a thermostatic valve, you must not re-
move the flow limiter.
If the flow rate is too low, remove the flow limiter. To do this,
remove the function module from the appliance back panel.
4.
3.
1.
D0000085494
f Release the locking hook.
f Push the function module in the appliance back panel slightly
towards the back.
f Remove the function module from the appliance back panel
by pulling it slightly forwards and lifting it off.
D0000084719
4.
5.
2.
3.
1.
5
1 2 3
4
1 Flow limiter
2 O-ring
3 Cold water pipe bend with recess for locking clip
4 Locking clip
5 Heater
f Remove the cold water pipe bend and the O-ring.
f Remove the flow limiter from the cold water inlet of the heat-
er using a pointed object or suitable pliers.
f Refit the cold water pipe bend and the O-ring.
!
Material losses
The O-ring must be fitted to prevent the appliance from
leaking.
f As part of installation, check that the O-ring is in
place.
f Secure the cold water pipe bend with the locking clip.
!
Material losses
Ensure that the locking clip is located behind the recess
in the pipe bend and fixes the bend in position.
f Mount the function module in reverse order in the appliance
back panel until the function module clicks into place.
