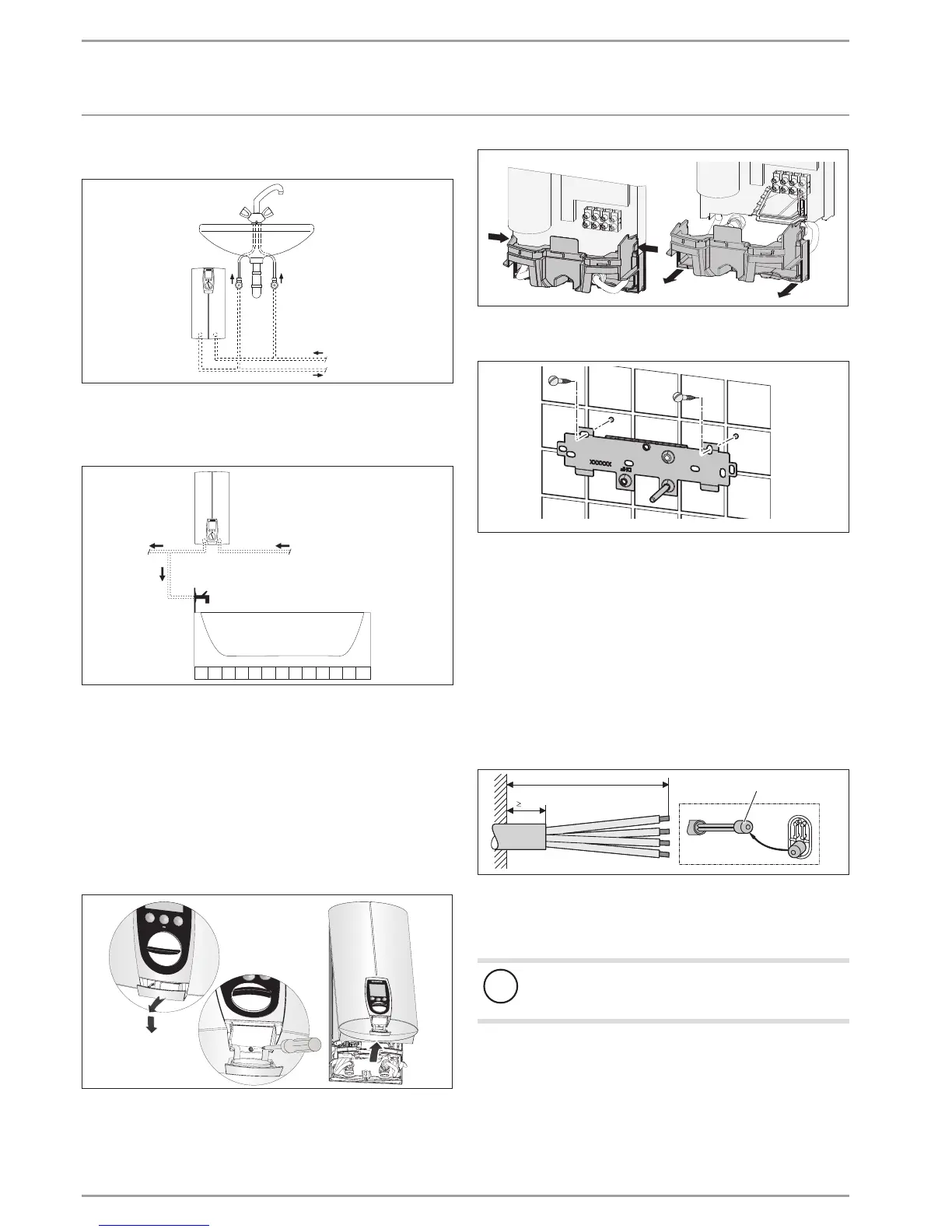

10 | DHE AU www.stiebel-eltron.com
INSTALLATION
Installation
Undersink installation
D0000034274
1
2
1 Cold water inlet
2 DHW outlet
Oversink installation
D0000034275
2
1
1 Cold water inlet
2 DHW outlet
10. Installation
10.1 Standard installation
- Electrical connection in the lower section of the appliance for
installation on unfinished walls
- Water connection for installation on finished walls
For further installation options, see chapter "Installation options".
26�02�02�0543
Open the appliance.
26�02�02�1101
Remove the back panel by pressing the two locking hooks
and pulling the lower part of the back panel forwards.
26�02�02�0810�
Mount the wall mounting bracket.
Align the installation template based on the existing electrical
connection when marking out the drill holes (wall mounting and
lower back panel).
If you want to adapt the existing water connections, take the di-
mensions from the drawing when marking out the drill holes; see
chapter "Specification/ Dimensions and connections". In this case,
check beforehand that the electrical connection lies within one of
the areas marked on the installation template.
Drill the holes and secure the mounting bracket with
2screws and 2rawl plugs (screws and rawl plugs are not
part of the standard delivery).
160
30
1
26�02�02�0824
1 Installation aid
Prepare the power cable.
Preparing the water connection
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
