Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
2 Frame and Covers
Page
22

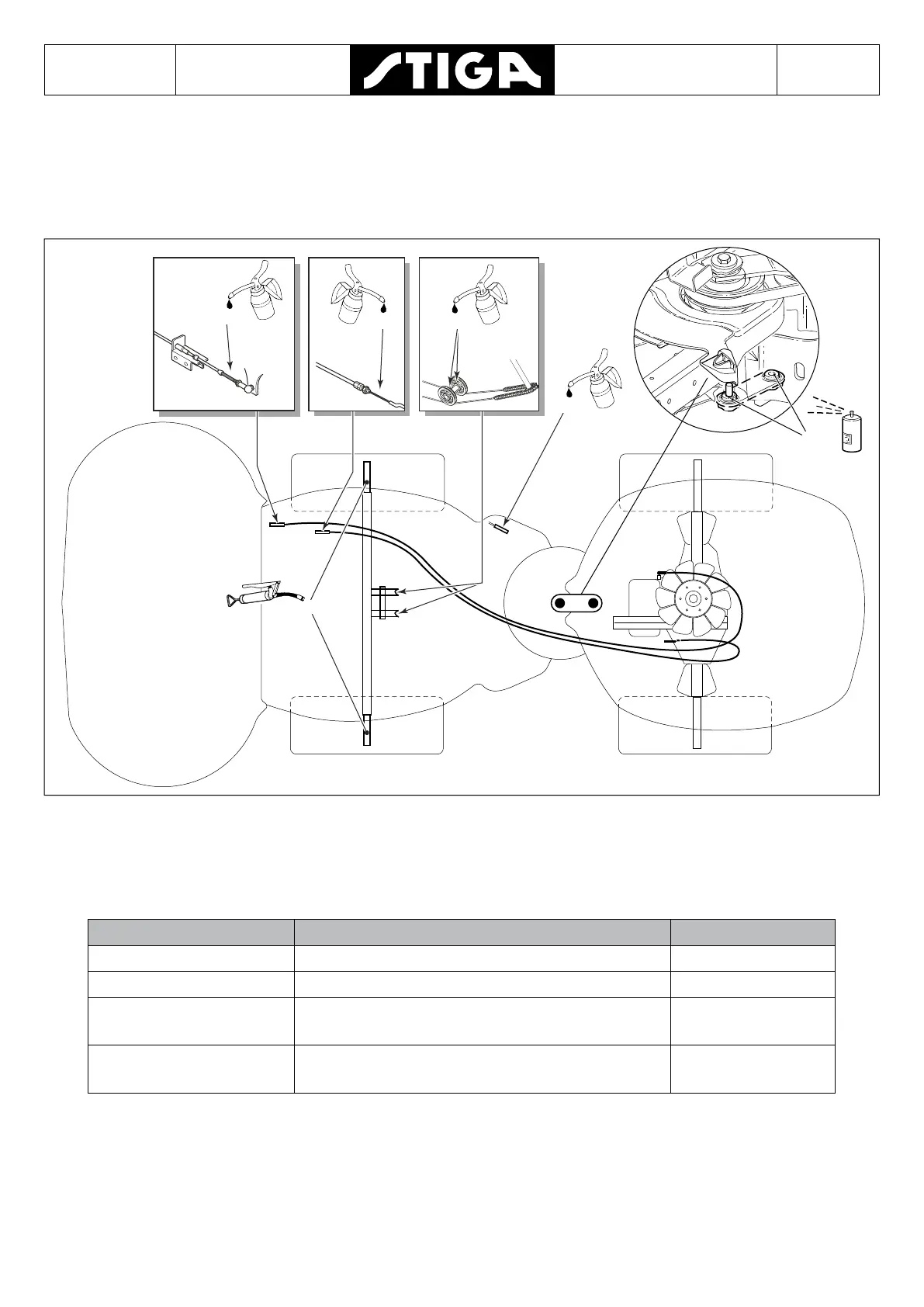

2.3 Lubrication
All lubrication points in accordance with the table below must be lubricated every 50 hours
of operation as well as after every wash.
View from the top
23
3
4
4
1
Object Action Points
Centre point Lubricate with oil on the centre point. 1
Steering pulleys Lubricate the pulley hubs with an oil can. 2
Control cables
Lubricate the cable ends with an oil can
when each control is activated.
3
Front wheel axle
Remove the wheels and implement
mounts. Lubricate the axle with grease.
4
