AT LEAST TWO ADULTS ARE NEEDED TO
COMPLETE THE REMAINDER OF THIS
ASSEMBLY!
CAUTION

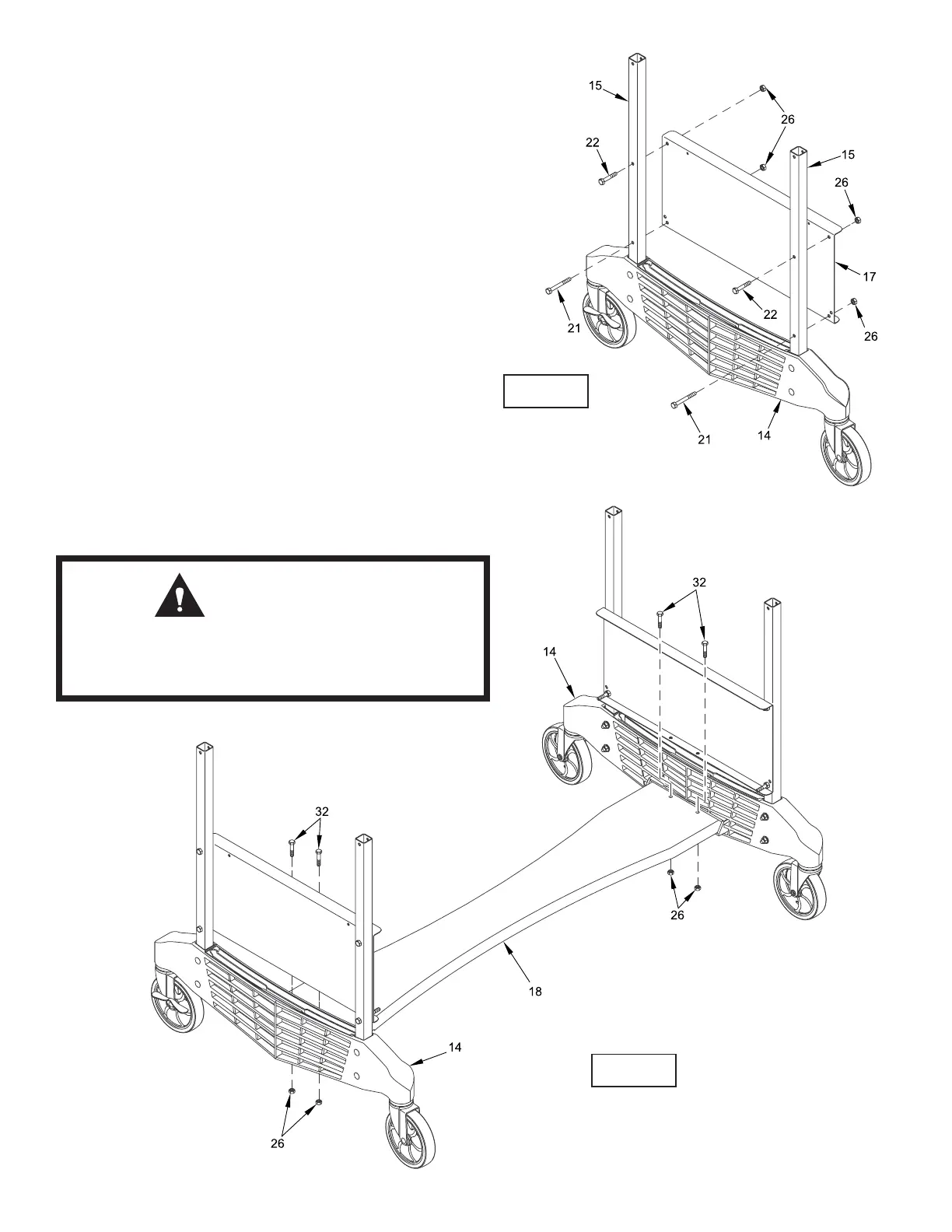

5. Attach Name Panel #17 to inside of Upright Tubes #15 using
two bolts #21, two bolts #22, and four locknuts #26. See
Figure 4. Short bolts #22 go in top holes and long bolts #21 go
in bottom holes. Tighten top bolts #22 but do not overtighten,
crushing tubes. Do not tighten bottom bolts #21 tight yet,
they will have to be removed in a later step.
6. Repeat step 5 with other name panel and caster beam with upright
tubes. See Figure 4.
7. Attach Wood Bottom Board #18 to Caster Beams #14 as shown
in Figure 5. Attach with four bolts #32 and four locknuts #26.
Tighten locknuts #26 but do not overtighten, cracking plastic.
See Figure 5.
To Next Page
