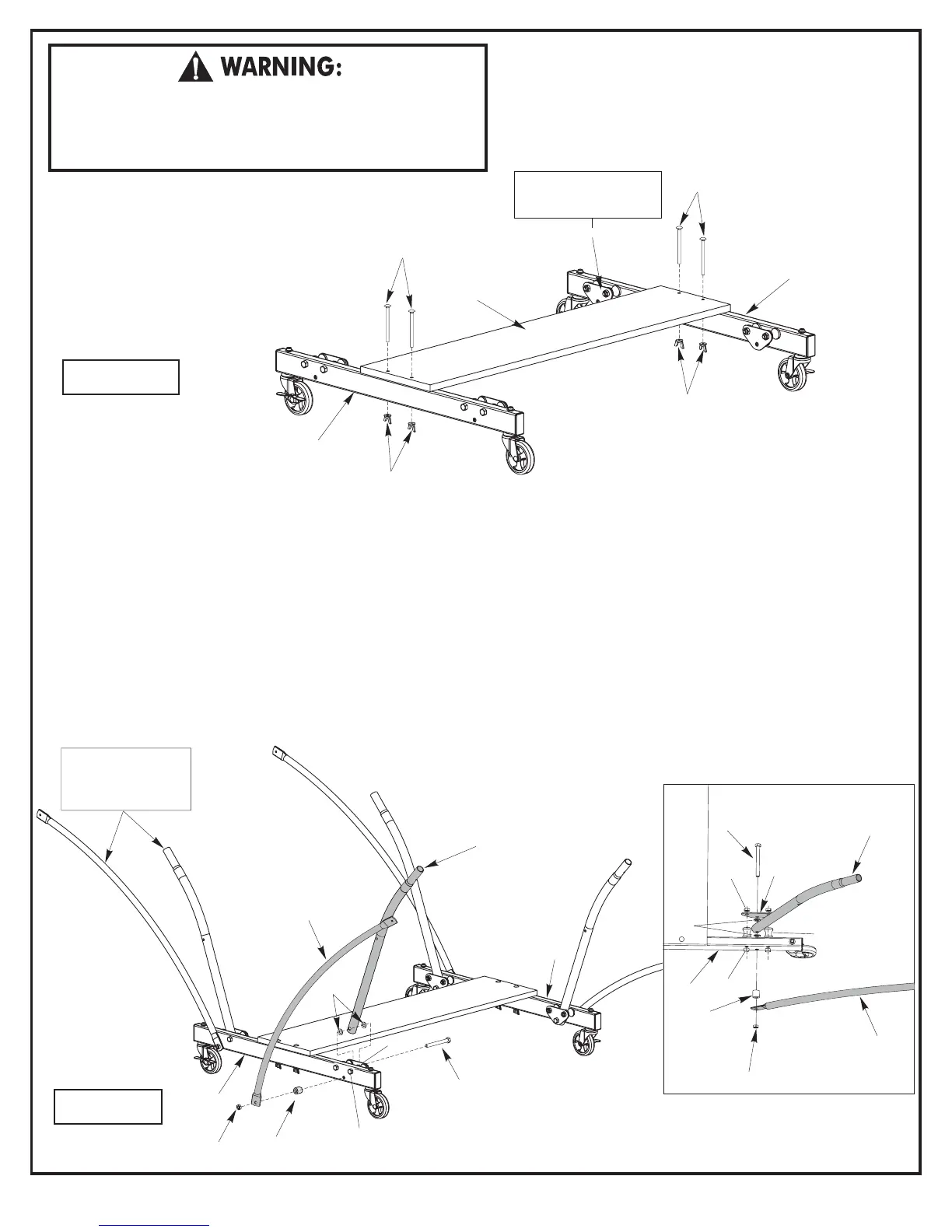

1. Attach Wood Bottom Board (#15) to Caster Beam
Assemblies (#7) as shown in figure 1. Turn Caster
Beams as shown and attach board with four
Carriage Bolts (#31) and four Wing Nuts (#32).
Tighten Thumb Screws securely.
Figure 1
READ AND FOLLOW ALL ASSEMBLY, OPERATING, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO (2)
ADULTS ARE NEEDED TO PUT THIS TABLE TOGETHER!
2.
b)
c)
d)
e)
NOTE:
Attach Strut Tubes (#17) and Linkages (#16) to Caster Beam Assemblies (#7) as shown in Figure 2.
Loosen #13) and Nuts (#28) so that Strut Tube (#17) can fit between Support Plate (#43)
and Caster Beam (#7) as shown in the Top View and Figure 2.
Slide one Hex Bolt (#27) through , followed by one Plastic Washer (#39), Strut
Tube (#17), one Plastic Washer (#39), pass through Caster Beam (#7), one Spacer (#36), one
Linkage (#16), and Lock Nut (#28).
Repeat on other end of Caster Beam (#7) and on second Caster Beam.
Tighten (#13) and Nuts (#28) securely.
Tighten Nuts (#28) on Bolts (#27) securely.
Tighten nuts so that end of Bolt (#27) in even with the edge of nut.
a) Bolts (
Support Plate (#43)
Bolts
15
31
7
32
31
32
7
17
7
36
28
28
27
16
17
16
27
43
39
12
36
28
7
Top View
43
Note: Support Plate (#43)
must be on inside of Caster
Rail (#7) as shown.
13
7
43
Figure 2
28
13
Note: Linkages & Strut
tubes must be turned as
shown or table will not
operate correctly.
