5
12. Make sure legs #25 and #26 are open and the leg
hinges are locked. With one person on each side of this
table half, lift it and set it on legs. (See figure 7)
While holding table half near net end, pull the frame under
this table half until hole in "U" upright #8 is aligned with
middle hole in the leg mounting bracket #40
Secure table half to base frame to leg mounting brackets
#40 using bolts #12, spacer #30, and locknut #13. Make
sure that spacer #30 is between "U" upright #8 and leg
mounting bracket #40.
13. Install linkages #22 as shown with linkage on the outside
of "U" upright #8 and on the inside of the legs #25 and
#26.
Secure linkage #22 to legs #25 and #26 with one screw #24,
one spacer #23 (between the linkage and the leg), one
locknut #20. Do not over tighten these nuts. Tubes
MUST be free to pivot.
Attach linkage #22 to "U" upright #8 with one bolt #21, one
spacer #23 (between the linkage and the leg), one
locknut #20. Do not over tighten these nuts. Tubes
MUST be free to pivot.

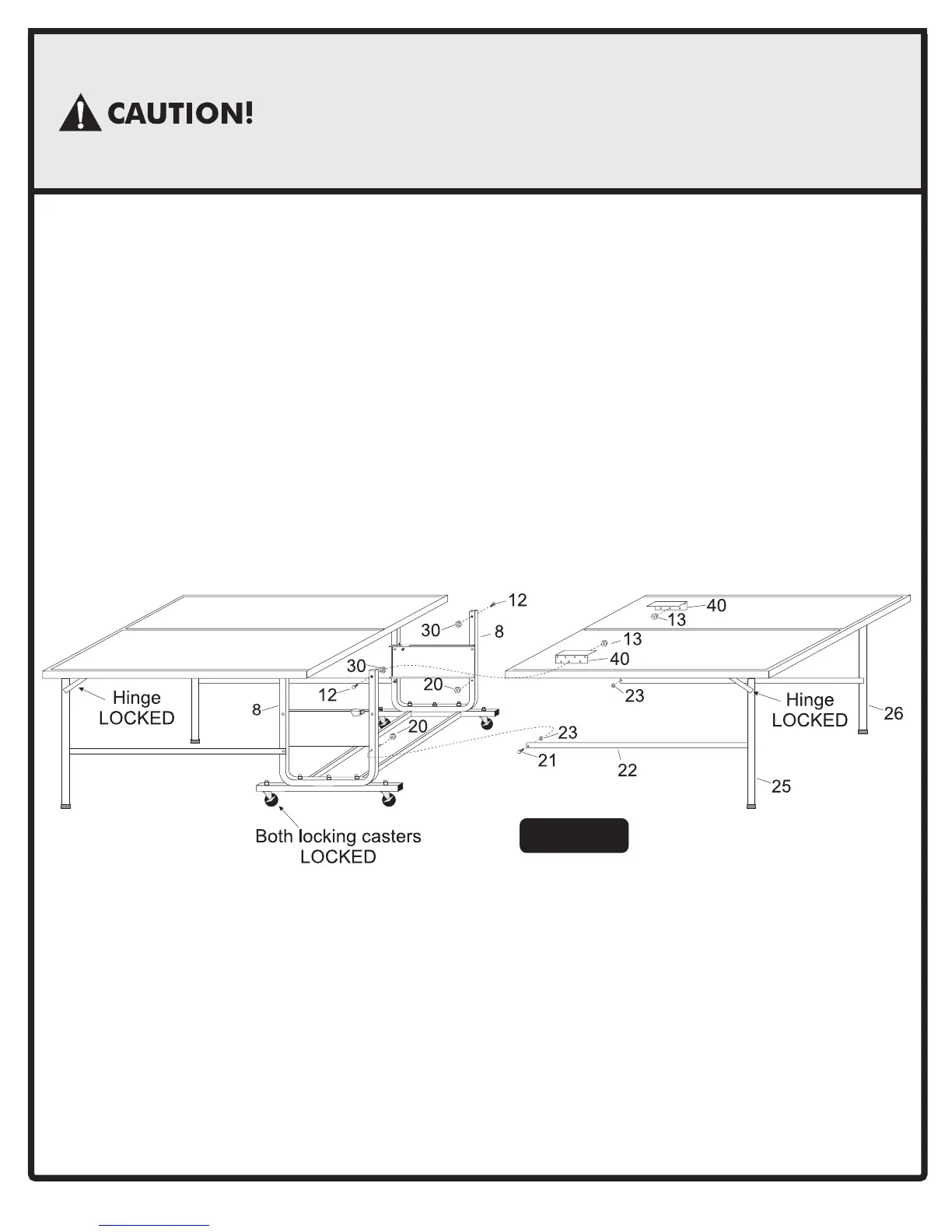

FIGURE 7
DO NOT FOLD TABLE HALVES UP IN THE
STORAGE POSITION UNTIL BOTH TABLE
HALVES ARE INSTALLED AND ALL OPERATING
INSTRUCTIONS ARE UNDERSTOOD.
