Stiga Table Tennis Table - Attaching Table Half to Base Frame and Linkages

12
8
8
30
40
40
40
LegHinge
LOCKED
MountLeg
tothisHole
Table Top
LegBracket#40
LegHinge
LOCKED
13
Boltgoesin
middlehole
4
FIGURE 6FIGURE 6
FIGURE 6FIGURE 6
FIGURE 6
FIGURE 5FIGURE 5
FIGURE 5FIGURE 5
FIGURE 5

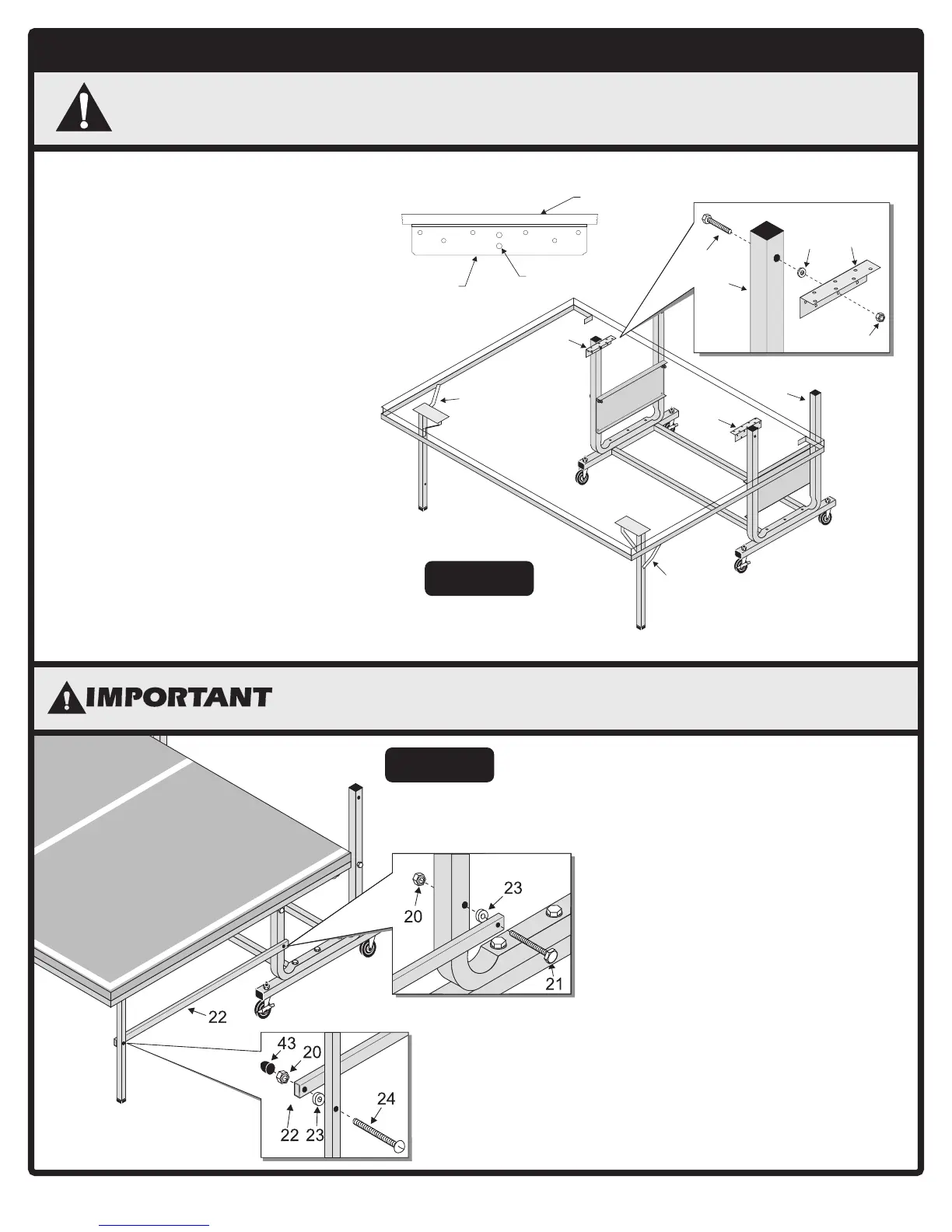

ATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGESATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGES
ATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGESATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGES
ATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGES
Do not attempt to raise this half until other half top is attached
and you have read and understand operating instructions
11. Install linkages #22 as shown with linkage
on the outside of "U" upright #8 and on
the inside of the legs #25 and #26.
Secure linkage #22 to legs #25 and #26
with one screw #24, one spacer #23
(between the linkage and the leg), one
locknut #20 and one thread protector #43.
Do not over tighten these nuts. Tubes
MUST be free to pivot.
Attach linkage #22 to "U" upright #8 with one
bolt #21, one spacer #23 (between the
linkage and the leg), one locknut #20.
Do not over tighten these nuts. Tubes
MUST be free to pivot.
10. Find bolts #12, spacer #30, and locknut
#13. Place them on the floor next to
caster wheels so they will be handy for
next step.
Make sure legs #25 and #26 are open
and the leg hinges are locked. With
one person on each side of this table half,
lift it and set it on legs. (See figure 5)
While holding table half near net end, pull
the frame under this table half until hole in
"U" upright #8 is aligned with the lower
middle hole in the leg mounting bracket
#40
Secure table half to leg mounting brackets
#40 using bolts #12, spacer #30, and
locknut #13. Make sure that spacer #30
is between "U" upright #8 and leg
mounting bracket #40. (See figure 5)
LOCK LEG HINGES ON BOTH LEGS. AT LEAST TWO ADULTS
ARE NEEDED TO COMPLETE THE REMAINDER OF ASSEMBLY
CAUTION
