Stihl BT 45 User Manual

BT 45
English
15

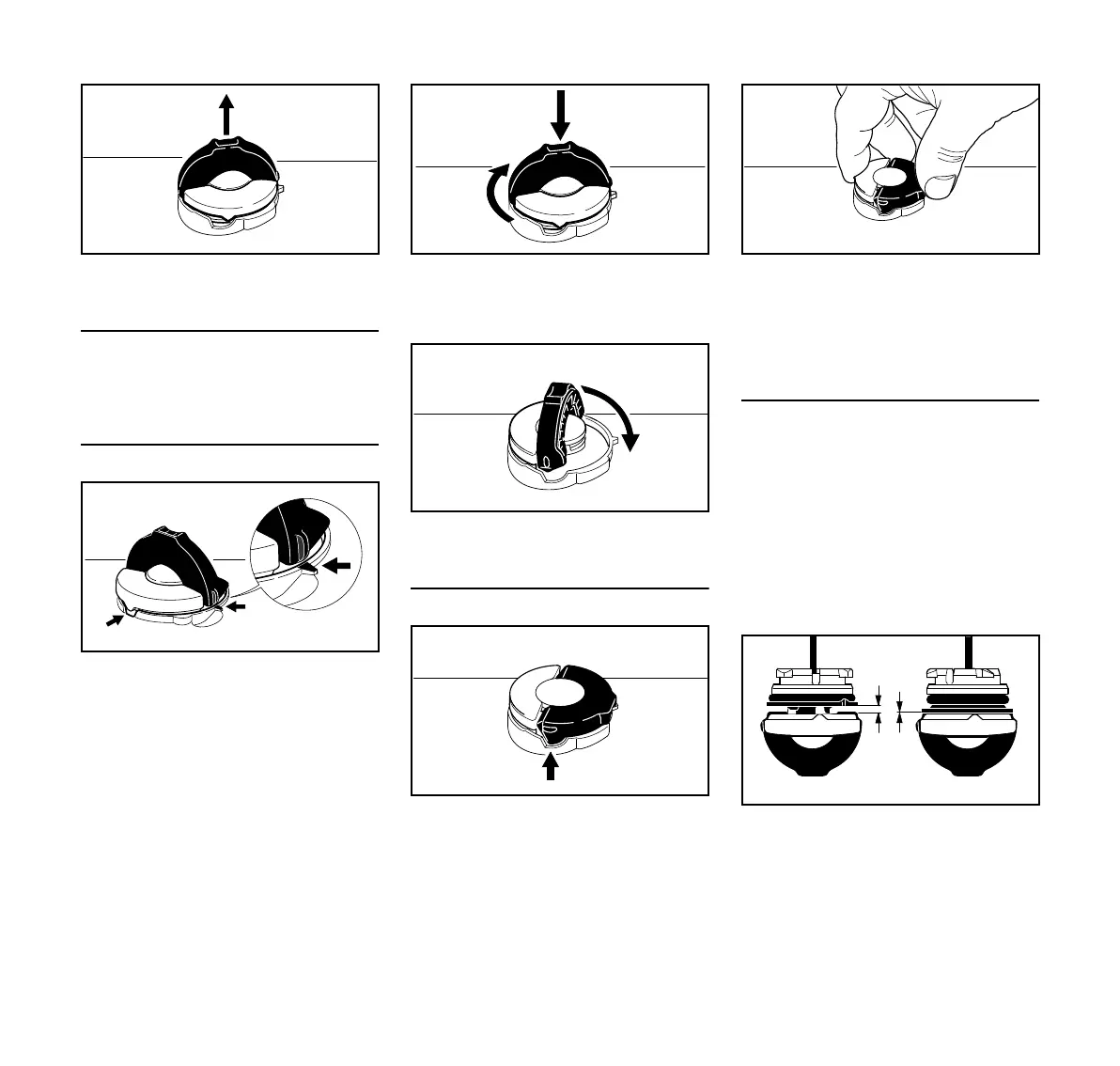

N Remove fuel filler cap.
Refueling
Take care not to spill fuel while fueling
and do not overfill the tank.
Closing
With grip in an upright position:
N Insert the cap – positioning marks
on the cap and the fuel tank opening
must line up.
N The cap should drop fully into the
opening in this position.
N While pressing the cap down, twist it
firmly clockwise as far as it will go
(approx. 1/4 turn).
N Fold down the grip.
Checking for proper closure
N The lug on the grip must engage
entirely in the recess (arrow), and
the grip must lie completely flush
with the top of the cap.
N Grip the cap and check for
tightness.
N If the cap can be moved, it is not
properly installed.
Misalignment of the cap parts
N If the cap does not drop fully into the
opening when the positioning marks
line up and/or if the cap does not
tighten properly when twisted, the
base of the cap may be rotated out
of position vis-à-vis the top.
N Such misalignment can result from
handling, cleaning or an improper
attempt at tightening.
001BA224 KN
001BA220 KN
001BA221 KN
001BA222 KN
001BA223 KN
Left: Base of improperly aligned
cap (with open space)
Right: Base of cap correctly posi-
tioned for installation
001BA225 KN
001BA227 KN

Stihl BT 45 Specifications

General

Engine Type	2-stroke
Displacement	27.2 cc
Power Output	0.9 kW (1.2 hp)
Weight	5.2 kg
Power Source	Gasoline
No-Load Speed	0 - 300 rpm
