BT 45
English
24

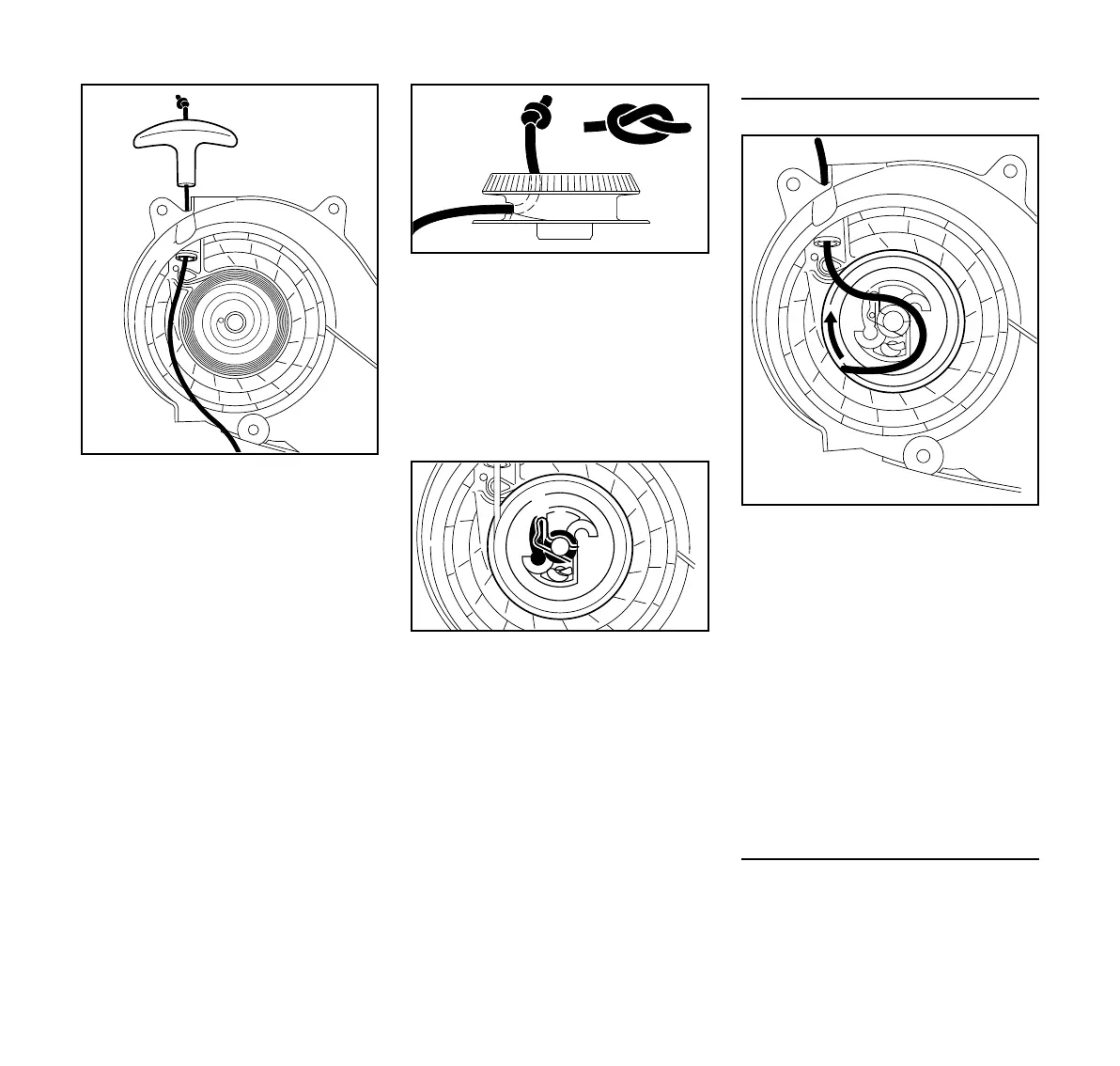

N Remove the remaining rope from
the rotor and starter grip.
N Tie a simple overhand knot in the
new rope.
N Thread the new rope through the
top of the starter grip and the rope
bushing (5).
N Thread the rope through the rotor
and secure it with a simple
overhand knot.
N Coat the rope rotor bearing bore
with non-resinous oil.
N Slip the rotor over the starter post –
turn it back and forth to engage the
anchor loop of the rewind spring.
N Fit the pawl (4).
N Fit the washer (3).
N Push the spring clip (2) into position
– it must point clockwise and
engage the pawl's peg.
Tensioning the rewind spring
N Make a loop in the unwound starter
rope and use it to turn the rope rotor
six full revolutions clockwise.
N Hold the rotor steady.
N Pull out and straighten the twisted
rope.
N Release the rope rotor.
N Let go of the rope slowly so that it
winds onto the rotor. The starter grip
must locate firmly in the rope guide
bushing. If the grip droops to one
side: Add one more turn on rope
rotor to increase spring tension
Replacing the rewind spring
N Remove the rope rotor as described
in "Replacing the Starter Rope".
