Stihl FS 100 RX User Manual

FS 100 RX
English
17
The carrying ring comes standard with
the machine or is available as a special
accessory.
For position of carrying ring see "Main
Parts".

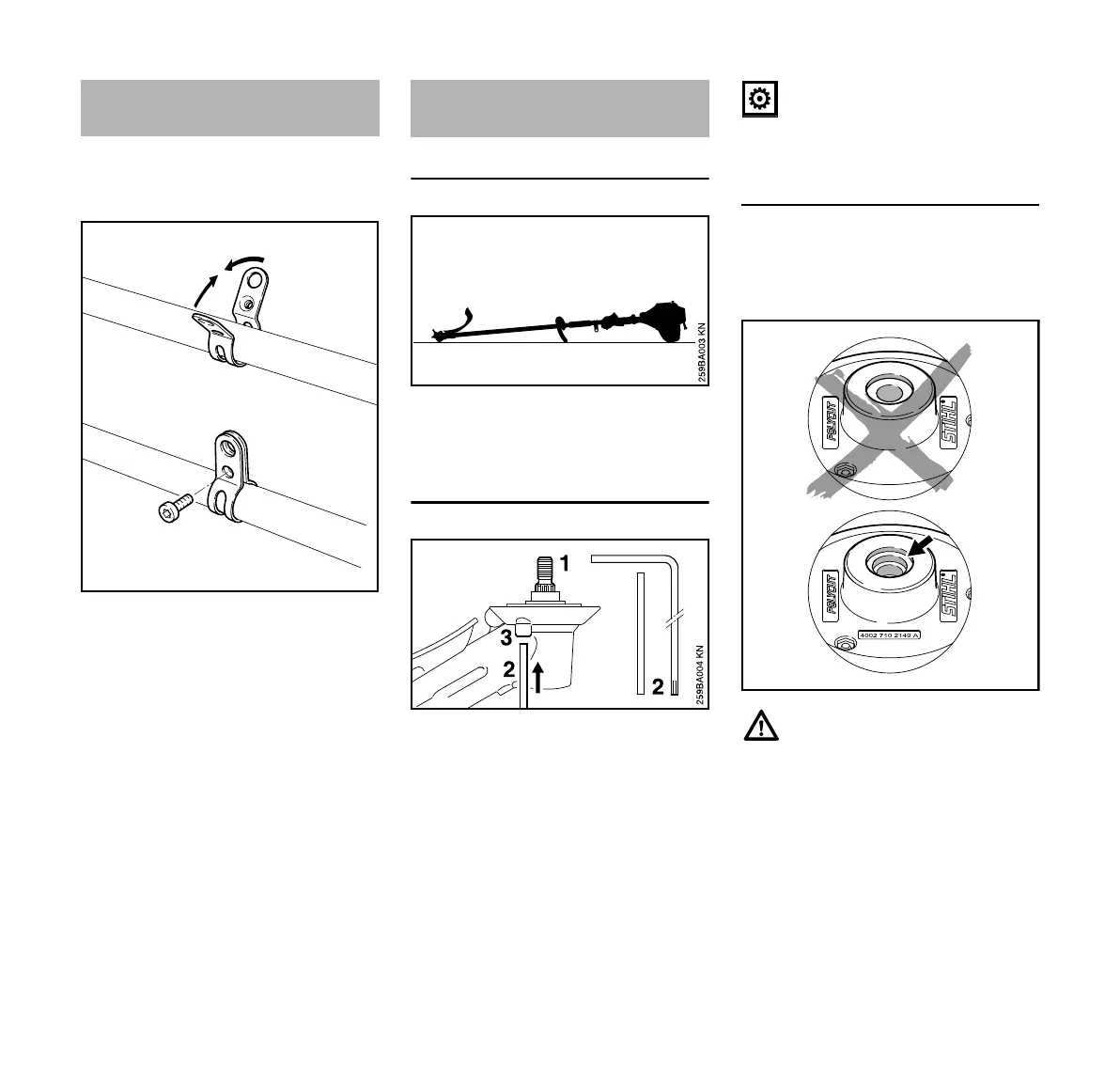

N Place the clamp (1) against the
drive tube with the tapped hole on
the left (viewed from engine).
N Squeeze the two ends of the clamp
together and hold in that position.
N Insert the M6x14 screw (2).
N Line up the carrying ring.
N Tighten down the screw firmly.
Preparations
N Lay your brushcutter on its back so
that the cutting attachment
mounting face is facing up.
Block the drive shaft.
N Insert the stop pin (2) or screwdriver
– come standard with machine or
are available as special accessories
– in the hole (3) in the gearbox as far
as stop, and apply slight pressure.
N Rotate the nut or cutting attachment
on the shaft (1) until the stop pin
slips into position and blocks the
shaft.
After mounting the cutting attachment,
remove the tool used to block the shaft.
Mounting the mowing head
Keep the instruction sheet for the
mowing head in a safe place.
STIHL PolyCut 20-3
Install only the mowing head with a
double-stepped seat as shown above.
Fitting the Carrying Ring
002BA142 KN
1
2
1
Mounting the Cutting
Attachment
259BA012 KN
