FS 110, FS 110 R
English
26
N Pull the hose (1) (protector for
shipping) off the shaft (2).
N Go to "Mounting the mowing head".
If you want to mount a metal cutting
attachment in place of a mowing head,
you will need the following additional
parts: Nut (3), rider plate (4) and thrust
washer (5) (special accessories).
Mounting hardware is packed with
machine
Mowing heads and metal cutting
attachments may be mounted.
If the parts are packed with the machine
N Pull the hose (1) (protector for
shipping) off the shaft (2).
The nut (3), rider plate (4) and thrust
wsher (5) are in the parts kit supplied
with the machine.
N Go to "Mounting the mowing head"
or "Mounting the metal cutting
attachment".
If the parts are mounted to the gearbox
N Go to "Removing the mounting
hardware".

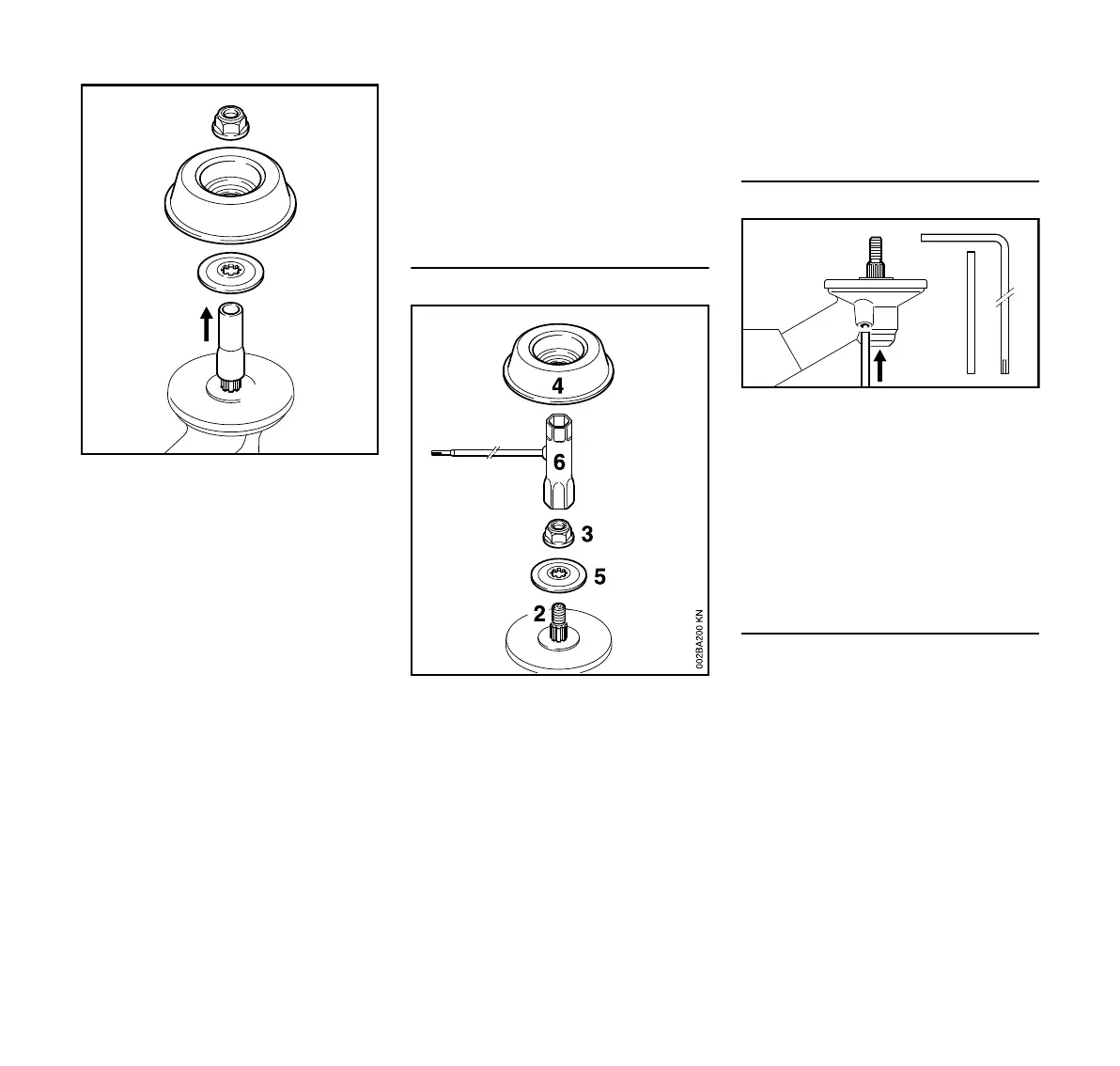

Removing the mounting hardware
N Block the shaft – see next chapter
on "Blocking the output shaft".
N Use the combination wrench (6) –
comes standard with machine or is
available as special accessory – to
unscrew the nut (3) clockwise (left-
hand thread) from the shaft (2).
N Pull the thrust washer (5) off the
shaft (2).
The rider plate (4) is in the parts kit
supplied with the machine.
N Go to "Mounting the mowing head"
or "Mounting the metal cutting
attachment".
Blocking the output shaft
N Insert the stop pin (7) or screwdriver
– come standard with machine or
are available as special accessories
– in the hole (8) in the gearbox as far
as stop, and apply slight pressure.
N Rotate the nut or cutting attachment
on the shaft (2) until the stop pin
slips into position and blocks the
shaft.
Attaching the mowing head
Keep the information sheet for the
mowing head in a safe place.
