Stihl FS 310 User Manual

FS 310
English
20

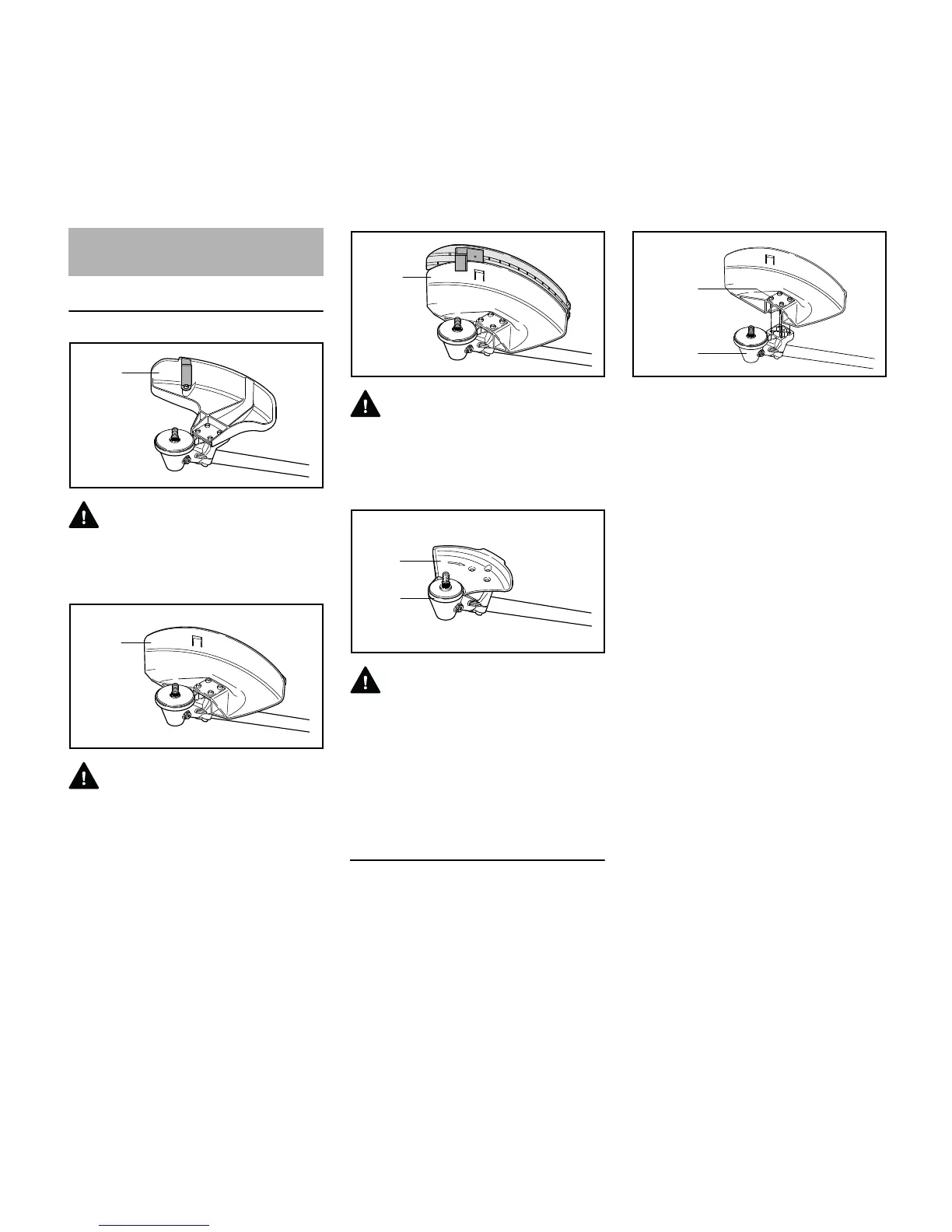

Use the Right Deflector
WARNING
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head.
WARNING
Deflector (2) is approved for brush
knives only and must therefore be
mounted before fitting a brush knife.
WARNING
Deflector (2) may also be used for
mowing heads if it is equipped with the
skirt and line limiter blade, see
"Mounting Skirt and Blade".
WARNING
The limit stop (3) is approved as a
deflector for circular saw blades only
and must therefore be mounted before
fitting a circular saw blade. It is also
necessary to change the guard ring (4),
see "Mounting the Cutting Attachment" /
"Mounting Circular Saw Blades".
Mounting the Deflector
Deflectors (1 to 4) are mounted to the
gearbox in the same way.
N Remove dirt from joints on gearbox
and defelector – make sure that no
dirt gets into the screw holes in the
gearbox.
N Place the deflector on the
gearbox (5).
N Schrauben (6) eindrehen und
festziehen
Mounting the Deflector
002BA513 KN
1
002BA514 KN
2
002BA515 KN
2
002BA518 KN
3
4
002BA519 KN
5
6

Stihl FS 310 Specifications

General

Power Output	1.4 kW
Engine Type	2-stroke
Shaft Type	Straight
Sound Power Level	112 dB(A)
Engine Displacement	36.3 cc
Fuel Capacity	0.95 liters
Cutting Diameter	23-25 cm
Cutting Width	23-25 cm
Starter	Recoil
