12 Using a Battery Harness

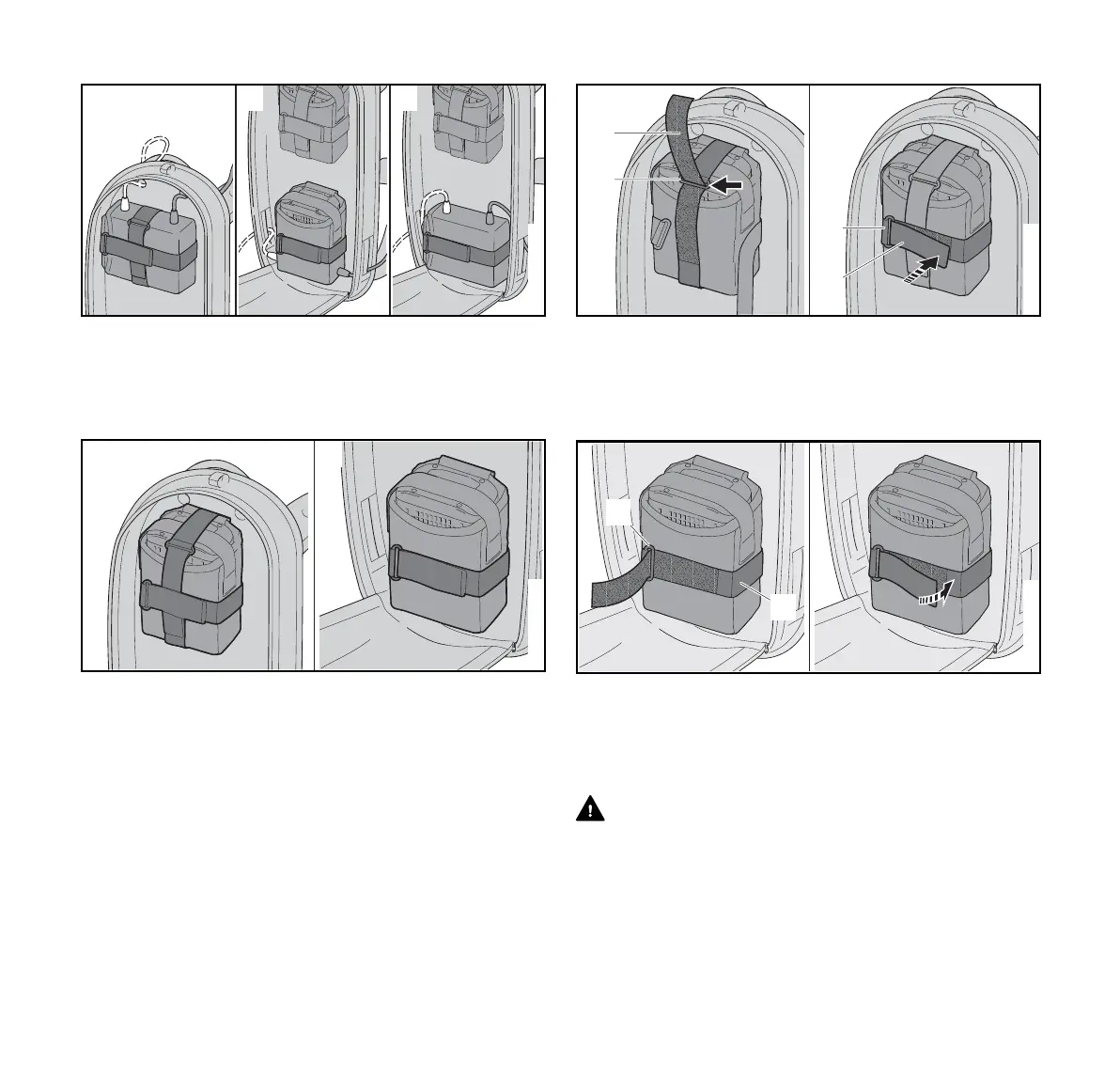

The AP Battery Bag with Connecting Cord can be mounted
at the top (Illustration A) or bottom (Illustrations B and C)
fastening points inside the STIHL Battery Backpack. Mount
so that the connecting cord exits the backpack on the side of
your body where the power tool will be held and controlled.
The STIHL Extra AP Battery Bag can be mounted at the
top (Illustration D) or bottom (Illustration E) fastening points
inside the STIHL Battery Backpack.
To attach the AP Battery Bag with Connecting Cord or Extra
AP Battery Bag to the STIHL Battery Backpack:
► Insert the AP battery into the AP Battery Bag with
Connecting Cord or Extra AP Battery Bag.
► Attach the AP Battery Bag with Connecting Cord or Extra
AP Battery Bag at one of the specified locations.
► If you attach the battery bag at the top position, pull the
vertical strap (2) through the ring (1) and close the hook
and eye fastener to secure it.
► Repeat the process with the horizontal strap (4) and its
ring (3).
► If you attach the battery bag at the bottom position, pull
the horizontal belt strap (6) through the ring (5) and close
the hook and eye fastener to secure it.
12.2.2 Positioning and Adjusting the Connecting Cord
WARNING
To reduce the risk of injury from tripping or losing control of
the hedge trimmer, always secure the connecting cord with
the hook and eye fasteners as described below. Position
and secure the connecting cord so that it will not interfere
with proper working technique or your ability to control the
hedge trimmer.
D E
0000-GXX-4470-A1
1
2
3
4
0000-GXX-4846-A0
