Stihl KM 130 R User Manual

14
English / USA
KM 110, KM 130

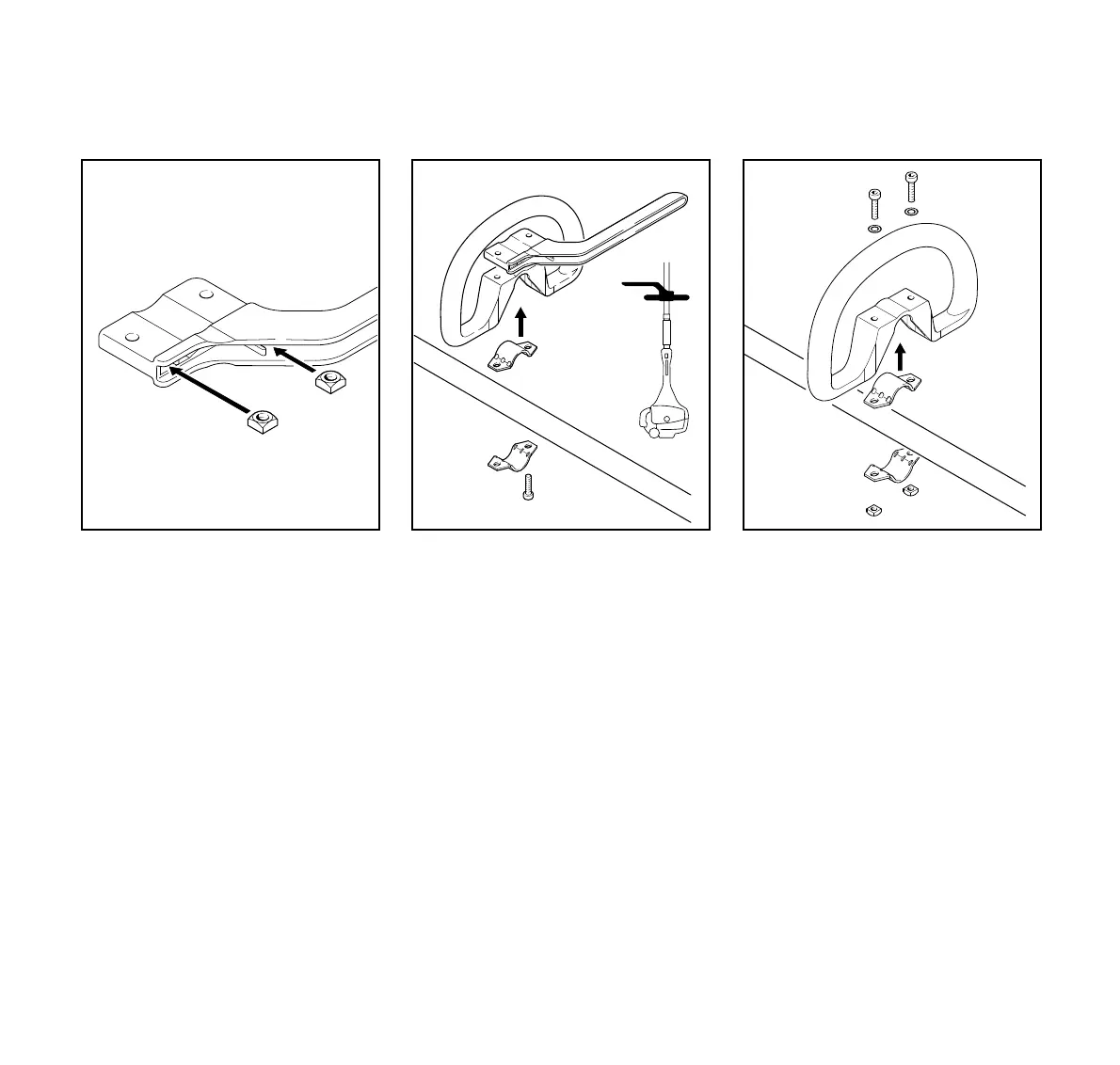

Loop handle with barrier bar
: Insert square nuts (1) in the
barrier bar (2).
: Line up the holes.
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and place the
barrier bar (2) in position.
Note correct position.
: Line up the holes.
: Insert screws (7) in holes and screw
them into the barrier bar as far as
stop.
: Go to “Securing the loop handle”.
Loop handle without barrier bar
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and line up the
holes.
: Fit washers (7) on screws (8).
: Insert screws (8) in holes and screw
on the square nuts (1) as far as
stop.
: Go to “Securing the loop handle”.
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
4
5
002BA136 KN
1
6
1
3
8
7
8
7

Stihl KM 130 R Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Power Output	1.4 kW
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Engine Power	1.9 bhp
Emissions	EPA Phase II, CARB standards
Recommended Cutting Attachment	Grass blade, brush knife
