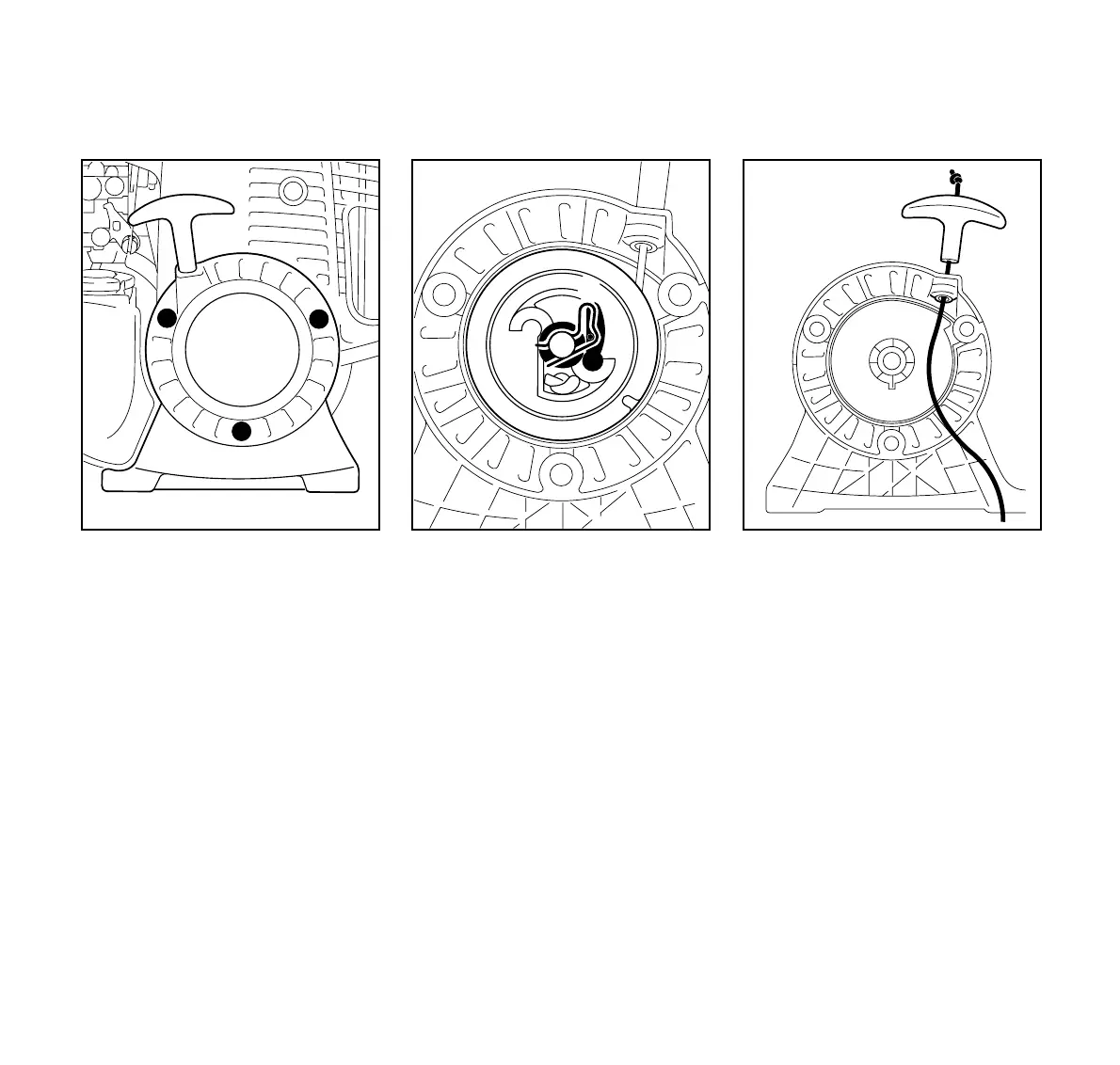

Replacing the starter rope
: Move slide control in direction of
c – arrow to STOP-O.
: Take out the screws (1).
: Lift the starter cover (2) off the
housing.
: Remove the spring clip (3).
: Remove the rope rotor with
washer (4) and pawl (5).
: Remove remaining rope from the
rotor and grip.
: Tie a simple overhand knot in the
new rope (see "Specifications") and
then thread it through the top of the
grip and the rope bushing (6).
Replacing Starter Rope
and Rewind Spring
1
1
249BA012 KN
2
1
4
3
5
249BA013 KN
249BA014 KN
6

Stihl KM 130 R Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Power Output	1.4 kW
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Engine Power	1.9 bhp
Emissions	EPA Phase II, CARB standards
Recommended Cutting Attachment	Grass blade, brush knife
