Stihl KM 55 R User Manual

KM 55 R, KM 55 RC
English
11

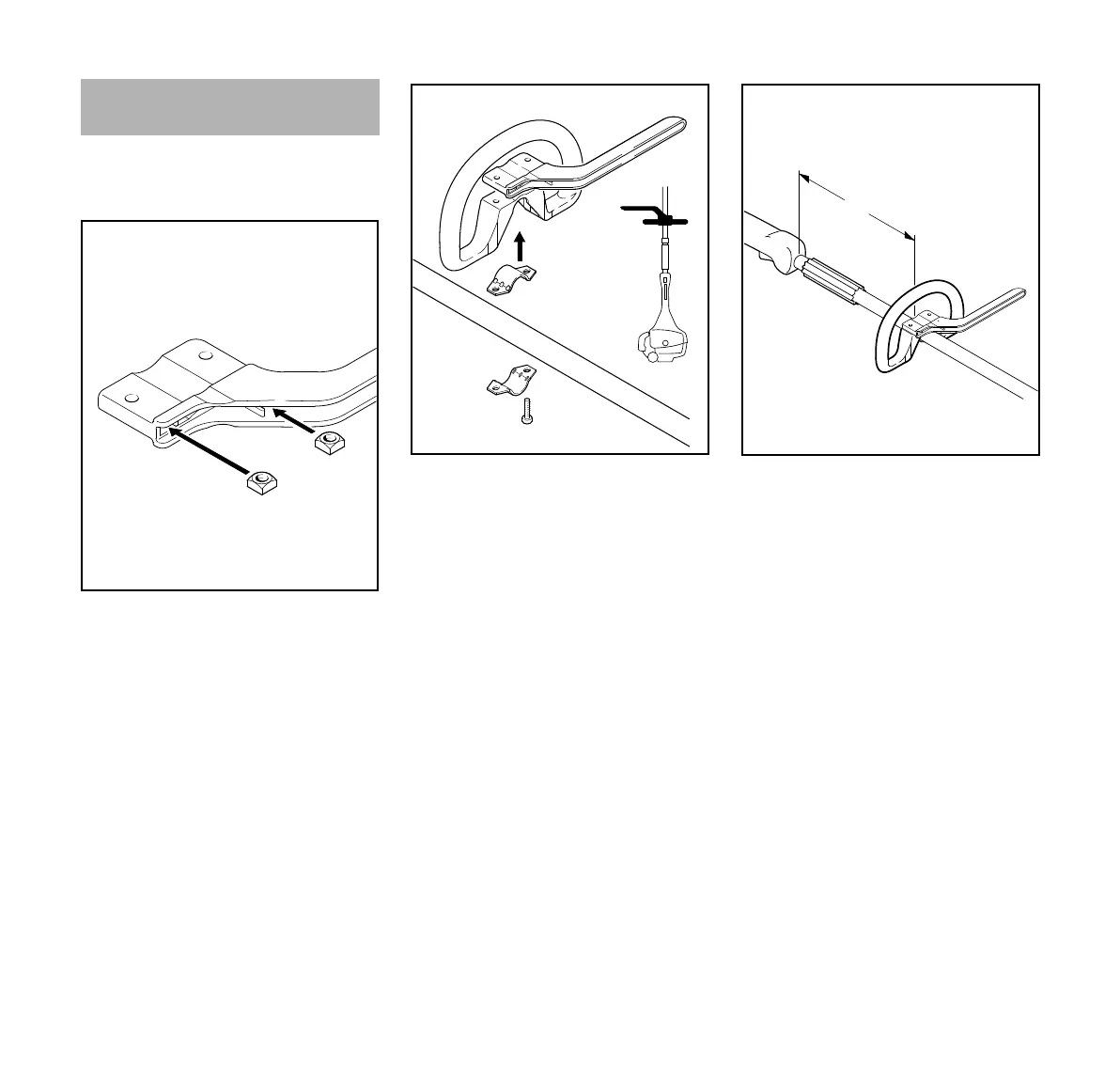

A barrier bar is supplied with the
machine. Attach the barrier bar to the
loop handle.
N Insert square nuts (1) in the barrier
bar (2) – the holes must line up
N Insert the clamp (3) in the loop
handle (4) and position them
together on the shaft (5)
N Position clamp (6)
N Position barrier bar (2) – note
position!
N Line up the holes
N Insert bolts (7) in the holes – and
screw them into the barrier bar as
far as possible
N Fit the loop handle (4) at a distance
of (A) approx. 20 cm (8 in) forward
of the control handle (8)
N Orient the loop handle
N Tighten the bolts – lock the nuts if
necessary
The sleeve (9) is present depending on
the country and must be located
between the loop handle and control
handle.
Always leave the barrier bar attached.
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
A
9
8
4
002BA353 KN

Stihl KM 55 R Specifications

General

Engine Type	2-stroke
Displacement	27.2 cc
Weight	4.4 kg
Weight (lbs)	9.7 lbs
Engine Power	0.8 kW / 1.1 hp
