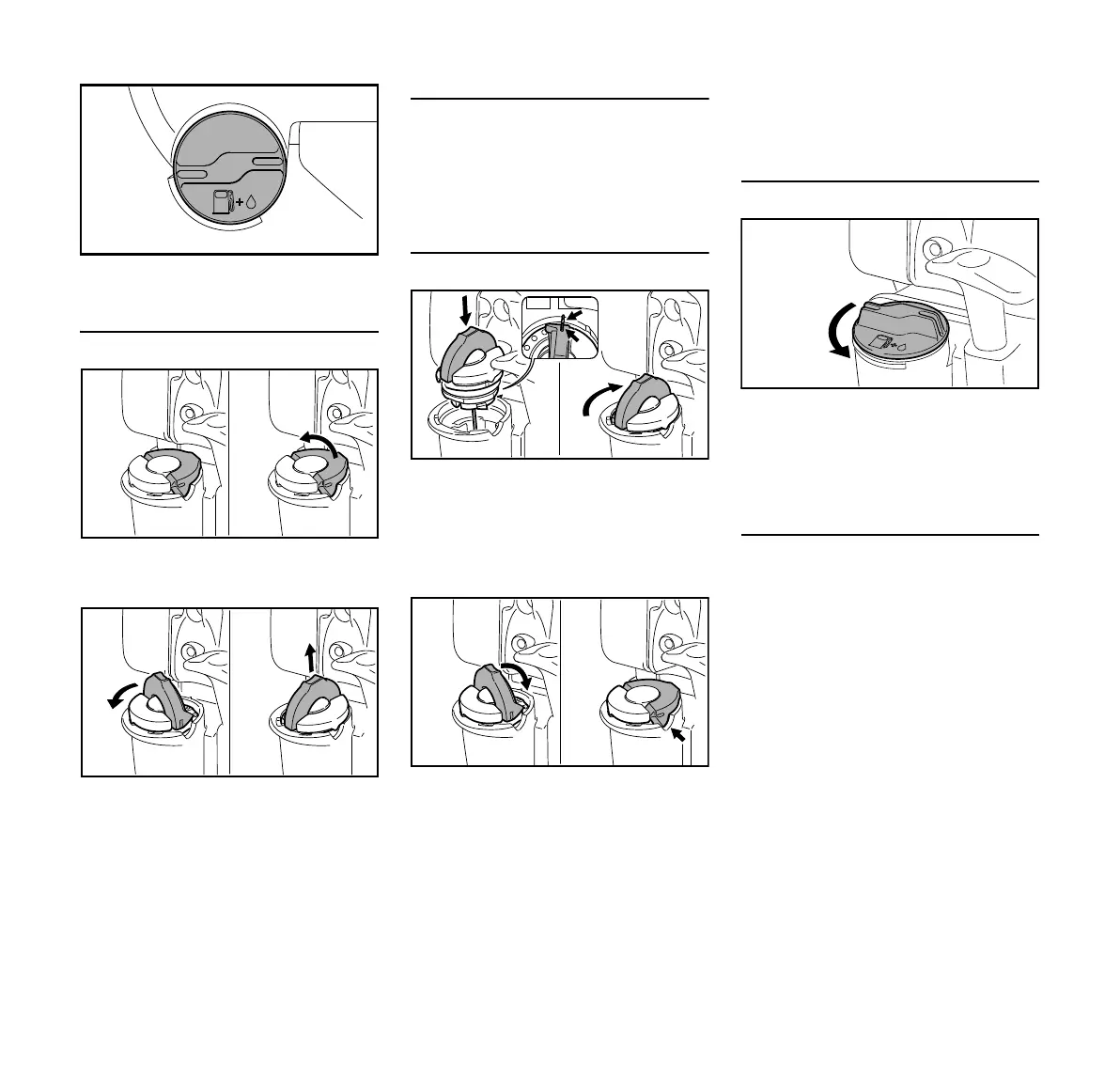

Threaded filler cap
Opening the toolless filler cap
N Swing the grip into an upright
position.
N Turn the cap counterclockwise
(approx. 1/4 turn).
N Remove the filler cap.
Refueling
Take care not to spill fuel while fueling,
and do not overfill the tank. STIHL
recommends use of the STIHL filling
system (special accessory).
Closing the toolless filler cap
N Position the cap with the grip in an
upright position; the raised
positioning marks must line up.
N Turn cap clockwise as far as it will
go (approx. 1/4 turn).
N Fold the grip down so that it is flush
with the surface.
If the grip is not flush with the surface
and the lug on the clip does not engage
entirely in the recess (arrow), the cap is
not properly closed and the steps
described above must be repeated. See
also the "Toolless cap with grip" section
in the Safety Precautions.
Opening the threaded filler cap
N Turn the cap counterclockwise until
it can be removed from the tank
opening.
N Remove the filler cap.
Refueling
Take care not to spill fuel while fueling
and do not overfill the tank. STIHL
recommends use of the STIHL filling
system (special accessory).
002BA419 KN
249BA053 KN
249BA054 KN
249BA055 KN
249BA056 KN
200BA421 KN

Stihl KM 90 R Specifications

General

Engine Type	2-stroke
Displacement	28.4 cc
Sound Pressure Level	96 dB(A)
Sound Power Level	107 dB(A)
Powerhead Weight	4.4 kg
Weight	4.4 kg (9.7 lbs)
Engine Power	0.8 kW
Fuel Tank Volume	0.44 l
Recommended Oil Mix	50:1 with STIHL HP Ultra oil
