Stihl KM 94 R User Manual

KM 94 R
English
11

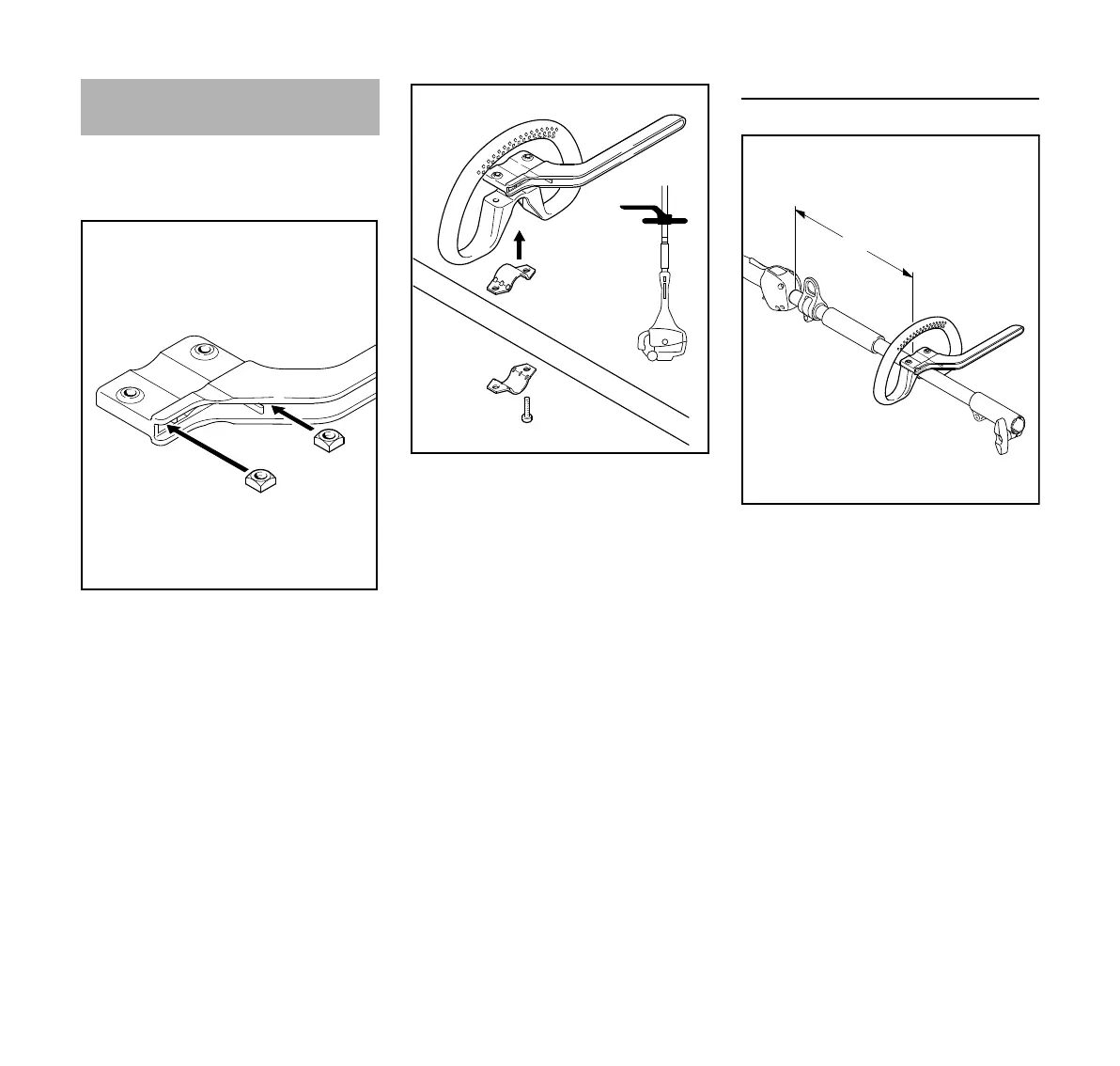

A barrier bar is supplied with the
machine. Fit the barrier bar on the loop
handle.
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Position the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) in the holes
and screw them into the barrier
bar (2) as far as stop.
N Go to "Adjusting and Securing the
Loop Handle".
Adjusting and Securing the Loop Handle
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance (A).
Recommendation: distance (A):
about 22 cm (8.7 in)
N Slide the handle to the required
position.
N Line up the loop handle (4).
N Tighten down the screws until the
loop handle can no longer be
rotated on the drive tube. If no
barrier bar is fitted – lock the nuts if
necessary.
Leave the barrier bar permanently
mounted to the loop handle.
Mounting the Loop Handle
2
1
1
002BA647 KN
2
5
4
3
6
7
002BA648 KN
4
002BA649 KN
A

Stihl KM 94 R Specifications

General

Displacement	27.2 cm³
Power Output	0.9 kW
Weight	4.0 kg
Engine Type	2-stroke
Fuel Tank Capacity	0.35 l
Engine Power	0.9 kW
Powerhead Weight	4.0 kg
Fuel Capacity	0.54 l
