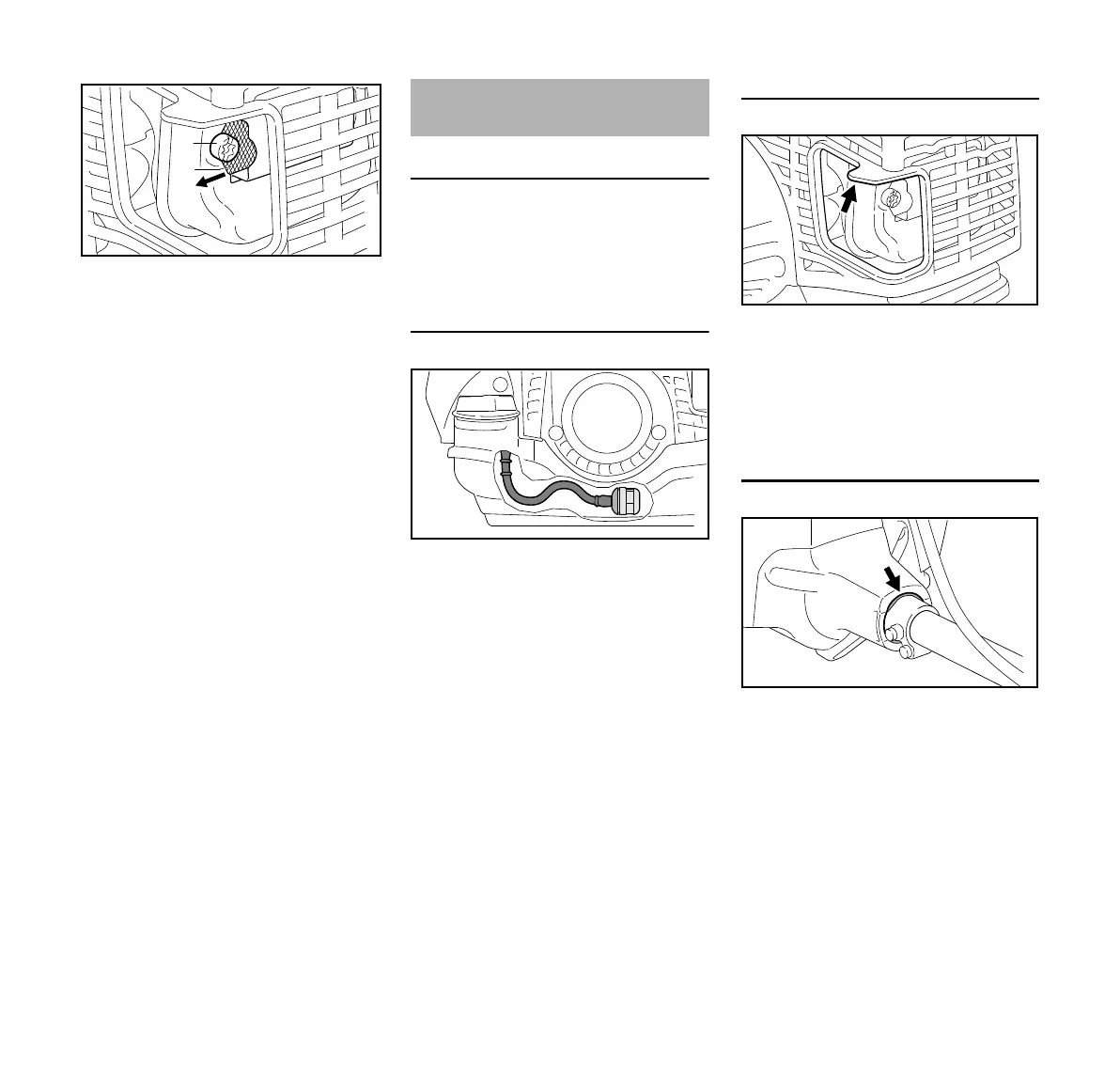

N Take out the screw (1).
N Lift the spark arresting screen (2)
and pull it out.
N Clean the spark arresting screen. If
the screen is damaged or heavily
carbonized, fit a new one.
N Refit the spark arresting screen.
N Insert the screw and tighten it down
firmly.
Maintenance Work
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer.
Fuel Pickup Body in Tank
N Check the pickup body in the fuel
tank every year and have it replaced
if necessary.
The pickup body should be positioned in
the area of the tank shown in the
illustration.
Spacer
The spacer (arrow) is integrally molded
to the shroud.
N Check spacer (1) for damage.
N If spacer (1) is damaged, have
shroud replaced immediately.
Antivibration Element
A vibration-absorbing rubber element is
installed between the powerhead and
the drive tube. Have it checked if there
are signs of wear or a noticeable
increase in vibration levels.
1191BA017 KN
1
2
Inspections and Maintenance
by Dealer
0208BA044 KN
1191BA018 KN
0208BA045 KN
