Stihl KM 94 R User Manual

KM 94 R
English
23
1 Manual Fuel Pump
2 Choke Knob
3 Carburetor Adjusting Screw
4 Fuel Filler Cap
5 Fuel Tank
6 Starter Grip
7 Muffler with Spark Arresting Screen
8 Throttle Trigger
9 Throttle Set Wheel
10 Momentary Stop Switch
11 Throttle Trigger Lockout
12 Carrying Ring
13 Loop Handle
14 Barrier Bar
15 Coupling Sleeve
16 Wing Screw
17 Cap with Spark Plug Boot
18 Air Filter Cover
19 Machine Support
20 Spacer at the Shroud

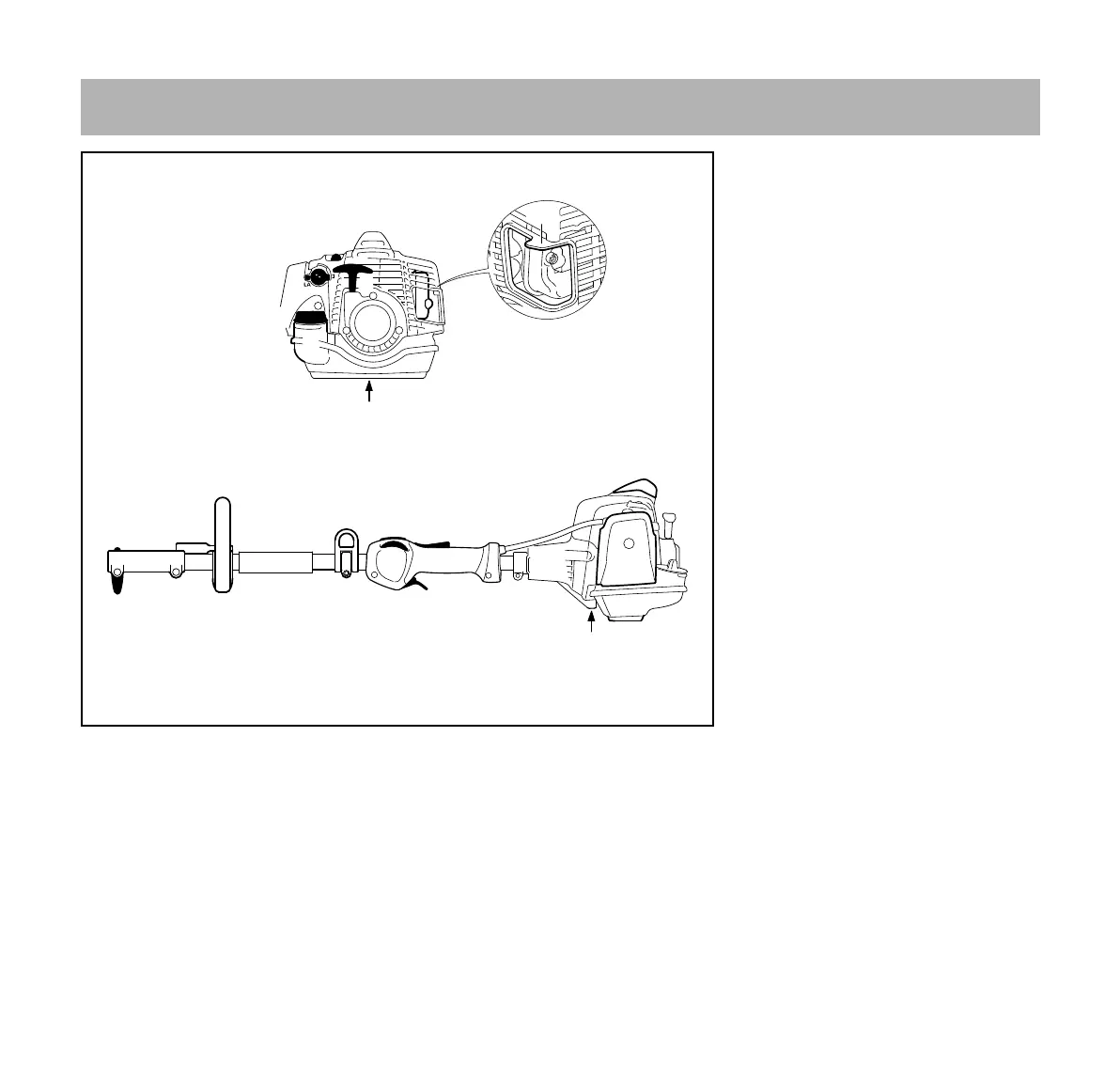

# Serial Number
Main Parts
20
16
15
13
14
12
11
10
192BA005 KN
8
9
1
2
5
4
3
6
7
#
17
18
19
#

Stihl KM 94 R Specifications

General

Displacement	27.2 cm³
Power Output	0.9 kW
Weight	4.0 kg
Engine Type	2-stroke
Fuel Tank Capacity	0.35 l
Engine Power	0.9 kW
Powerhead Weight	4.0 kg
Fuel Capacity	0.54 l
