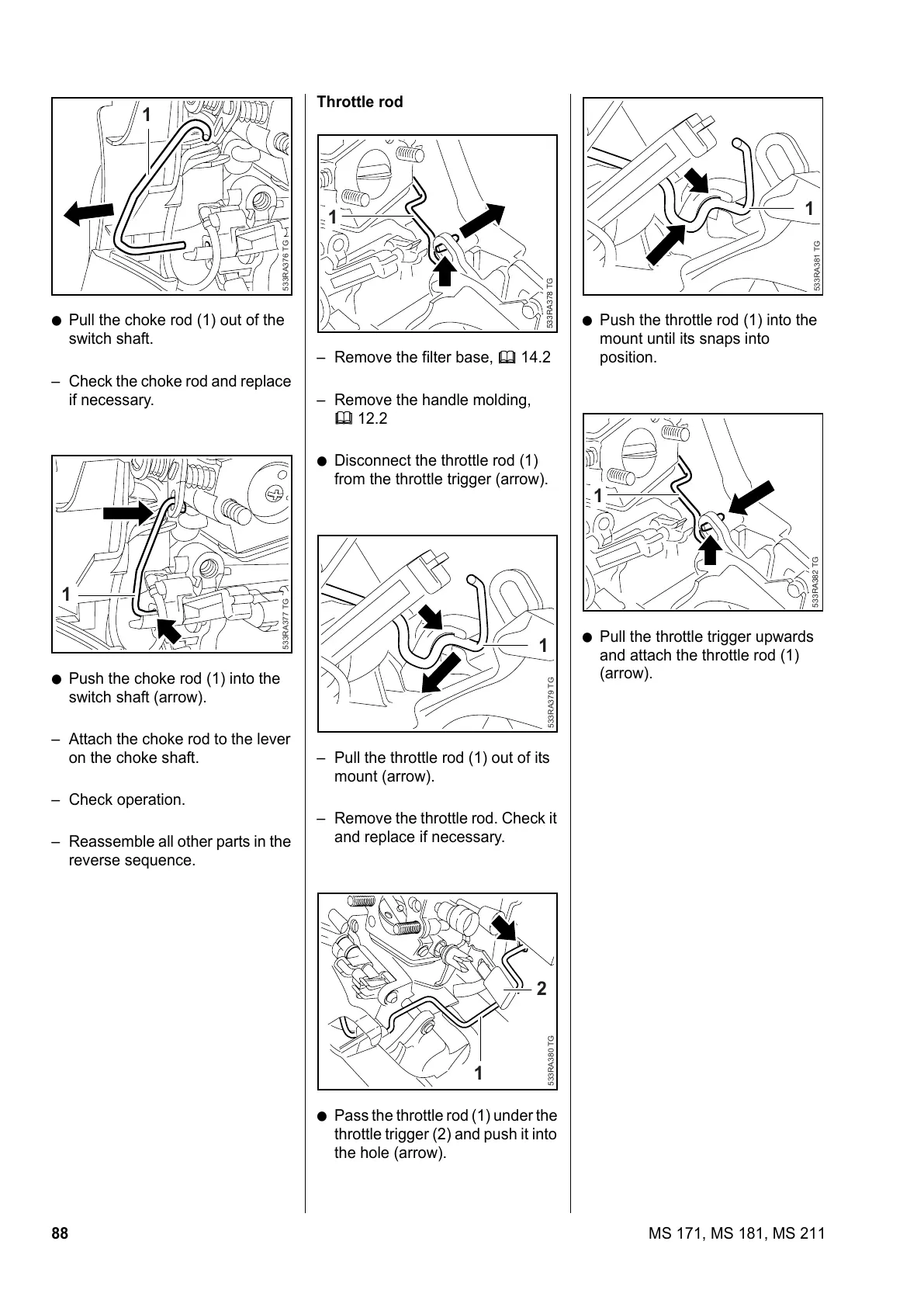

88 MS 171, MS 181, MS 211
: Pull the choke rod (1) out of the
switch shaft.
Check the choke rod and replace
if necessary.
: Push the choke rod (1) into the
switch shaft (arrow).
Attach the choke rod to the lever
on the choke shaft.
Check operation.
Reassemble all other parts in the
reverse sequence.
1
533RA376 TG
1
533RA377 TG
Throttle rod
Remove the filter base, b 14.2
Remove the handle molding,
b 12.2
: Disconnect the throttle rod (1)
from the throttle trigger (arrow).
Pull the throttle rod (1) out of its
mount (arrow).
Remove the throttle rod. Check it
and replace if necessary.
: Pass the throttle rod (1) under the
throttle trigger (2) and push it into
the hole (arrow).
533RA378 TG
1
1
533RA379 TG
1
2
533RA380 TG
: Push the throttle rod (1) into the
mount until its snaps into
position.
: Pull the throttle trigger upwards
and attach the throttle rod (1)
(arrow).
1
533RA381 TG
533RA382 TG
1
