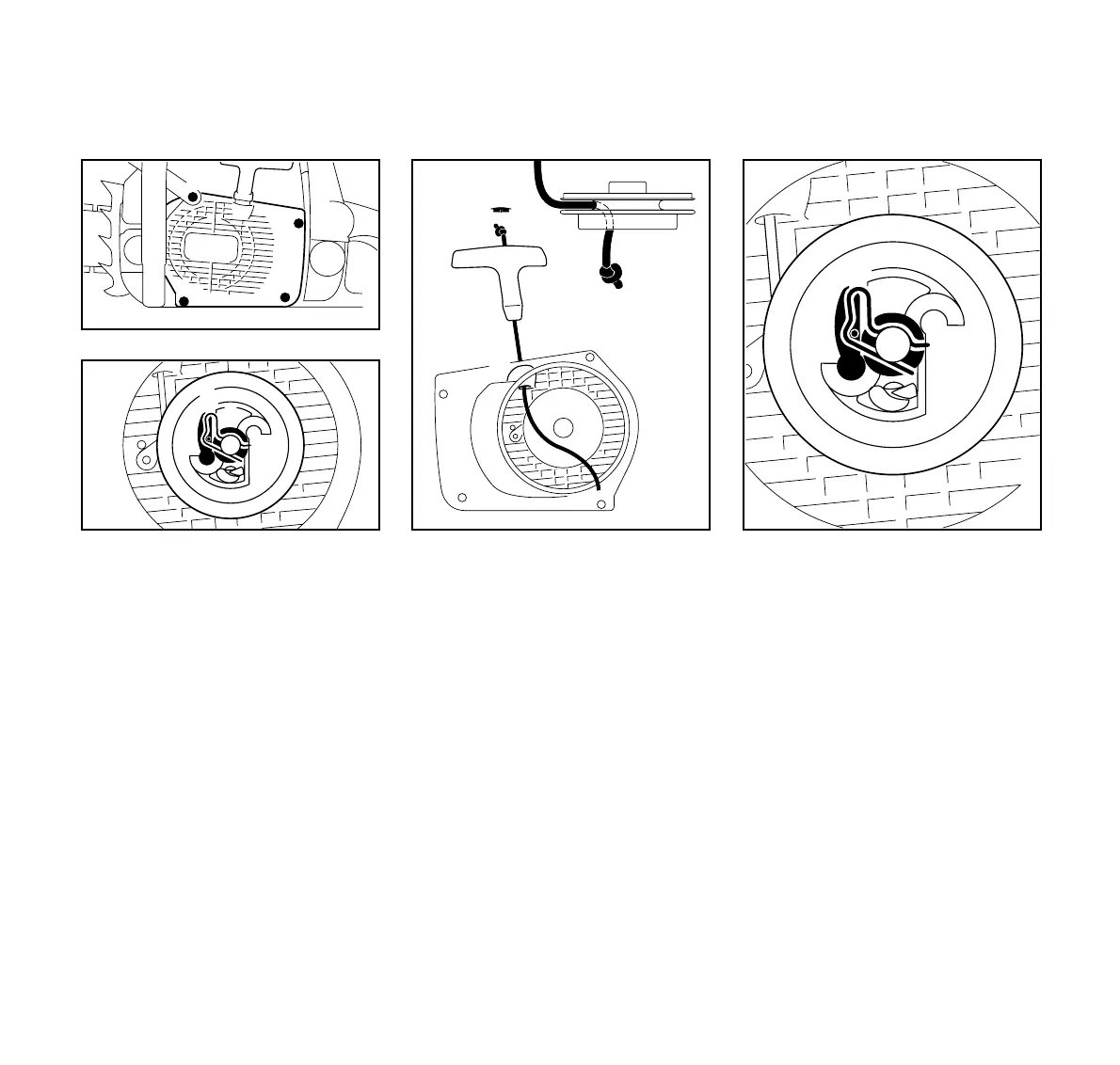

Replacing the starter rope
: Remove the screws (1).
: Push the hand guard up.
: Pull underside of fan housing away
from crankcase and remove it
downward.
: Ease the spring clip (2) off the
starter post.
: Carefully remove the rope rotor with
washer (3) and pawl (4).
The rewind spring may pop out and
uncoil during this operation.
: Ease the cap (5) out of the starter
grip.
: Remove remaining rope from the
rotor and grip – make sure the
sleeve is not pushed out of the grip.
: Tie a simple overhand knot in the
new rope (see “Specifications”) and
then thread it through the top of the
grip and the rope bush (6).
: Refit the cap in the grip.
: Thread the rope through the rotor
and secure it with a simple
overhand knot.
: Coat rope rotor bearing bore with
non-resinous oil.
: Push the rotor on to the starter post
and turn it back and forth to engage
the rewind spring’s anchor loop.
: Fit the pawl (1) in the rotor.
: Fit the washer (2) on the starter
post.
: Use a screwdriver or suitable pliers
to install spring clip (3) on the starter
post and engage it on the pawl's peg
– the spring clip must point
clockwise – see illustration.
Replacing Starter Rope
and Rewind Spring
1
1
1
1
133BA014 KN
2
3
4
133BA015 KN
133BA040 KN
6
5
133BA017 KN
2
1
3
