Stihl MS 260 User Manual

58
English
MS 260
1 Carburetor box cover twist lock
2 Spark plug boot
3 Carburetor adjusting screws
4 Handle heating switch*
5 Chain sprocket cover
6 Chain sprocket
7 Chain brake
8 Adjusting wheel of quick
tensioner*
9 Side chain tensioner
10 Chain catcher
11 Bumper spike
12 Guide bar
13 Oilomatic saw chain
14 Oil filler cap
15 Muffler
16 Front hand guard
17 Front handle (handlebar)
18 Decompression valve
19 Starter grip
20 Fuel filler cap
21 Master Control lever
22 Throttle trigger
23 Throttle trigger interlock
24 Rear handle
25 Rear hand guard
* see "Guide to Using this Manual"

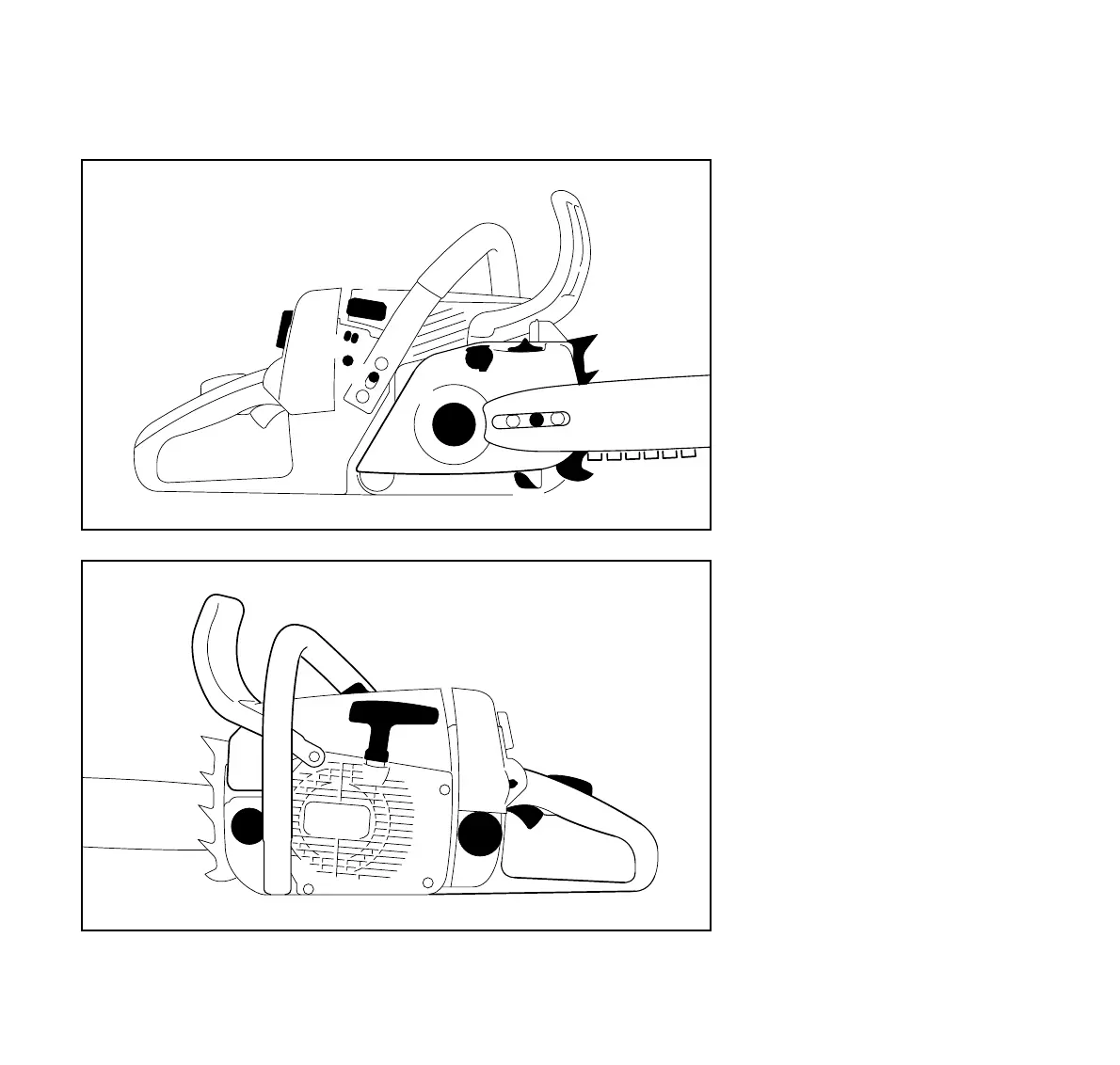

Main Parts of the Saw
13
10
11
3
2
1
133BA038 KN
4
5
6
7
8
9
12
14
16
17
18
19
20
21
23
25
15
24
22
133BA039 KN

Stihl MS 260 Specifications

General

Engine Power	2.6 kW
Power output	3.5 bhp
Chain pitch	3/8"
Bar Length	40 cm
Fuel Capacity	460 ml
Oil Capacity	200 ml
Fuel tank volume	460 ml
Oil tank volume	200 ml
