Stihl MS170 User Manual

MS 170, MS 170 C, MS 180, MS 180 C
English
26

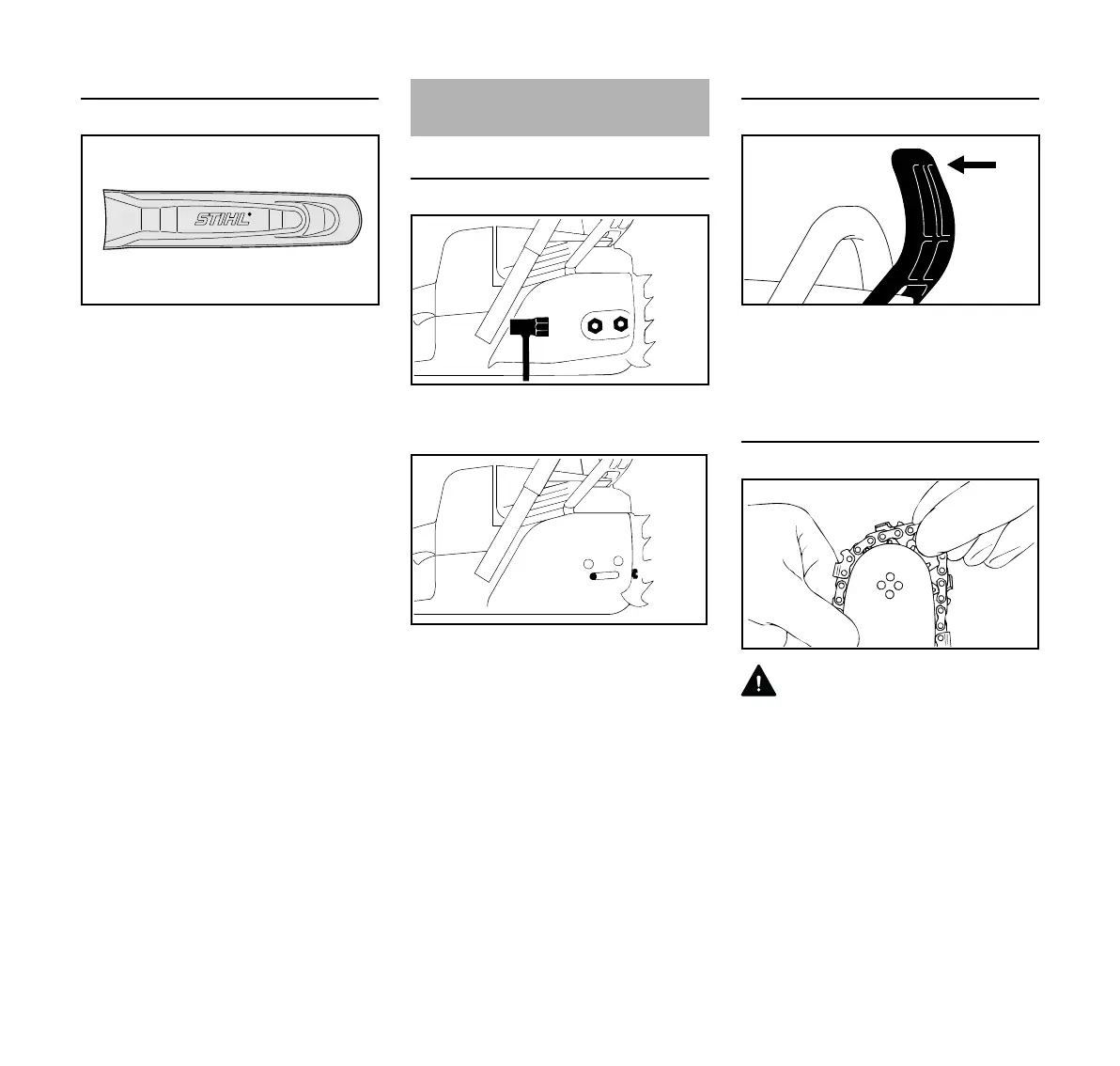

Chain scabbard
Your saw comes standard with a chain
scabbard that matches the cutting
attachment.
If you use guide bars of different lengths
on the saw, the length of the chain
scabbard must be matched to the guide
bar to reduce the risk of injury. It should
cover the full length of the guide bar.
The length of the matching guide bars is
marked on the side of the chain
scabbard.
Removing the chain sprocket cover
N Unscrew the nut and remove the
chain sprocket cover.
N Turn the screw (1)
counterclockwise until the
tensioning nut (2) butts against the
left end of the housing slot.
Disengage the chain brake.
N Pull the hand guard towards the
front handle until there is an audible
click – the chain brake is
disengaged.
Fitting the chain
WARNING
Wear work gloves to protect your hands
from the sharp cutters.
N Fit the chain – start at the bar nose.
001BA244 KN
Mounting the Bar and Chain
(front chain tensioner)
143BA034 KN
1
2
207BA009 KN
001BA186 KN
143BA003 KN

Stihl MS170 Specifications

General

Displacement	30.1 cc
Powerhead Weight	3.9 kg (8.6 lbs)
Sound Pressure Level	100 dB(A)
Engine Power	1.7 bhp
Weight	8.6 lbs
Fuel Capacity	8.5 oz
Chain Oil Capacity	145 ml (4.9 fl oz)
Oilomatic Chain Pitch	3/8 in
Chain Pitch	3/8 in
Guide Bar Length	30-35 cm (12-14 in.)
