12
English
Cleaning Systems Safety Manual

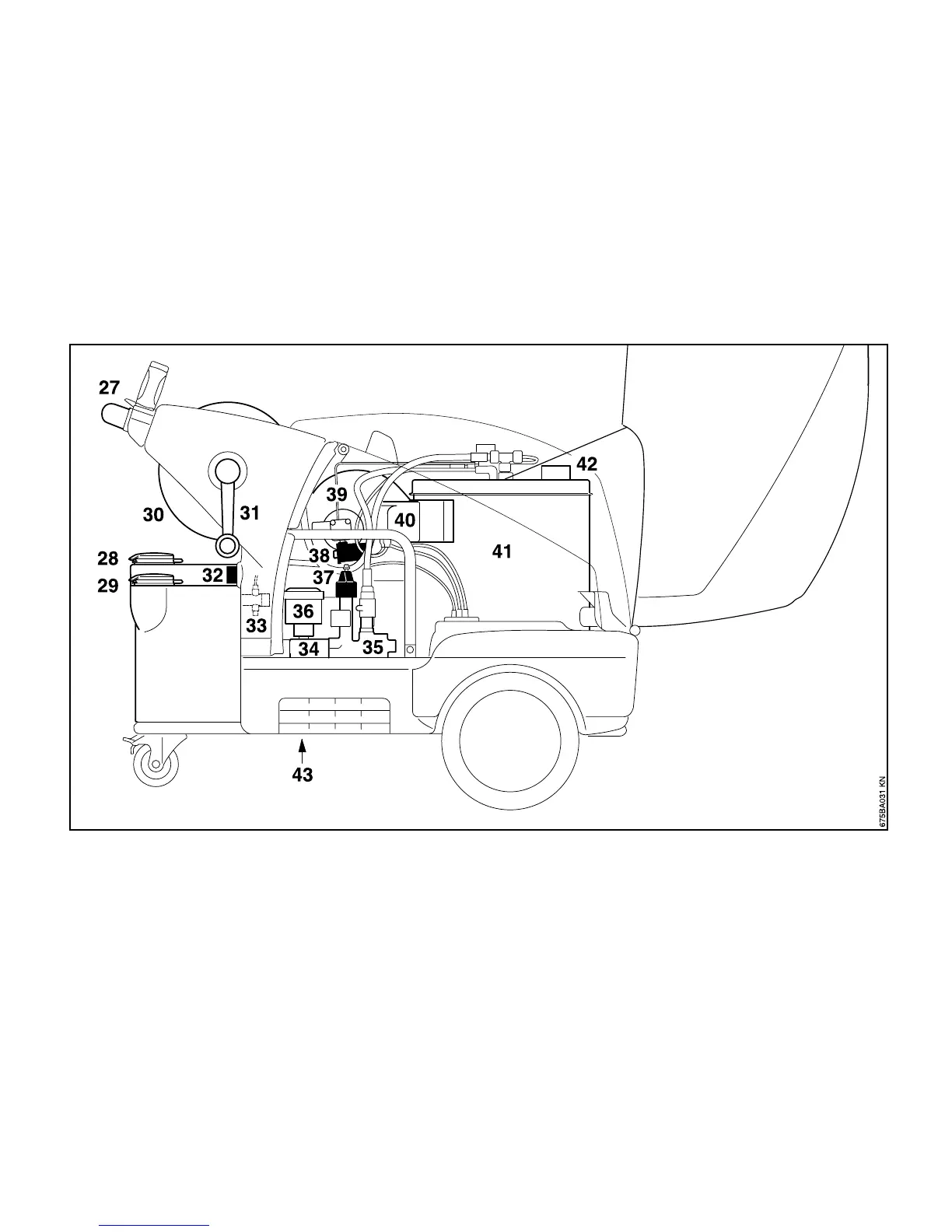

27 Push handle
28 Filling port for scale inhibitor
29 Filling port for antifreeze
30 Hose reel
31 Crank handle for hose reel
32 High-pressure hose connection
(machines without hose reel)
33 Metering valve for scale inhibitor
34 High-pressure pump
35 Safety valve block
36 Expansion tank for oil
37 Rotary knob for working pressure
38 Fuel filter
39 Fan for combustion air
40 Ignition transformer
41 Heat exchanger
42 Exhaust outlet
43 Oil drain plug
