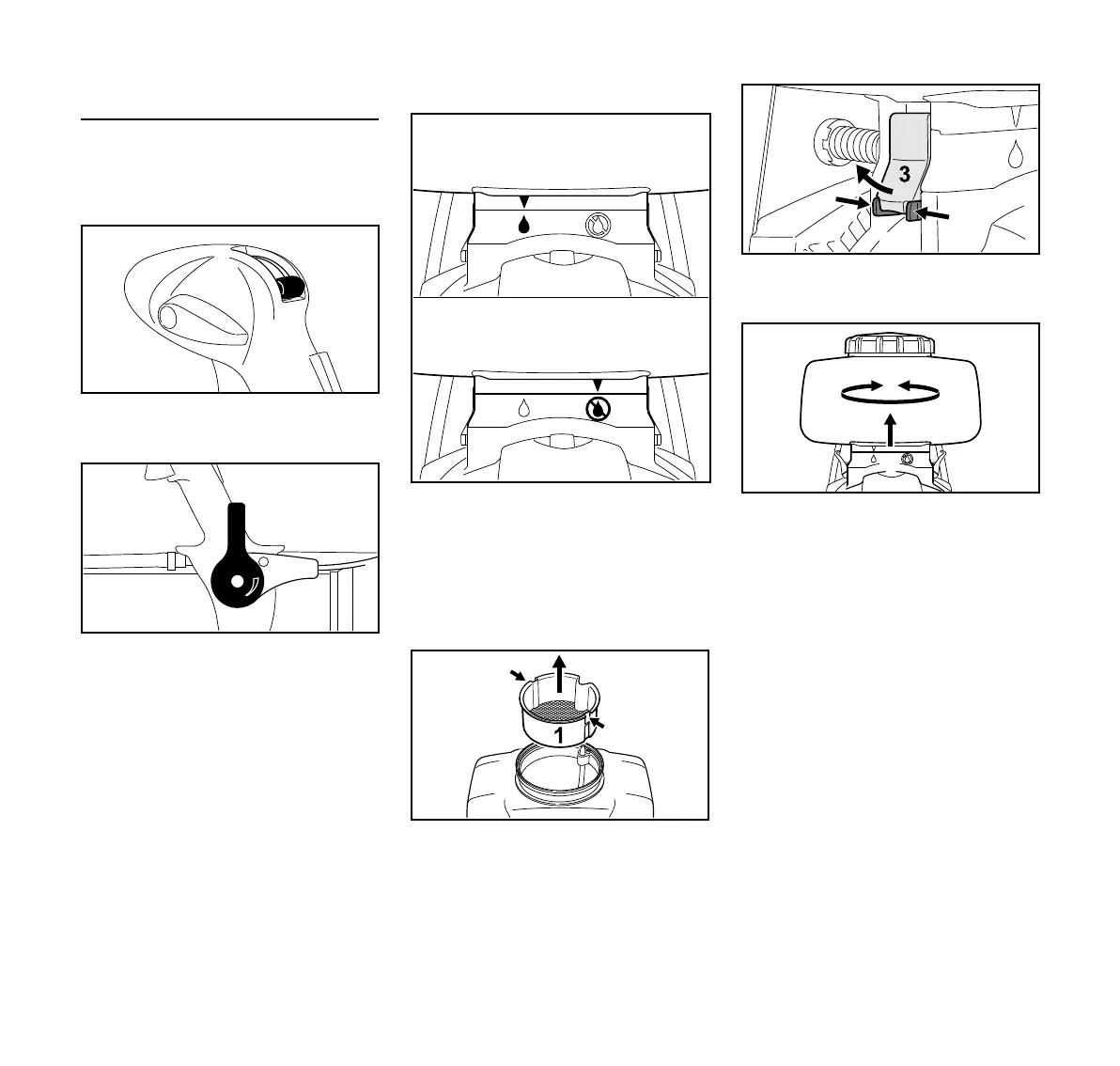

Conversion from mistblowing to dusting
and spreading mode
N Empty and clean the solution
container – see "After Finishing
Work".
N Close valve lever (1) for solution
feed.
N Close the metering lever (2) for
dusting and spreading mode.
Container
The selected operating mode is
indicated by the symbols on the
metering unit's housing.
N Position A – Mistblowing mode
N Position B – Dusting and spreading
mode
N Insert a suitable tool (e.g.
screwdriver) in the two recesses
(arrows) to loosen the strainer (1).
N Pull the strainer (1) upward and out
of the solution container.
N Squeeze the tabs (2) together and
pull the lever (3) outwards.
N Remove the solution container from
the metering unit's housing (4) and
turn it to position B (dusting and
spreading mode).
