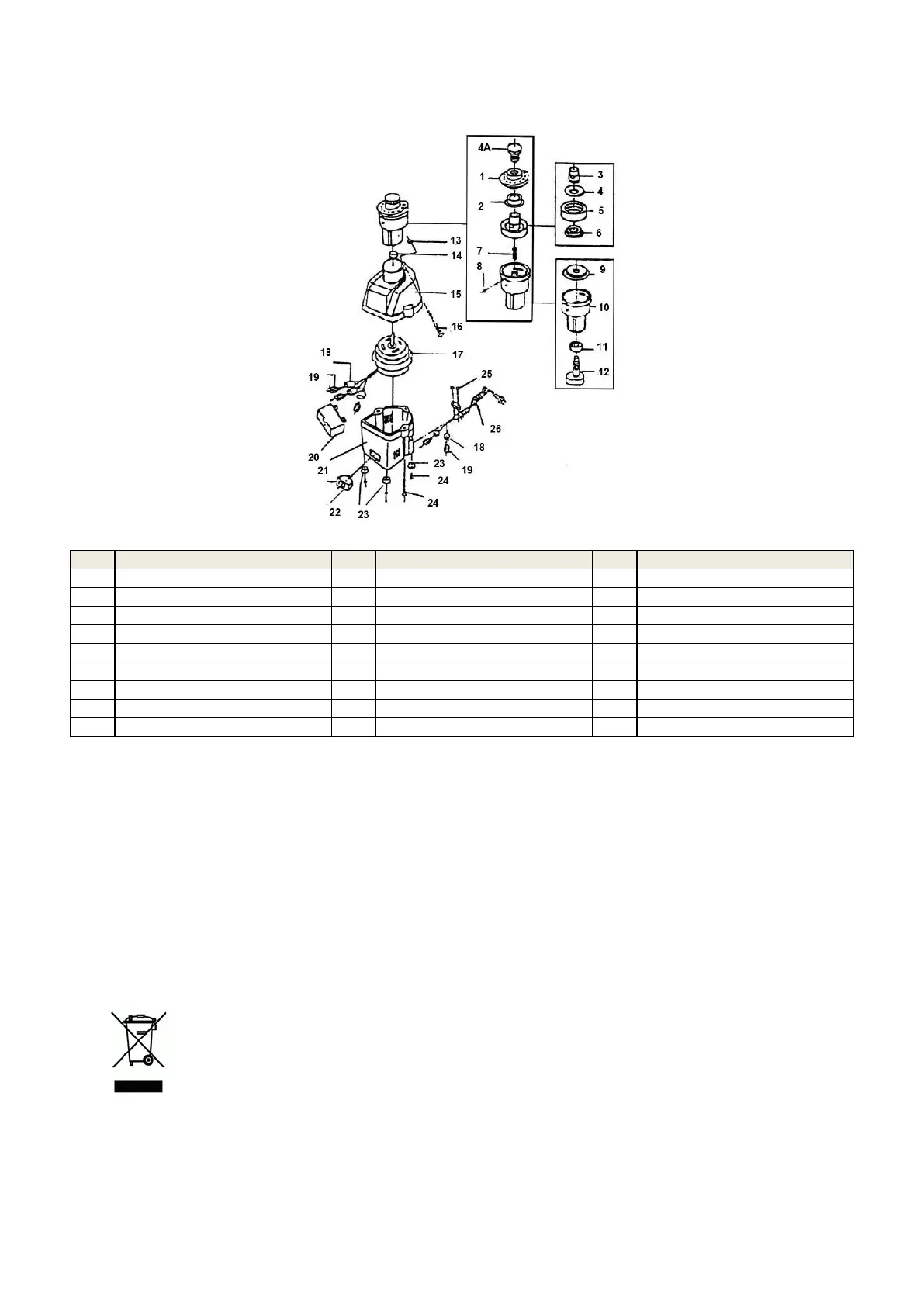

6. Exploded view parts list
NO.
Description
NO.
Description
NO.
Description
4A
Adjustment wheel
9
Wheel cover
18
Insulation
1
Split head
10
Wheel support
19
Terminals
2
Protection ring
11
Ball bearing
20
Capacitor
3
Adjusting cylinder
12
Drive pin
21
Lower housing
4
Washer
13
Nut
22
Switch
5
Grinding wheel
14
Adapter
23
Screw
6
Centre to centre
15
Upper housing
24
Connection cable
7
Spring
16
Bolt
25
Rubber feet
8
Screw
17
Engine
26
Screw
7. Product Warranty and Compliance
Warranty cannot be granted as a result of:
Abnormal use, improper handling, unauthorised modification, lack of transport, handling or
maintenance, use of non-genuine parts or accessories, work carried out by unauthorised personnel,
lack of protection or device securing the operator, failure to comply with the above instructions excludes
your machine from our warranty, the goods travel under the responsibility of the purchaser to whom it is
responsible to exercise any recourse against the carrier in legal forms and deadlines. Please refer to
our Terms and Conditions of Sales for warranty claims.
Environmental protection:
Your device contains many recyclable materials.
We remind you that used appliances must not be mixed with other waste. Electrical products
should not be disposed of with household waste. Please recycle them at the designated
collection points. Contact your local authorities or dealer for recycling advice.
