Installation (Cont.)

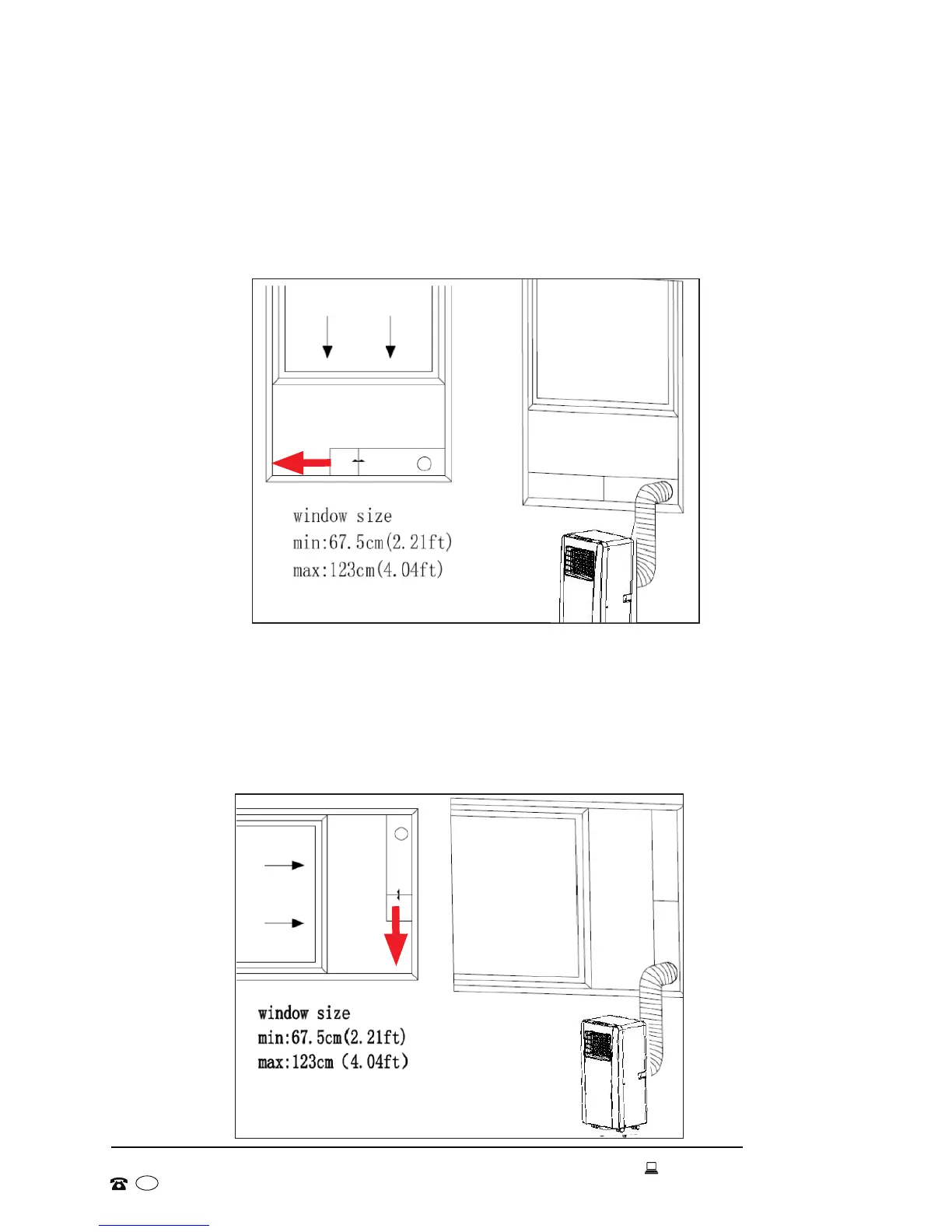

Horizontally opening window (Fig. 7)
• Adjust the window slider to the length of a horizontally opening window.
• Fit the slider to the bottom of the window sill, then close the window.
• Fit the exhaust hose connector (window end) through the opening to the
outside.
Vertically opening window (Fig. 8)
• Adjust the window slider to the height of a vertically opening window.
• Fit the slider to the side of the window, then close the window.
• Fit the oval exhaust hose connector (window end) through the opening to
the outside.
Fig. 8
Fig. 7
