Clearances required
This appliance is to be built into a kitchen unit (depending on size) or 600mm
worktop, providing the following minimum distances are allowed:
• The edges of the cooktop must be a minimum distance of 55mm from a
side or rear wall.
• 700mm between the highest point of the cooktop surface (including the
trivets) and the underside of any horizontal surface directly above it.
• 400mm between the cooktop surface, providing that the underside of
the horizontal surface is in line with the outer edge of the cooktop. If the
underside of the horizontal surface is lower than 400mm, then it must be
at least 50mm away from the outer edges of the cooktop.
• 50mm clearance around the appliance and between the cooktop surface
and any combustible materials.
• Fire resistant materials (such as ceramic tiles) are required up to 450mm
above the burner top.
Installation (Cont.)

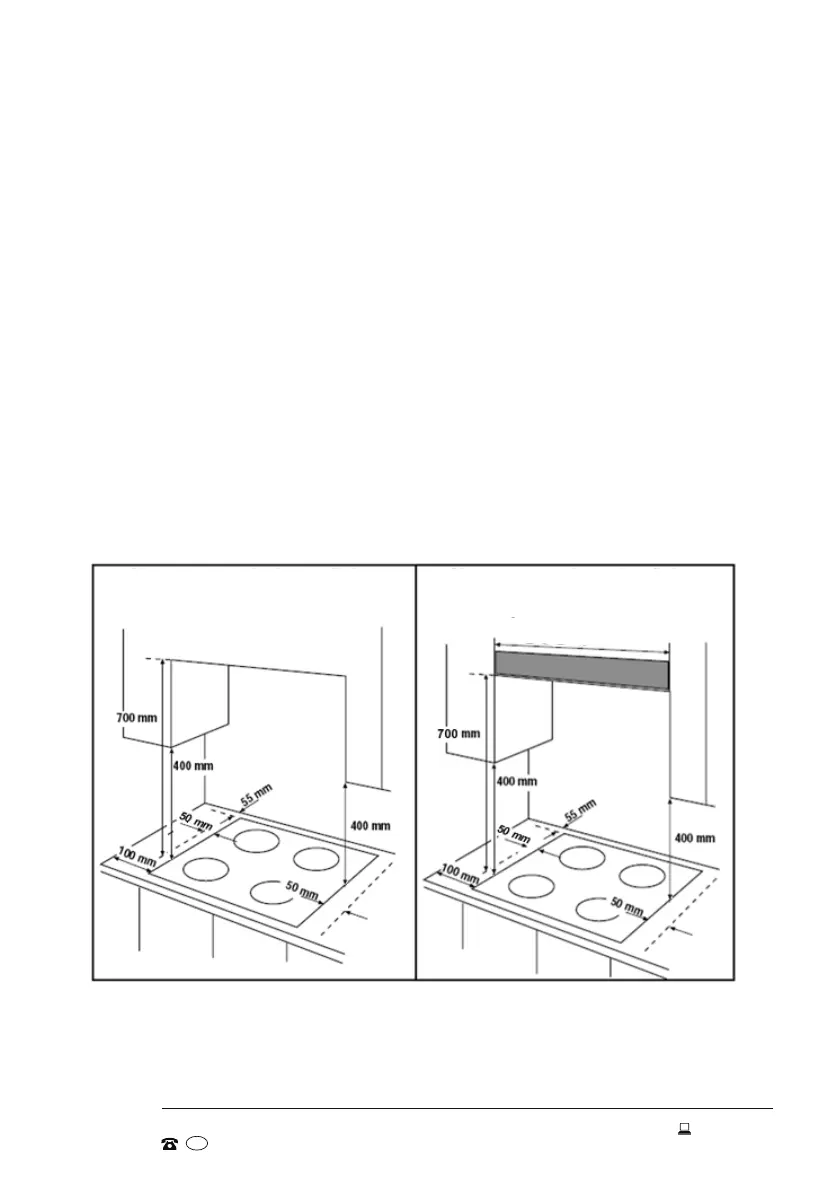

Clearances required when tting the
cooktop without a rangehood.
Clearances required when tting the
cooktop with a rangehood.
*
see below
Rangehood
Fig. 1
