Benchtop preparation
• The cooktop (or hob) can be fitted to any benchtop with a thickness of

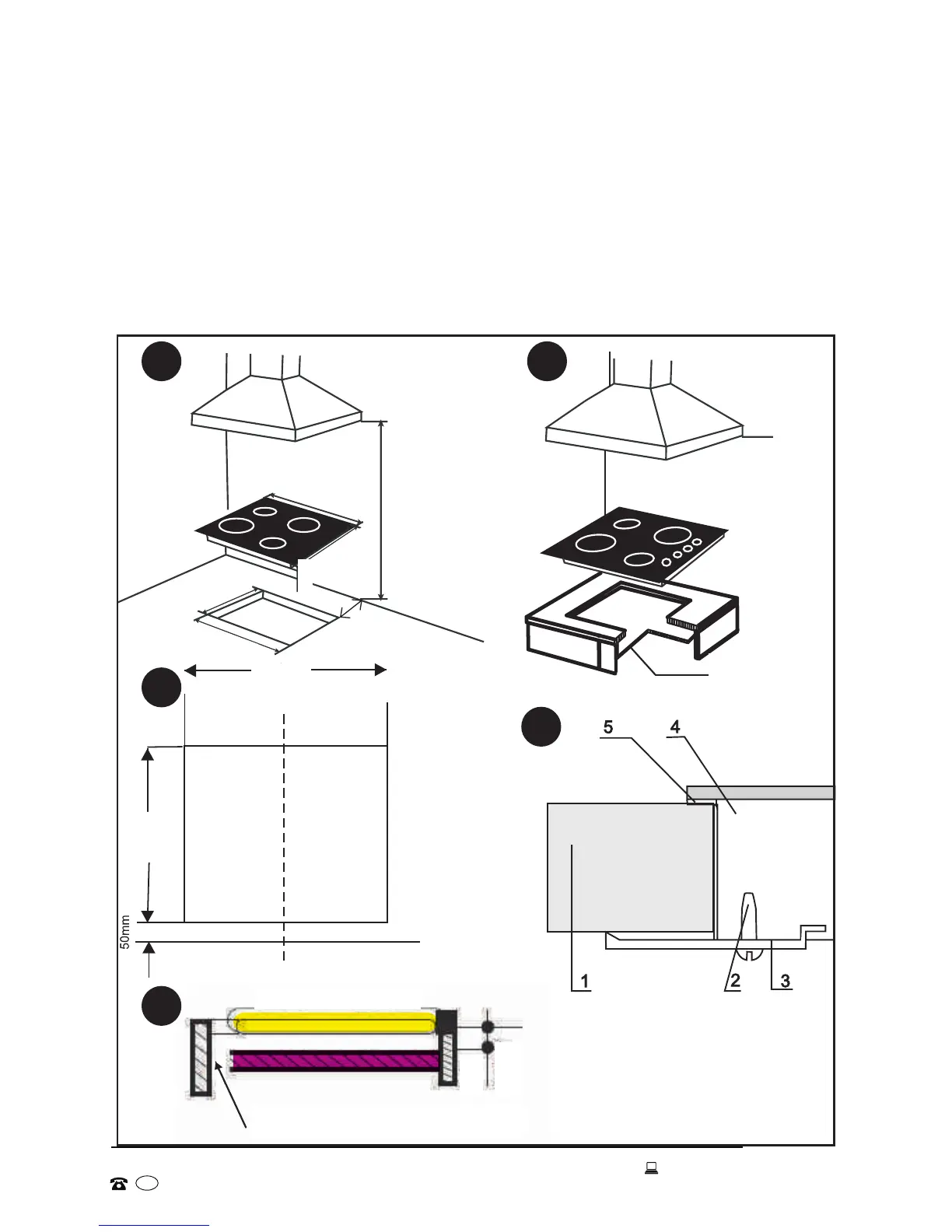

40-50mm. To install the cooktop on your benchtop, make an opening
with the dimensions given in Fig. 1 below.
• To avoid a hazard due to high surface temperatures, access to the
underside of the hob must be restricted. This can be done via a board as
per “E” in Fig. 1 below
Installation (Cont.)
1 Benchtop
2 Screw
3 Bracket
4 Hob
5 Hob seal
Ventilation slot must be between 30mm
and 70mm, and cannot exceed 70mm.
50mm
MIN
od block
Fig. 1
0
≥750mm
5
8
0
m
m
4
9
mm
68mm
Wood block
564mm
494mm
580mm
510mm
68mm
200mm
≥750mm
A
C
E
B
D
494mm
564mm
