385
Repairing the knitting machine 7
Replacing parts

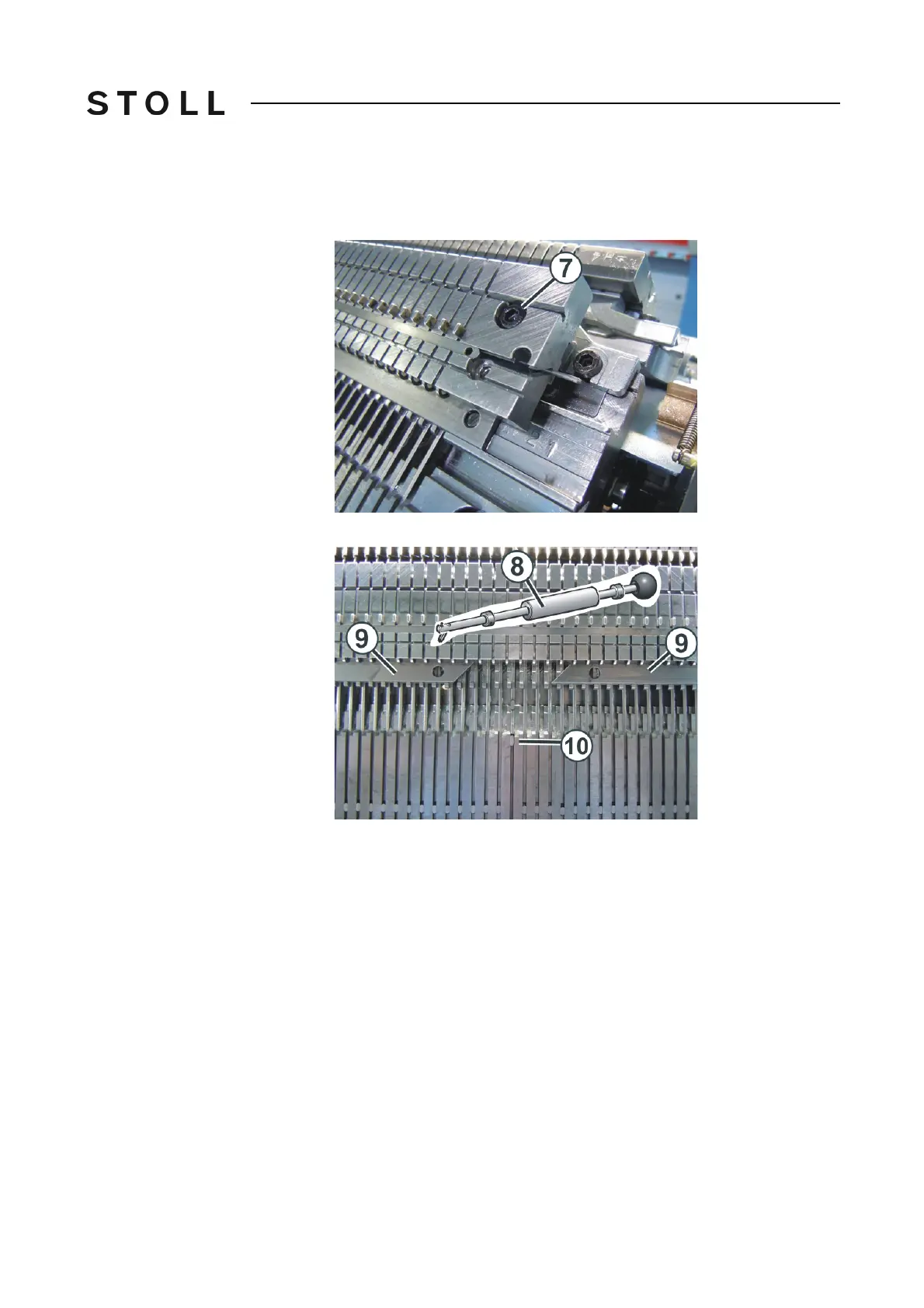

6. Loosen the screw (7) on the left and right-hand sides of the jack bed.
The needle rail is relieved.
7. With the extraction hook (8) push the needle rail (
9) to the side.
8. Pull the needle upwards, the coupling part will be
pulled upwards with it as
well.
9. When the foot of the coupling part is in position (10), press the coupling
part some
what into the needle bed (small knitter's hook, pliers). Pull out
needle upward.
