Stone S-20 - Stone Forward Plates Specifications

- 8 -
STONE
S52
220#
(100)
21" x 24"
(53 x 61)
5 hp Briggs I/P
(3.7)
4.6 hp Robin
(3.4)
5 hp Honda
(3.7)
4.2 hp Yanmar
Diesel
(3.1)
no
–
5100# **
(22.70)
13,650 ft.
(1268)
14" (35.5)
130' / Min.
(40)
5400
(90)
Lifting Eye
1 year
2 year eccentric
bearing
STONE
S28A
160#
(72)
19" x 24"
(48 x 61)
5 hp Briggs I/P
(3.7)
4.6 hp Robin
(3.4)
5.5 hp Honda
(4.1)
4.2 hp Yanmar
Diesel
(3.1)
yes
6 qt.
(5.7)
3000# **
(13.35)
7,125 ft.
(662)
10" (25.4)
75' / Min.
(23)
5800
(97)
Lifting Eye
1 year
2 year eccentric
bearing
STONE
S38A
190#
(86)
20 x 24
(51 x 61)
5 hp Briggs I/P
(3.7)
4.6 hp Robin
(3.4)
5.5 hp Honda
(4.1)
4.2 hp Yanmar
Diesel
(3.1)
yes
6 qt.
(5.7)
4000# **
(17.80)
10,000 ft.
(929)
12" (30.5)
100' / Min.
(30.5)
5000
(83)
Lifting Eye
1 year plate
2 year eccentric
bearing
STONE
S52T
170#
(77)
14" x 24"
(36 x 61)
5 hp Briggs I/P
(3.7)
4.6 hp Robin
(3.4)
5.5 hp Honda
(4.1)
no
–
5100# **
(22.70)
9,100 ft.
(845)
14" (35.5)
130' / Min.
(40)
5400
(90)
Lifting Eye
1 year
2 year eccentric
bearing
STONE
S66
330#
(150)
23" x 28"
(58 x 71)
7.5 hp Robin
(5.6)
11 hp Honda
(8.2)
no
–
6900# **
(30.70)
15,000 ft.
(1394)
20" (51)
90' / Min.
(27)
4500
(90)
Lifting Eye
1 year
2 year eccentric
bearing
STONE
S38
180#
(82)
20 x 24
(51 x 61)
5 hp Briggs I/P
(3.7)
4.6 hp Robin
(3.4)
5.5 hp Honda
(4.1)
4.2 hp Yanmar
Diesel
(3.1)
no
–
4000# **
(17.80)
10,000 ft.
(929)
12" (30.5)
100' / Min.
(30.5)
5000
(83)
Lifting Eye
1 year plate
2 year eccentric
bearing
STONE
S28
150#
(68)
19" x 24"
(48 x 61)
5 hp Briggs I/P
(3.7)
4.6 hp Robin
(3.4)
5.5 hp Honda
(4.1)
no
–
3000# **
(13.35)
7,125 ft.
(662)
10" (25.4)
75' / Min.
(23)
5800
(97)
Lifting Eye
1 year
2 year eccentric
bearing
MODEL
Dimensions
Operating Weight
(kg)
Plate Size - W X L
(cm)
Operating System
Engine Options
(kw)
Water System
Water Tank Cap.
(liters)
Performance
Eccentric Force
(Kn)
Productivity (sq.ft./hr)
(sq.m/hr)
Max. Lift (cm)
Max. Travel Speed
(m/min)
Vibration Frequency
(Hz)
Features
Warranty
STONE
S20 / S20A
130#
(59)
13" x 21"
(33 x 53.3)
4 hp Honda
(3.0)
yes (on S20A)
3.25 qt.
(3.1)
2000#
(8.9)
3,750 ft.
(348)
12" (30.5)
75' / Min.
(23)
5800
(97)
Lifting Eye,
Folding Handle
1 year
2 year eccentric
bearing

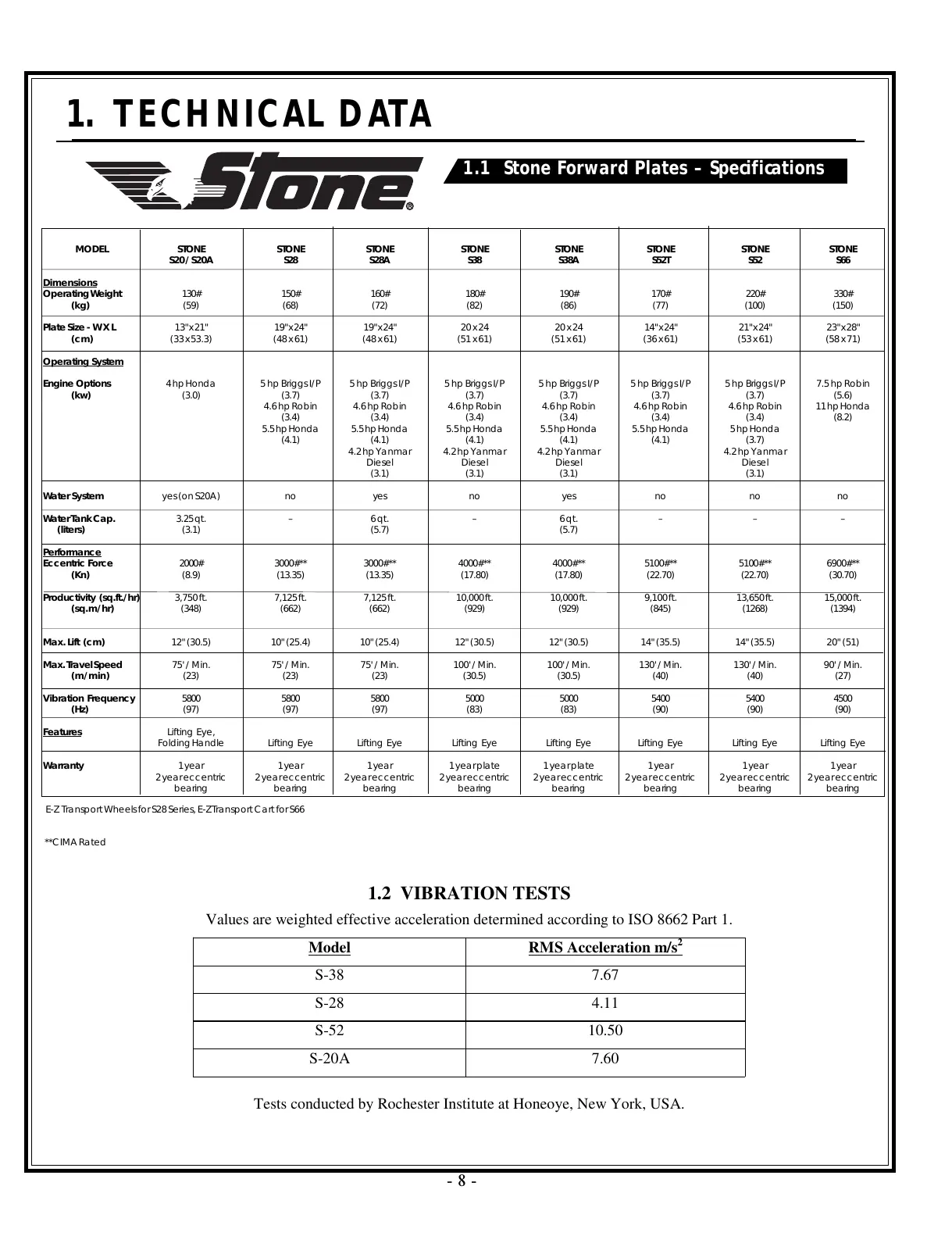

1.1 Stone Forward Plates – Specifications
1. TECHNICAL DATA
**CIMA Rated
E-Z Transport Wheels for S28 Series, E-Z Transport Cart for S66
1.2 VIBRATION TESTS
Values are weighted effective acceleration determined according to ISO 8662 Part 1.
Model
RMS Acceleration m/s
2
S-38 7.67
S-28 4.11
S-52 10.50
S-20A 7.60
Tests conducted by Rochester Institute at Honeoye, New York, USA.
