3Interface Description
This chapter contains the description of the interfaces:
- VVC
- NC
- DOUT
- DIN
- GND

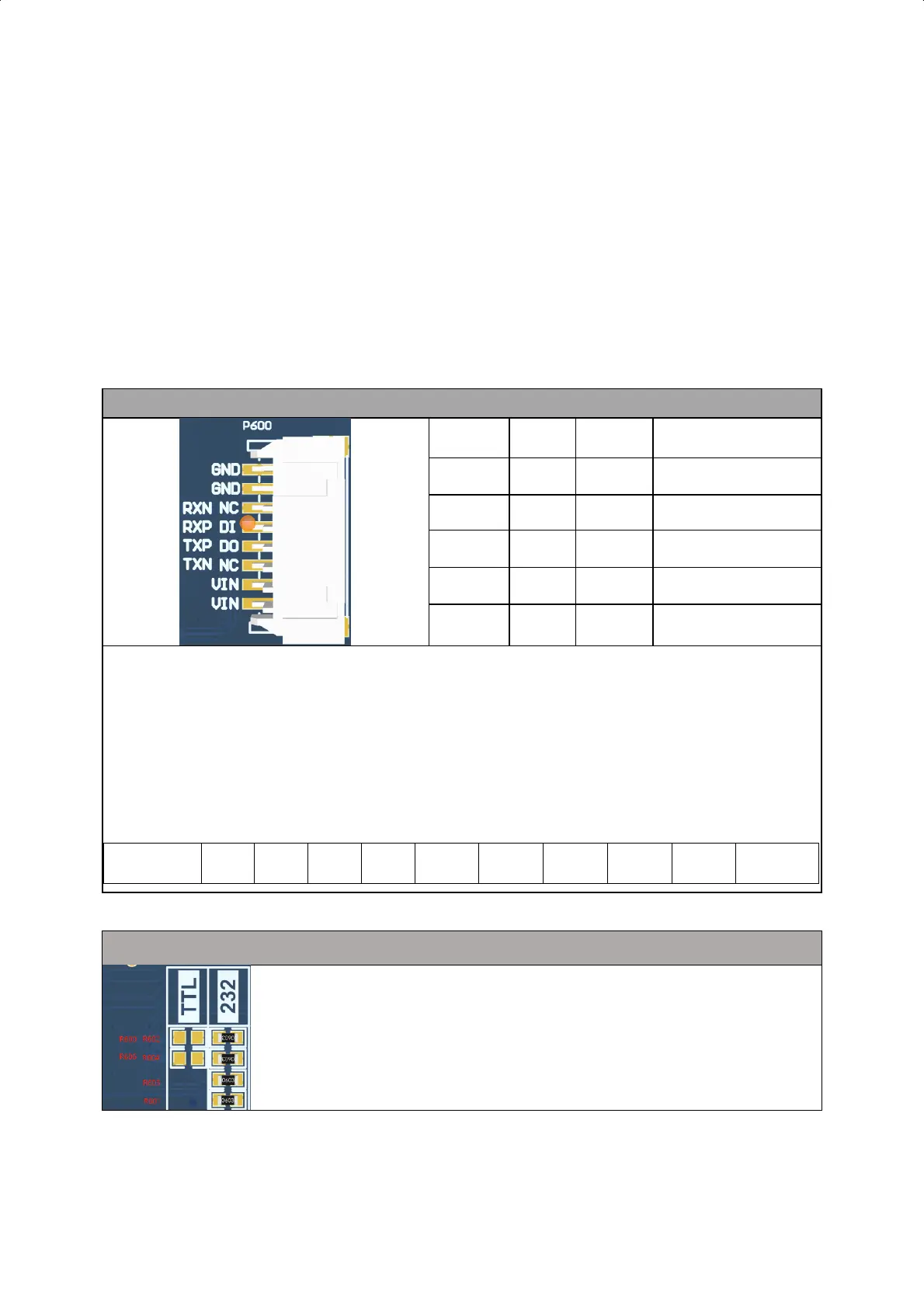

Communication Interface Definition：
Pin
Name
Pin
NO.
Pin
Type
Interpret
GND
1,2
P
Power Ground
DIN
4
I
Data Input
DOUT
5,
O
Data Output
NC
3,6
None
VCC
7,8
P
Power Supply Input
I: Input O: Output P: Power
Note A: 1. Adopting the 8 Pin 2mm spacing socket. Model Code: A2008WR-S-8P.
2. Direction of the signal was defined with TFT-LCD Module;
“I” refers to the signal from the user’s MCU transmitted to the TFT-LCD Module.
3. Pins with the same definition are connected together in the module inside.
4. RS232, RS422, RS485, TTL port can be default which need to point out in the order.
Note B: The selection of Baud rate for the serial interface：
Baud rate
（bps）
1200
2400
4800
9600
19200
38600
57600
115200
921600
1500000
Serial Port Defind:
Note A: RS232 area connect, TTL area disconnect.
TTL area connect, RS232 area disconnect.
Note B: The resistance are 0 Ω with 0603 standard package.
Note C: The welding pad of STWI035WT-01 is on the back of the PCB,
and the black frame needs to be removed .
