22 Appendix B - Fuse Removal
StorCase Technology, Inc. DS100 (U320) User's Guide - Rev. A02
Appendix B - Fuse Removal
WARNING: Remove ALL power from the Data Silo before removing fuse!

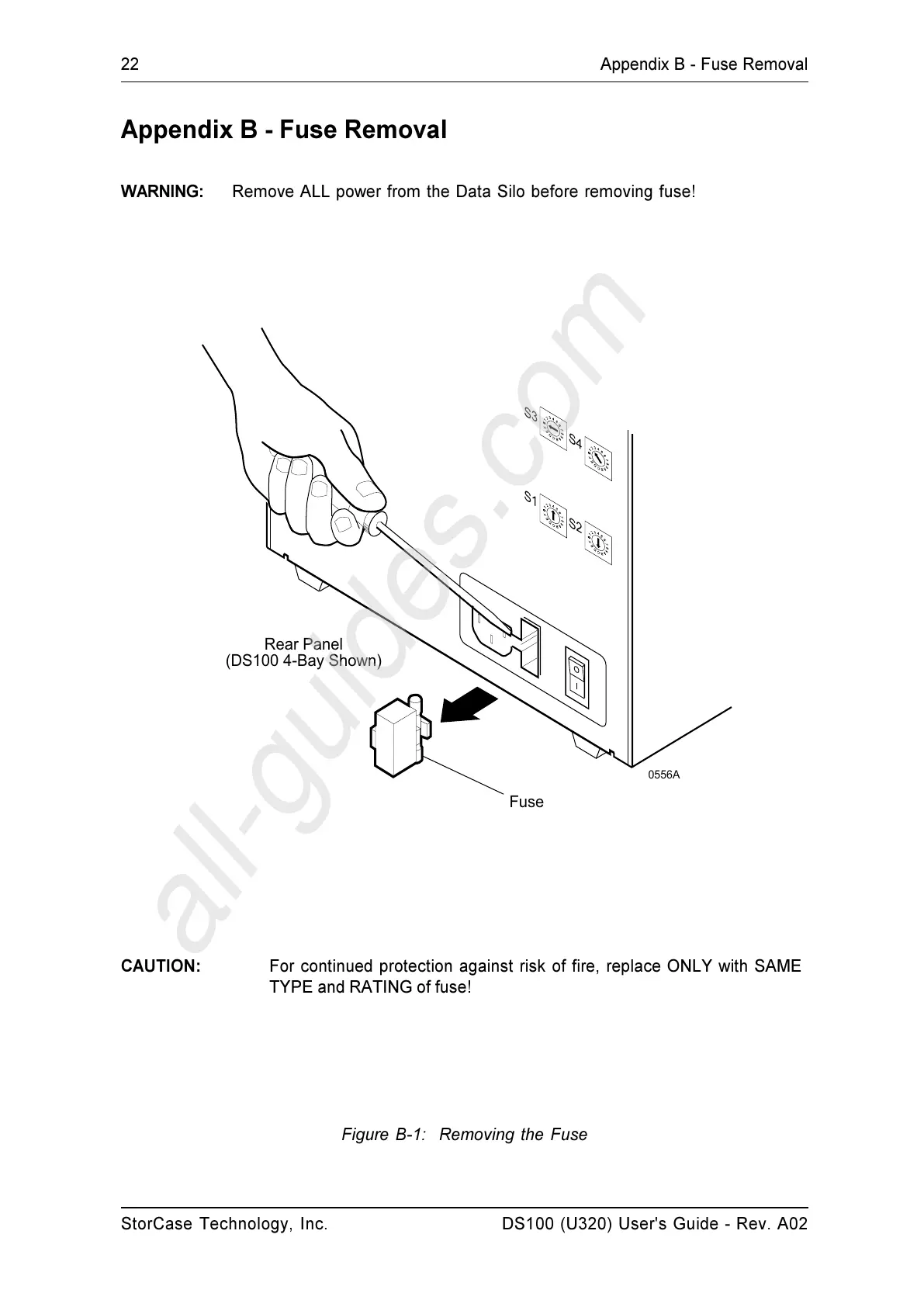

Figure B-1: Removing the Fuse
CAUTION: For continued protection against risk of fire, replace ONLY with SAME
TYPE and RATING of fuse!
S3
S4
S1
S2
Rear Panel
(DS100 4-Bay Shown)
Fuse
0556A
