Storkcraft Alpine - Assembly Step 5: Attaching Drawer Slides (Right); Install Right Drawer Slides (57 R)

5
30
X16
57R
X4
Required/Requis/Requerido
- With 30 (X16),
screw 57R (X 4) into H
- Avec 30 (X16),
visser 57R (X 4) dans H
- Con 30 (X16),
atornillar 57R (X 4) en H

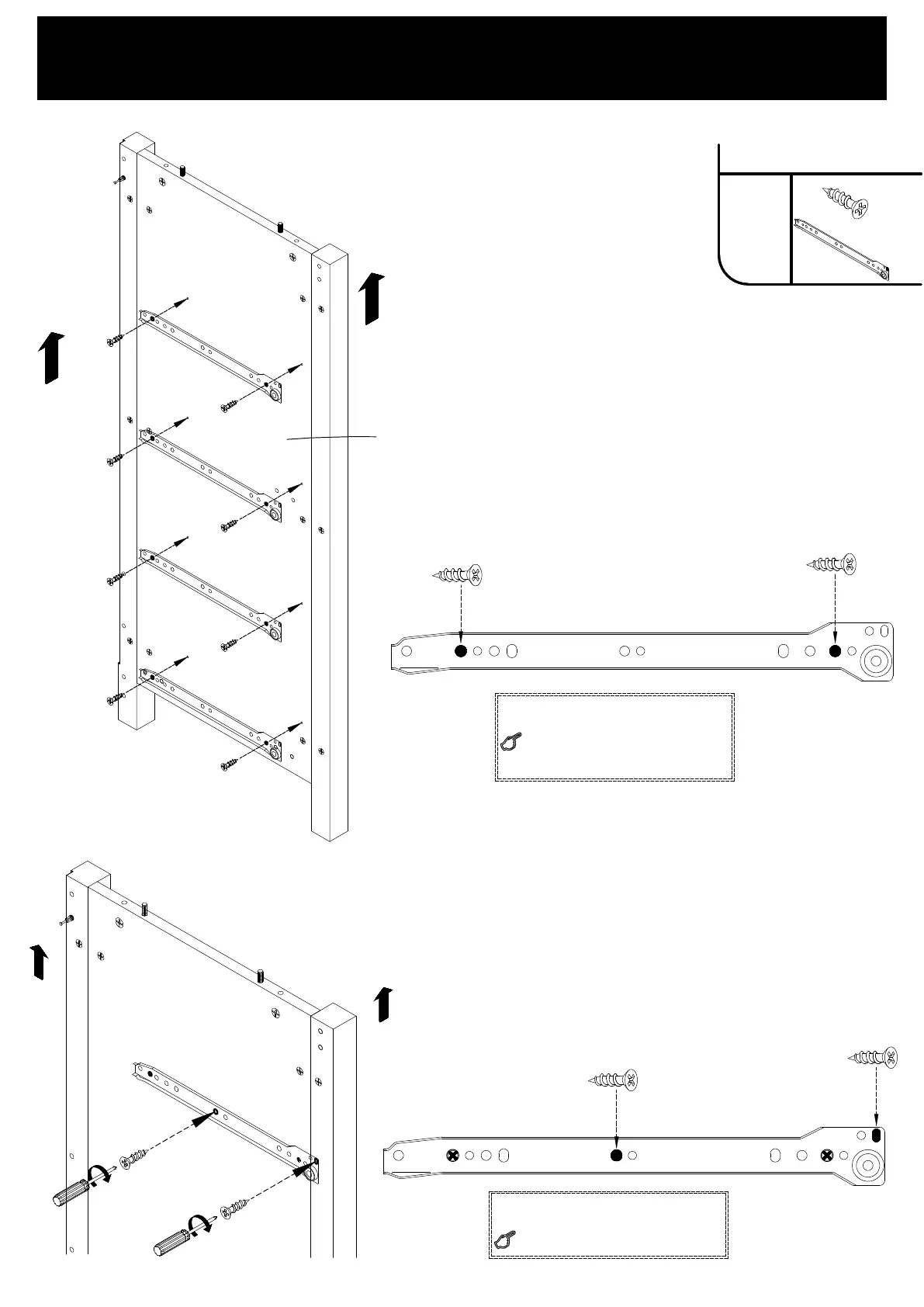

Step 1, install drawer
track using locator holes.
Step 2, install remaining
screws no pre drilled holes.
H
30
30
UP
57R
H
30
30
30
30
30
30
30
30
UP
57R
57R
57R
57R
Required/Requis/Requerido
ASSEMBLY INSTRUCTIONS / INSTRUCTIONS D'ASSEMBLAGE /
INSTRUCCIONES DE ENSAMBLAJE
ATTENTION!!
STEP 1 - USE THESE TWO
LOCATOR HOLES TO POSITION
DRAWER TRACK.
ATTENTION!!
STEP 2 - INSTALL REMAINING
SCREWS, NO PRE-DRILLED HOLES.
30
Step 1
Step 1
30
57R X 4
57R X 4
UP
Step 2
30
Step 2
30
UP
13
