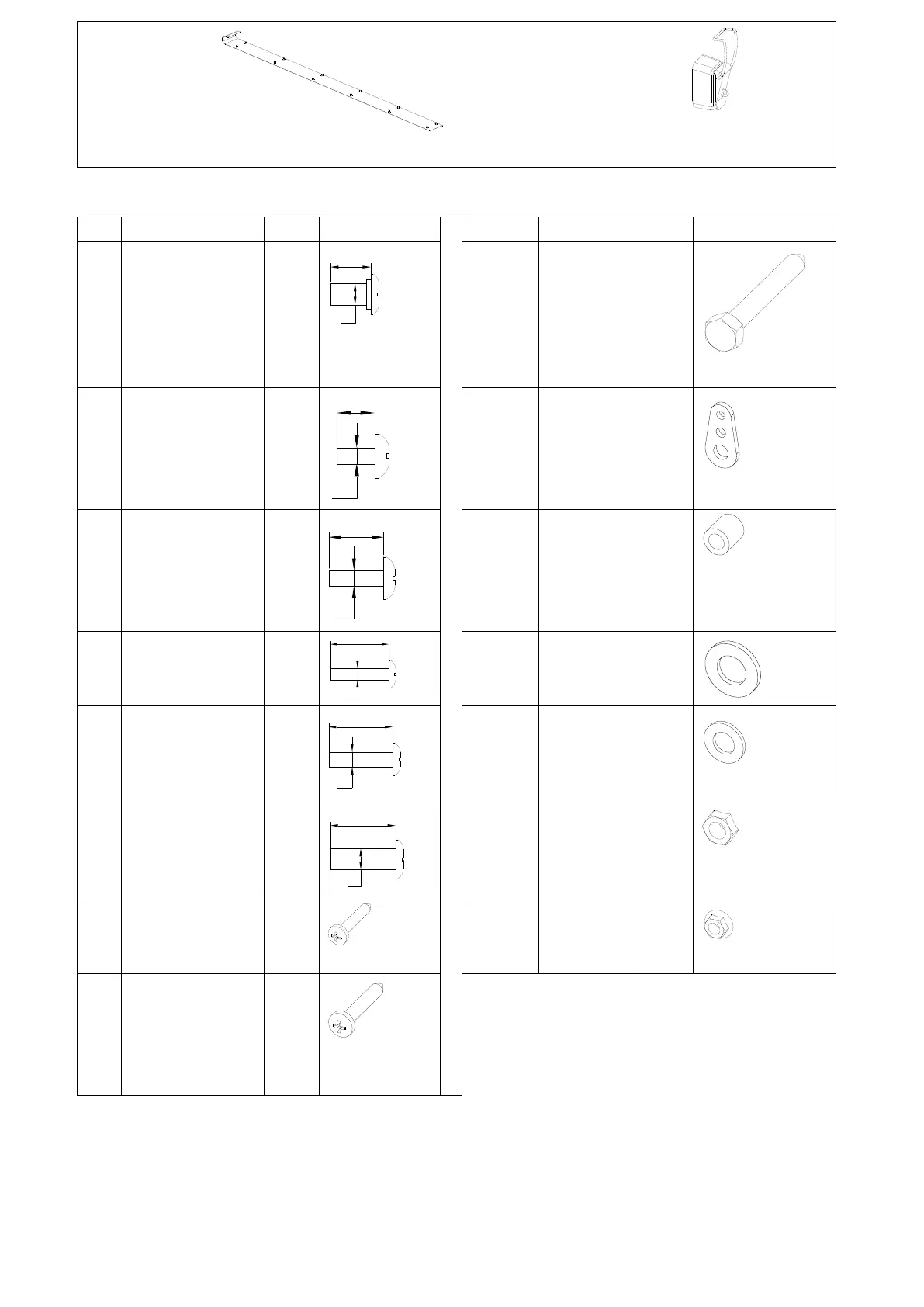

Storm Shell 55 - Fastener Details; Screw, Nut, and Washer Specifications

12
4. Middle Connecting Plate 1 pc
5. Buckle Latch 4 sets
Screws :
No.
Name
QTY
No.
Name
QTY
S1
M8X15 Screw
4
S9
ST8.0X60
Lag Bolt
NOT USED
IN POLE
MOUNT
ASSEMBLY
4
S2
M4X8 Screw
8
W1
3-hole
Washer
4
S3
M4X14 Screw
10
W2
Thick
Washer
4
S4
M5X25 Screw
4
W3
D8 Washer
8
S5
M6X25 Screw
4
W4
D6 Washer
2
S6
M8X25 Screw
4
N1
M8 nut
4
S7
ST3.5X20 Self
Tapping Screw
12
N2
M4 flange
nut
22
S8
ST6X30 Self
Tapping Screw
NOT USED IN
POLE MOUNT
ASSEMBLY
4
15
M8
8
M4
14
M4
25
M5
M6
25
25
M8
